8W 1064nm IR Q-switch Laser For Marking

8W 1064nm IR Q-switch Laser For Marking thumbnail-1
8W 1064nm IR Q-switch Laser For Marking photo-1
US$ 710 - 710 MOQ: 3 Units
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Contact Supplier Request Quote Chat Now
Changchun New Industries Optoelectronics Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Product Description
FL-1064nm-8W series laser combination of both DPSS and fiber technology, has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in laser marking, engraving on the diamond, metal, Steel, IC, Plastics, and also in scientific research.If other marking light sources are required, please click here.
Features
40kW peak power, higher than ordinary fiber laser marking machine
7ns short pulse duration, short acting time, low heat effect
Small volume can match with market mainstream rack
Scientific research quality standard, <1% power stability
Industrial product flow, 12 quality inspection procedures, stable and reliable product quality
Specification
Specifications for 1064nm Laser for marking metal
Modle
FL-1064-8W
Wavelength (nm)
1064±1
Average power (W)
8
Single pulse energy (mJ)
~300
Pulse duration (ns)
~7
Peak power (kW)
~40
Rep. rate (Hz)
~25kHz, Suitable for the applications of needing high peak power
Power stability (rms)
<1%, <2%,<3%,<5%
Transverse mode
TEM00
Beam divergence, full angle (mrad)
<1.2
Beam diameter at the aperture (1/e2 , mm)
~7
Warm-up time (minutes)
<10
Beam height from base plate (mm)
16.5
Operating temperature (℃)
0~35
Power supply (12VDC)
PSU-FL-FDA ( switching power supply 12V/25A DC, choosed, )
Expected lifetime (hours)
20000
Warranty period
1 Year
Certifications

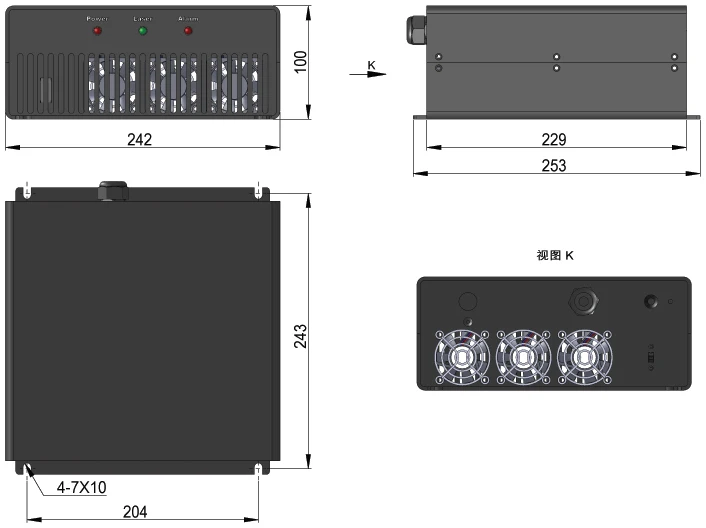

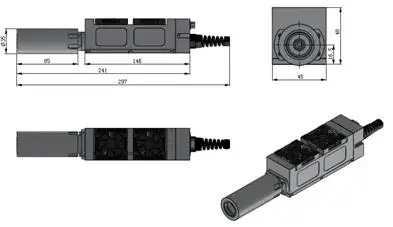

Dimensions

FL-1064-8W Laser Head and Power Supply

297(L)×45(W) ×48(H) mm3, 0.7 kg 253(L) ×242(W) ×100(H) mm3, 3.6 kg
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include UV laser, blue laser, green laser, yellow laser, red laser, infrared laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
