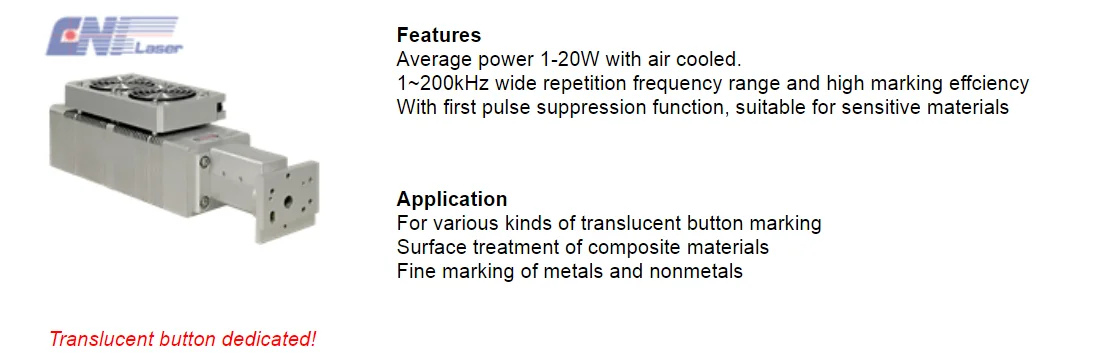

Help Center20w 1064nm IR Laser Marking Source For Button Marking
Related Products
-
355nm UV Laser Marking Source for PlasticUS$ 3,500 - 3,500MOQ: 3 Units -
30KW CNC Portable Laser Marking Machine For MetalUS$ 1,800 - 1,800MOQ: 1 Piece
-
1064nm Q-switch Pulsed Metal Marking LaserUS$ 840 - 840MOQ: 1 Unit
-
1064nm Laser MarkingUS$ 800 - 800MOQ: 1 Unit
-
10W 1064nm IR Pulsed Marking Laser SourceUS$ 760 - 760MOQ: 3 Units
Specifications for 1064nm Laser marking |
||||||
Wavelength (nm) |
1064±1 |
|||||
Work pattern |
Q-switched |
|||||
Model |
AO-I-1064 |
FL-532-3W |
||||
Average output power (W) |
~20W |
~6W |
||||
Max. Single pulse energy (µJ) |
~800 |
|||||
Pulse width (ns) |
~8ns |
~8ns |
||||
Peak power (kW) |
~100kW |
|||||
Pulse repetition rate (kHz) |
10~200kHz (can be adjust by external control) |
|||||
Power stability (rms, over 8 hours) |
<1%,<3%,<5% |
|||||
Transverse mode |
TEM00 |
|||||
Warm-up time (minutes) |
<10 |
|||||
Beam divergence, full angle (mrad) |
<1.0mrad |
<2mrad |
||||
Beam diameter at aperture (mm) |
~4.0mm |
|||||
Beam height from base plate (mm) |
113mm |
|||||
Operating Temp. (℃) |
15-35℃ |
|||||
Cooling-down method |
Air-cooled |
|||||
Laser head size |
460.5(L)×103(W) ×120.4(H) mm3 |
|||||
Power supply(12VDC) |

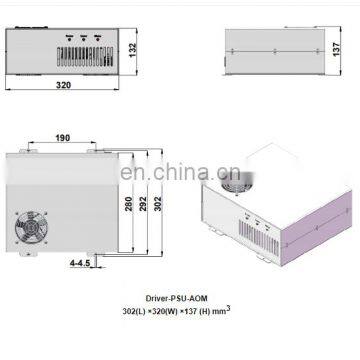

PSU-AOM power supply 302(L) ×320(W) ×137 (H) mm3 |
|||||
Expected lifetime (hours) |
20000 |
|||||
Warranty |
1year |
|||||
Pilot light |
5mW @650nm |
|||||
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include UV laser， green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
