High Stability 532nm Laser for Confocal Microscopy

High Stability 532nm Laser for Confocal Microscopy thumbnail-1
High Stability 532nm Laser for Confocal Microscopy thumbnail-2
High Stability 532nm Laser for Confocal Microscopy thumbnail-3
High Stability 532nm Laser for Confocal Microscopy photo-1
High Stability 532nm Laser for Confocal Microscopy photo-2
High Stability 532nm Laser for Confocal Microscopy photo-3
US$ 1,180 - 1,690 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
MGL-III-532
Contact Supplier Request Quote Chat Now
Changchun New Industries Optoelectronics Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Model Number MGL-III-532
Product Description

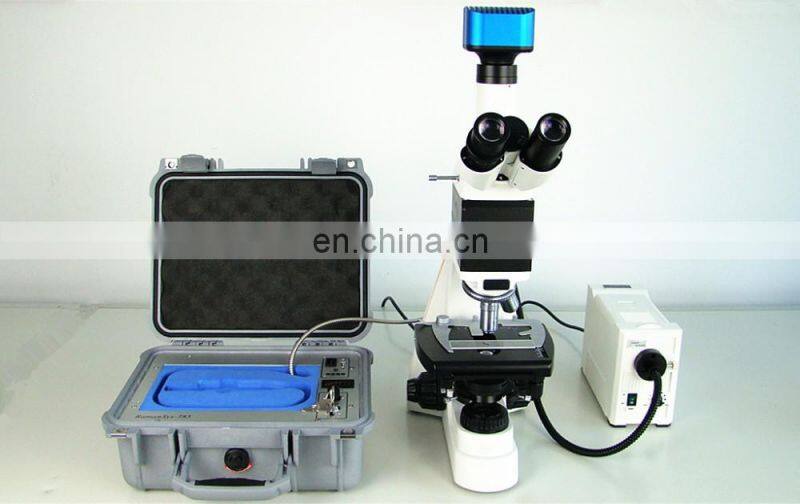

Confocal Laser Scanning Microscopy (CLSM)


It consists of confocal microscopy, laser and data acquisition system. It is a combination of the optical microscope, the modern laser technology, Raman detection technology, scanning control technology, computer image processing technique and fluorescence labeling technique. Its application and research field include the observation of life living cell structure and specific molecular, Ion biological changes, pharmacology, genetics, spectroscopy and related subjects. Specific applications such as: stochastic optical reconstruction microscopy（STORM）, fluorescence lifetime-transient scanning（FLITS）, fluoresence recover after photobleaching（FRAP）, stimulated emission depletion（STED）etc.

Detailed Images

High Stability 532nm laser for confocal miccroscopy

Wavelength (nm)
532±1
Operating mode
CW

Output power (mW) >1, 5, 10
Output power (mW)
>1, 5, 10, 20, … ,300
Power stability (rms, over 4 hours)
<1%, <3%, <5%, <10%
Transverse mode
TEM00
M2factor
<1.2
Beam diameter at the aperture 1/e2(mm)
~1.2
Beam divergence, full angle (mrad)
<1.5
Polarization ratio
>100:1, Horizontal±5 degree (Vertical Optional)
Warm-up time (minutes)
<10
Beam height from base plate (mm)
24. 8
Pointing stability after warm-up (mrad)
<0.05
Operating temperature (℃)
10~35

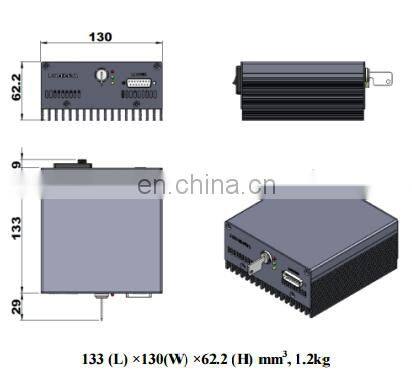

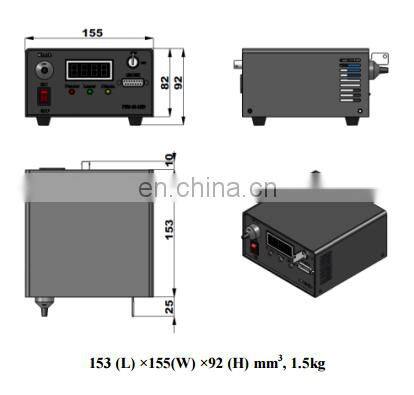

Power supply (90-264VAC or 5VDC)
PSU-III-LED
PSU-III-FDA
PSU-III-OEM-97

Modulation option
TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option
Expected lifetime (hours)
10000
Warranty
1 year
