1W 1550nm Low Noise Eye Safe Infrared Diode Laser
US$ 1,235 - 3,130
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1W-15W 1470nm IR Fiber Coupled Laser SystemUS$ 5,800 - 7,000MOQ: 1 Unit -
1319nm 50W 150W High Power Infrared LaserUS$ 37,400 - 43,680MOQ: 1 Piece
-
10W 20W Industrial Infrared 1064nm DPSS Laser Module With Air CoolingUS$ 7,600 - 15,200MOQ: 1 Unit
-
1500mW DPSS 1064nm Laser Module in Plug and Play With Small SizeUS$ 2,000 - 5,000MOQ: 1 Unit
-
10W 15W 20W Infrared 1064nm DPSS Laser Module With Air CoolingUS$ 8,000 - 25,000MOQ: 1 Piece
Brand Name
CNI
Place of Origin
Jilin, China
Product Description
It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are used in measurement,
communication, spectrum analysis, etc.
communication, spectrum analysis, etc.
Specification
Model |
MLL-III-1550 |
MLL-III-1550L |
|
Central wavelength (nm) |
1550±20 |
1550±10 |
|
Operating mode |
CW |
||
Output power (mW) |
>1, 100, 150, 200, …, 1000 |
>1, 2, 3,…, 10 |
|
Power stability (rms, over 4 hours) |
<1% <2% <3% |
||
Transverse mode |
Multimode |
Near TEM00 |
|
Noise of amplitude(rms,20Hz~20MHz) |
<1% |
||
Dimensions of beam at the aperture (mm) |
~5*8 |
~1.5 |
|
Beam divergence, full angle (mrad) |
<3 |
||
Warm-up time (minutes) |
<5 |
||
Beam height from base plate (mm) |
24.8 |
||
Operating temperature (℃) |
10-35 |
||
Power supply |
PSU-III-LED/ PSU-III-FDA (Frequency for 1Hz-30kHz) |
||
PSU-A-D (Frequency for 30kHz -100kHz) |
|||
TTL / Analog modulation |
TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz, 30kHz-100kHz optional |
||
Expected lifetime (hours) |
10000 |
||
Warranty |
1 YEAR |
||
APPLICATIONS

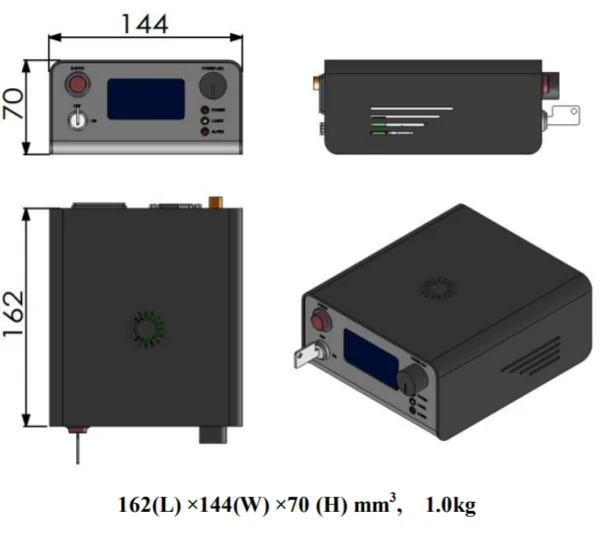

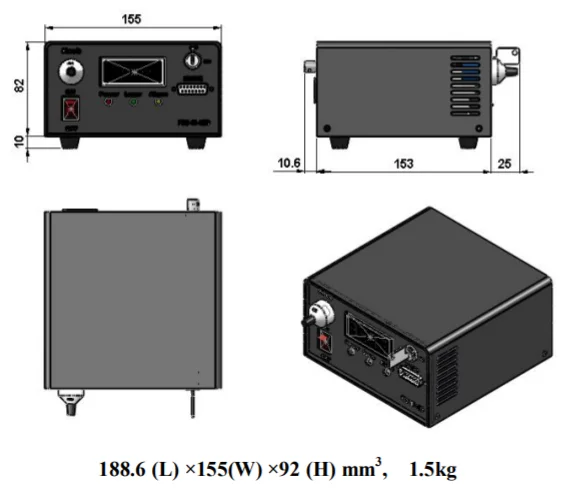

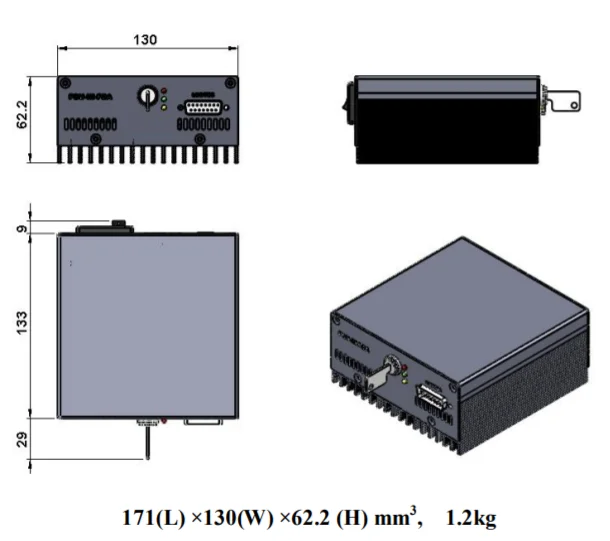

Dimensions

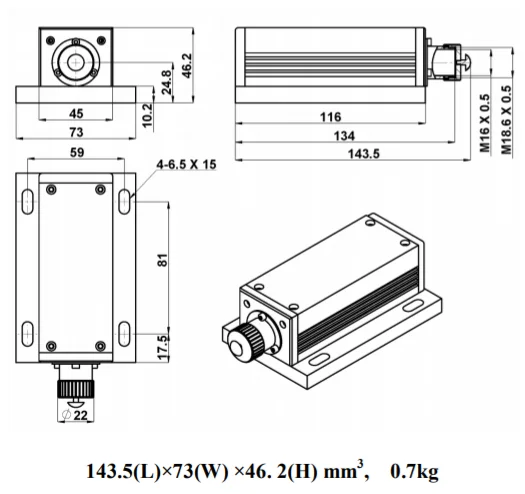

MLL-III-1550/MLL-III-1550L Laser head and Power supply
Certifications
Company Information
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
