Help Center1500mW DPSS 1064nm Laser Module in Plug and Play With Small Size
Related Products
-
10W 15W 20W Infrared 1064nm DPSS Laser Module With Air CoolingUS$ 8,000 - 25,000MOQ: 1 Piece -
Low Noise Infrared 1064nm DPSS Laser Module/ 10W 20W IR LaserUS$ 9,000 - 28,000MOQ: 1 Unit
-
1064nm Q-switched Single Longitudinal Mode LaserUS$ 27,040 - 30,420MOQ: 1 Unit
-
300mW 10~20ps 1064nm IR PS/ Picosecond Pulsed LaserUS$ 12,000 - 18,000MOQ: 1 Unit
-
2W 3W Q-switched 1064nm Laser Source for Laser Marking SystemUS$ 3,250 - 6,500MOQ: 1 Unit
Product Application
All solid state infrared laser at 1064 nm is made features of ultra compact, small size, wide operating temperature, good sealing, long lifetime, low cost and easy operating, working under the pressure of 0.02kPa, which is used in scientific experiment, measurement, optical instrument, optical sensor, communication, spectrum analysis, etc.
SPECIFICATIONS FOR 1500mW 1064nm DPSS Laser Module | ||||||||
Wavelength (nm) | MIL-S-1064-A(Harsh condition) | MIL-S-1064-B(Normal condition) | ||||||
Operating mode | CW | |||||||
Laser crystal | Nd:YVO4 | |||||||
Output power (mW) | >1,5,10,…,400 | >400,500,…,1500 | >1,5,10,…,400 | >400,500,…,1500 | ||||
Power stability (rms, over 4 hours) | <1%,<3%,<5% | |||||||
Transverse mode | TEM00 | |||||||
M2 factor | <1.2 | <1.5 | <1.2 | <1.5 | ||||
Beam diameter at the aperture( 1/e2 ,mm) | 1.00±0.05 | 1.20±0.05 | 1.00±0.05 | 1.20±0.05 | ||||
Beam divergence, full angle (mrad) | <1.7 | <1.8 | <1.7 | <1.8 | ||||
Polarization ratio | >100:1 Horizontal±5 degree (Vertical Optional) | |||||||
Pointing stability after warm-up (mrad) | <0.05 | |||||||
Pointing stability Over Temp. (µrad/°C) | <8 | |||||||
Warm-up time (minutes) | <5 | |||||||

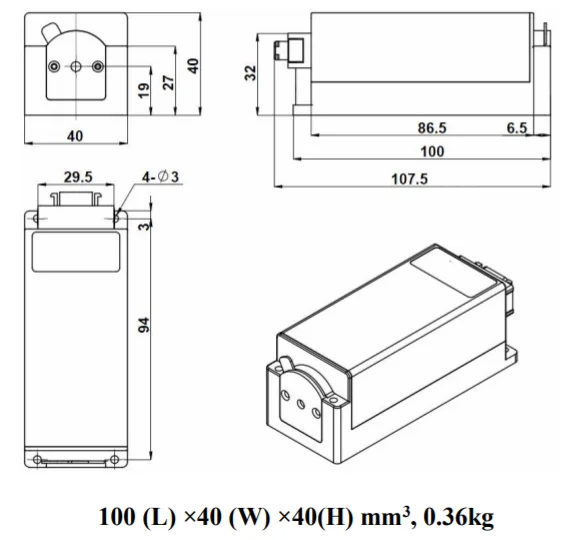

Beam height from base plate (mm) | 19 | |||||||
Power Consumption(W) | <40 | |||||||
Shock Tolerance(6ms) | 7g laterally,15g vertically | |||||||
IP Rating | IP67 | IP65 | ||||||

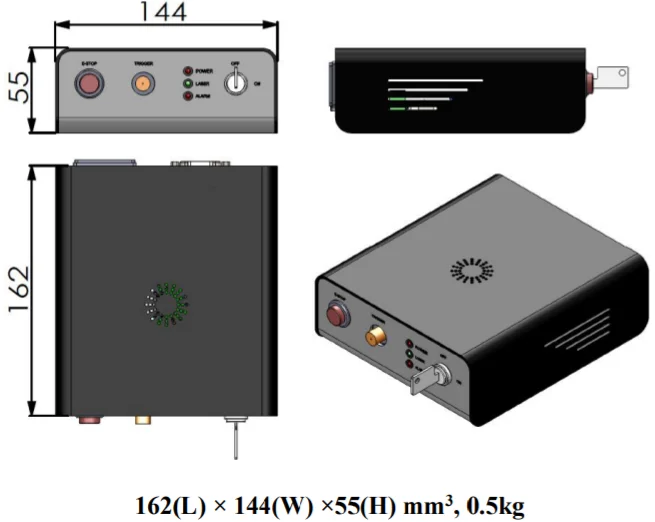

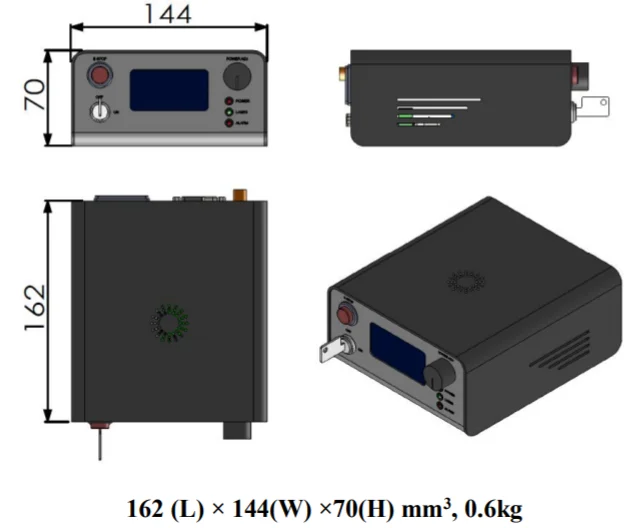

(90-264VAC or 5VDC) | PSU-H-FDA | PSU-III-LED PSU-III-FDA PSU-III-OEM-97 | ||||||
Operating temperature (℃) | 0-60 | 0-60 | ||||||
Max. Heat Dissipation of Head(W) | 10W@50℃ | 4W@25℃ | ||||||
Modulation | TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option | |||||||
Expected lifetime (hours) | 10000 | |||||||
Warranty | 1 year | |||||||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
FAQ
1. What about the delivery?
TNT UPS FEDEX DHL
2. What about the warranty?
For 1 year
3.How to pay?
4. How to visit our factory?
You can contact us by following ways to apply for visiting our factory:
（1） International Tel: +86-431-85603799
（2） Fax: +86-431-87020258
5. How to find nore product of our company?
Search our web to find more products(including more contact way )
10W 20W Industrial Infrared 1064nm DPSS Laser Module with Air cooling
Low Noise Infrared 1064nm DPSS Laser Module/ 10W 20W IR Laser
