1W-15W 1470nm IR Fiber Coupled Laser System

1W-15W 1470nm IR Fiber Coupled Laser System photo-1
US$ 5,800 - 7,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
FC-W-1470
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNI
Place of Origin Jilin, China
Model Number FC-W-1470
Product Description

1W-15W 1470nm IR Fiber coupled laser system

The FC-W series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.

Specifications


Central Wavelengths Tolerance (nm)
1470±20
Available Power (W)
10W, 15W
Red Pilot Light (P)
P
Fiber NA
0.22
Fiber Core Diameter (µm)
400
Fiber Connector
SMA905
Fiber Length (m)
2
Output Power
0-100%, adjustable by knob
Operating Mode
CW, TTL or Analog on request
LED Display
Diode current
LD Temperature Control Range ( ℃)
15~30, adjustable by knob
15~30, adjustable by knob
10000
Input Power
90-264VAC, 50 to 60 Hz
Power Consumption (KVA)
<0.5
Operating Temperature ( ℃)
10~40
Weight (kg)
<15
Cooling Way
by air
Warranty time
1 year

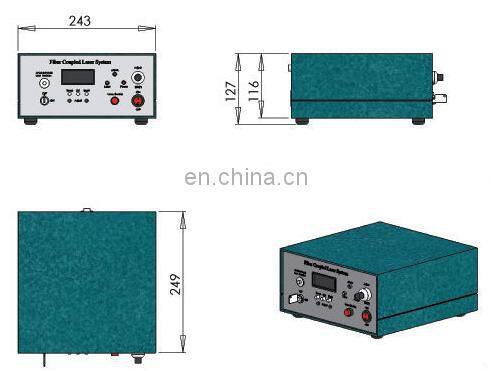

Dimensions

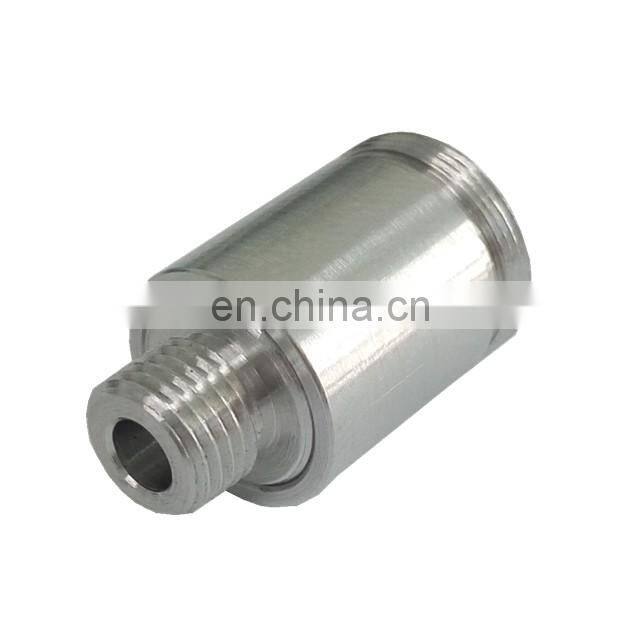

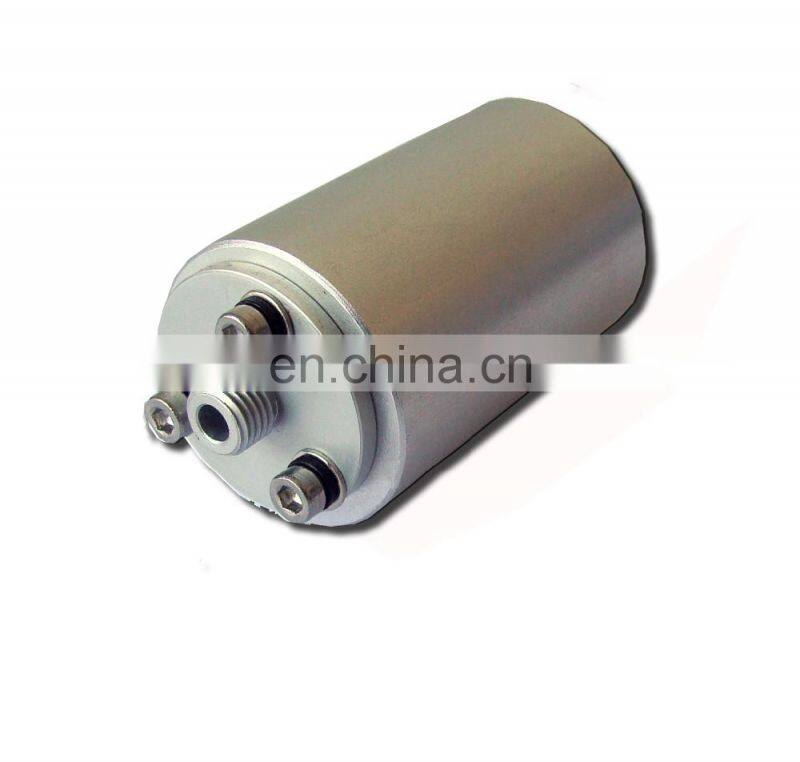

Fiber Collimator

.

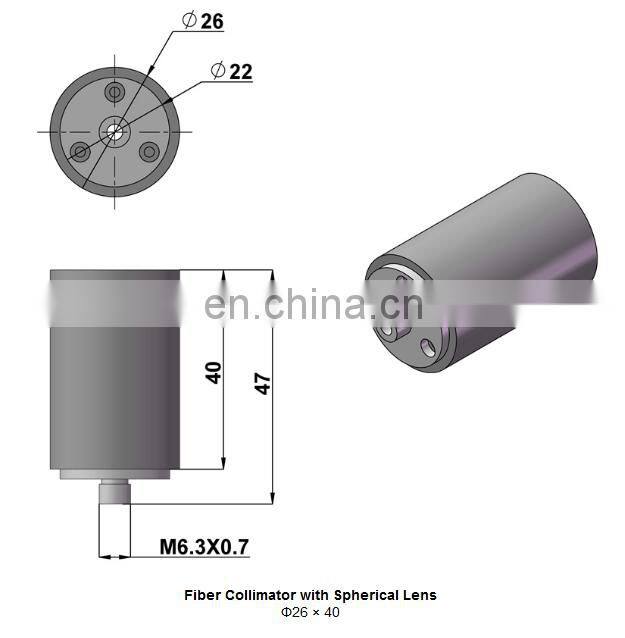

Spherical lens

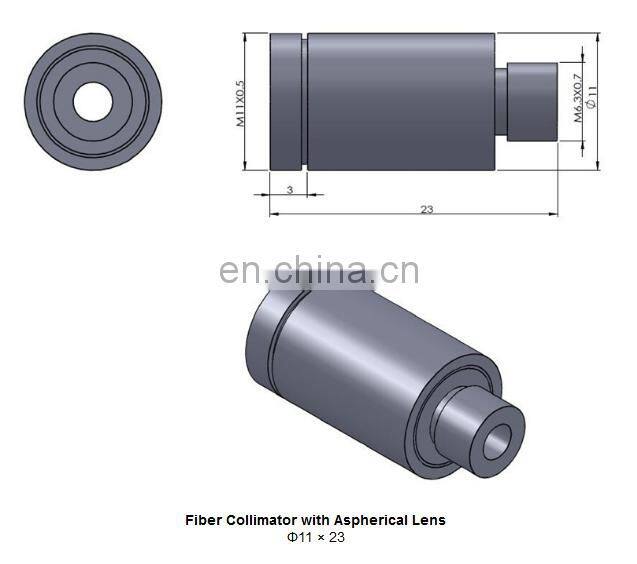

Aspherical lens

Certifications
Packing & Delivery
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
