MRL-W-671 CNI 5W 671nm DPSS Red Laser
APPLICATIONS:
It is widely used in measurement, spectrum analysis, laser lighting show, etc.
SPECIFICATIONS:
Wavelength (nm) |
671±1 |
|
Output power (mW) |
>3000, 3500, 4000, …, 5000 |
|
Transverse mode |
Near TEM00 |
|
Operating mode |
CW |
|
Power stability (rms, over 4 hours) |
<1%, <3%, <5%, <10% |
|
Warm-up time (minutes) |
<10 |
|
M2 factor |
3.0~6.0 |
|
Beam divergence, full angle (mrad) |
<2. 0 |
|
Beam diameter at the aperture (mm) |
~4. 0 |
|
Beam height from base plate (mm) |
93.5 |
|
Polarization ratio |
>100:1 |
|
Operating temperature (°C) |
10~35 |
|
Power supply (90-264VAC) |
PSU-W-LED |
PSU-W-FDA |
Modulation option |
TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option |
|
Expected lifetime (hours) |
10000 |
|
Warranty period |
1 year |
|

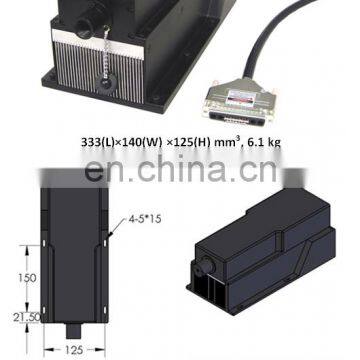

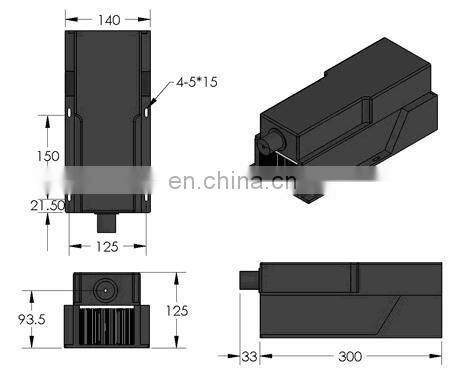

Laser Head

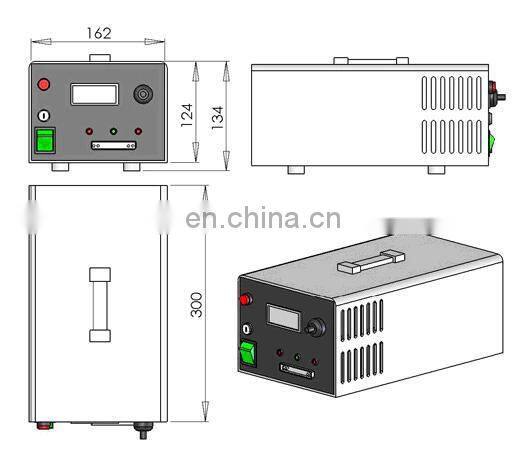

PSU-W-LED power supply

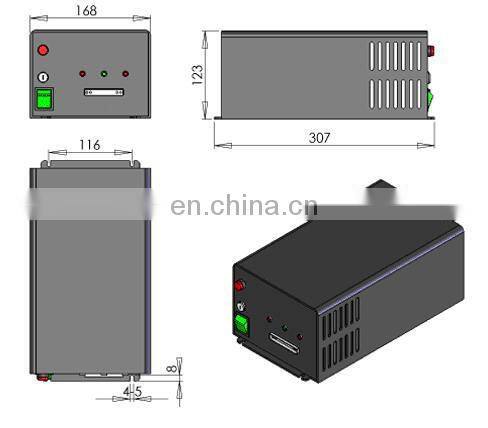

PSU-W-FDA power supply
