2W Low Noise Blue 457nm Laser
APPLICATIONS:
It is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, etc.
SPECIFICATIONS:
Model |
MLL-N-457A (Good beam) |
MLL-N-457B (Normal Product) |
Wavelength (nm) |
457±1 |
|
Output power (mW) |
>1000, 1200,…, 1500 |
>1000, 1500,…, 2000 |
Transverse mode |
TEM00 |
Near TEM01 |
Operating mode |
CW |
|
Power stability (rms, over 4 hours) |
<1%, <3%, <5%, |
|
Warm-up time (minutes) |
<10 |
|
M2 factor |
<1.5 |
<3.0 |
Beam divergence, full angle (mrad) |
<1. 2 |
|
Beam diameter at the aperture (mm) |
~2. 0 |
~3. 0 |
Beam height from base plate (mm) |
68.2 |
|
Polarization ratio |
>100:1 |
|
Noise of amplitude (rms, 1~20MHz) |
<3% |
|
Operating temperature (℃) |
10~35 |
|
Power supply (90-264VAC) |
PSU-H-LED/PSU-H-FDA/PSU-N-OEM |
|
Expected lifetime (hours) |
10000 |
|
Warranty period |
1 year |
|

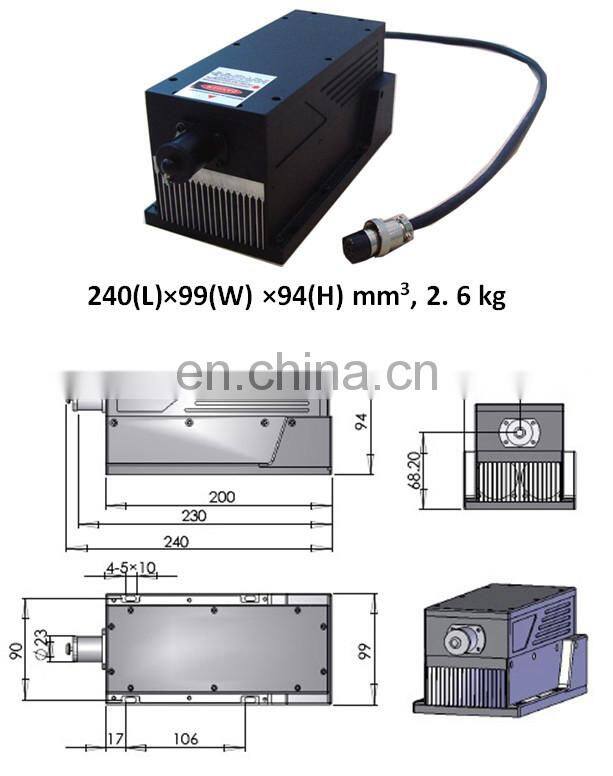

Laser Head

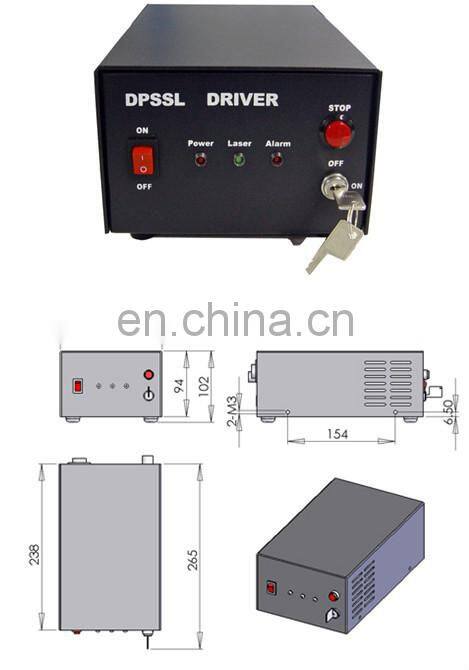

PSU-H-LED Power supply
PSU-H-FDA Power supply
PSU-N-OEM Power supply
