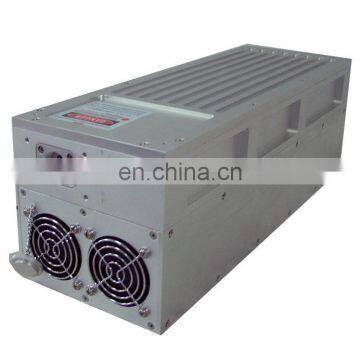

Help Center300uJ 8W 532nm DPSS Green AOM Q-Switched Laser
Related Products
-
405nm 1000mW Blue Laser Module for MeasurementUS$ 650 - 5,070MOQ: 1 Unit -
405nm Laser 10W Violet Blue Diode Laser ModuleUS$ 15,600 - 20,100MOQ: 1 Piece
-
CNI 445nm 4W 5W 6W Violet Blue Laser ModuleUS$ 1,999 - 3,999MOQ: 1 Piece
-
DPSS 457nm 5W 10W Blue Laser ModuleUS$ 12,480 - 29,900MOQ: 1 Piece
-
2W 457nm Low Noise Blue Laser CNIlaserUS$ 9,126 - 11,154MOQ: 1 Piece
APPLICATION:
All solid state AOM Q-switched laser at 532 nm has the features of high peak power, high repetition rate, and short pulse duration, which is in marking on materials that are hard, such as highly reflective metals: silver and gold; semiconductors: including silicon, gallium arsenide and germanium, and rubbers such as silicone.
SPECIFICATIONS:
Wavelength (nm) |
532±1 |
|
Operating mode |
Q-switched: AOM (Acousto-Optic Modulation) |
|
Output power (W) |
@CW mode |
7 |
@Q-switched mode |
>8@30kHz, typical |
|
Single pulse energy (µJ) |
1~300 |
|
Pulse duration (ns) |
<30@30kHz |
|
Peak power (kW) |
~10 |
|
Rep. rate (kHz) |
1~200, adjustable by external control |
|
Ave power stability (over 4 hours) |
<1%, <3%, <5%, <10% |
|
Warm-up time (minutes) |
<10 |
|
Beam divergence, full angle (mrad) |
<2 |
|
Beam diameter at the aperture (mm) |
~4. 0 |
|
Beam height from base plate (mm) |
96 |
|
Polarization ratio |
>100:1 |
|
Cooled method |
Air cooled |
|
Operating temperature (℃) |
15~35 |
|
Power supply (220/110VAC) |
PSU-AOM(3U) |
|
Expected lifetime (hours) |
10000 |
|
Warranty period |
1 year |
|
Pilot light (optional) |
5mW @650nm |
|
