Small Size 100uJ 532nm Green DPSS Laser With Acousto-optic Q-switched for Material Processing

Wavelength (nm)

532±1

Single pulse energy (μJ)

1~100

(100μJ@1kHz; 50μJ@5kHz)

Rep. rate (kHz)

0.1~50

Pulse duration

Typically5~10ns @<10kHz, varies from power and repetition.

Average power (mW)

Average power (mW)= Single pulse energy (μJ)* Rep. rate(kHz)

Power Stability (rms,over 4 hours)

<3%,<5%,<10%

Transverse mode

Near TEM₀₀

M² factor

<1.5

Beam Diameter at the aperture 1/e² (mm)

~0.3

~1.2 (optional)

Beam divergence, full angle (mrad)

<5.0

<1.5 (optional)

Polarization ratio

>100:1 Vertical l±5 degree

Warm-up Time (minutes)

<10

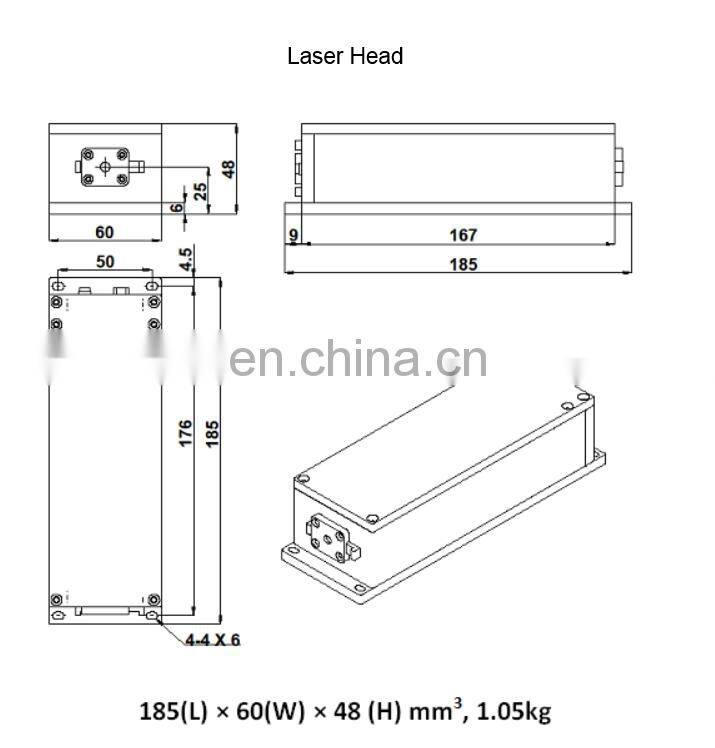

Beam height from base plate (mm)

25

Operating temperature(℃)

10~35

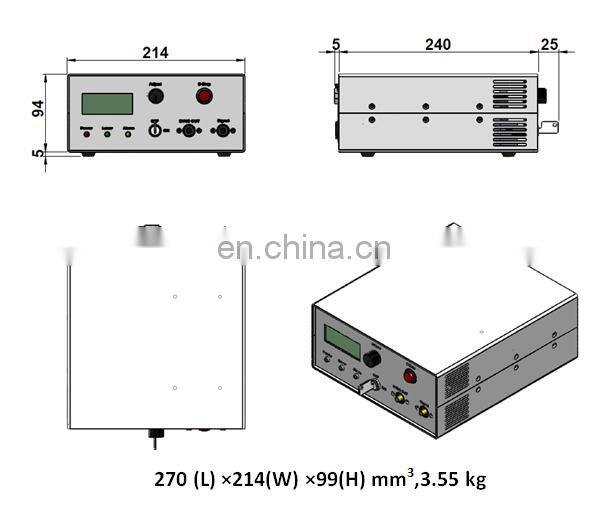

Power supply (90-264VAC)

PSU-AOM-DL

Expected lifetime (hours)

10000

Warranty

1 year
