SLM Green 532nm Green Single longitudinal mode Laser for Holography
APPLICATION:
All solid state single longitudinal mode green laser at 532 nm is made features of ultra compact, small size, wide operating temperature, good sealing, long lifetime, low cost and easy operating, working under the pressure of 0.02kPa, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc.
Lasers for Holography
SPECIFICATIONS:
Model | MSL-S-532-A(Harsh condition) | MSL-S-532-B(Normal condition) |
Wavelength (nm) | 532±2 | |
Output power (mW) | >1,5,10,20,…,50 | |
Longitudinal mode | Single | |
Transverse mode | TEM00 | |
Operating mode | CW | |
Power stability (rms, over 4 hours) | <1%,<3%,<5% | |
Warm-up time (minutes) | <5 | |
M2 factor | <1.2 | |
Beam divergence, full angle (mrad) | <1.5 | |
Beam diameter at 1/e2 (mm) | ~0.7 | |
Beam height from base plate (mm) | 19 | |
Polarization ratio | >100:1 (0 or 90 degree) | |
Spectral linewidth (nm) | <0.00001 | |
Coherent length (m) | >50 | |
Noise of amplitude (rms, 20Hz~20MHz) | <0. 5% | |
Pointing stability after warm-up (mrad) | <0.05 | |
Power Consumption(W) | <30 | |
Shock Tolerance(6ms) | 7g laterally,15g vertically | |
IP Rating | IP67 | IP65 |
Power supply(90-264VAC) | PSU-H-FDA | PSU-III-FDA |
Operating temperature (℃) | 0-60 | 10-35 |
Max. Heat Dissipation of Head(W) | 10W@50℃ | 4W@25℃ |
Modulation | Modulation isn’t available. | |
Expected lifetime (hours) | 10000 | |
Warranty | 1 year | |

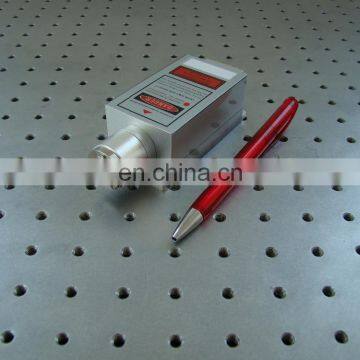

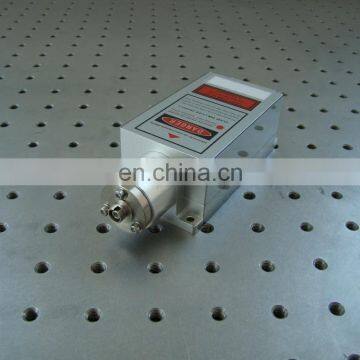

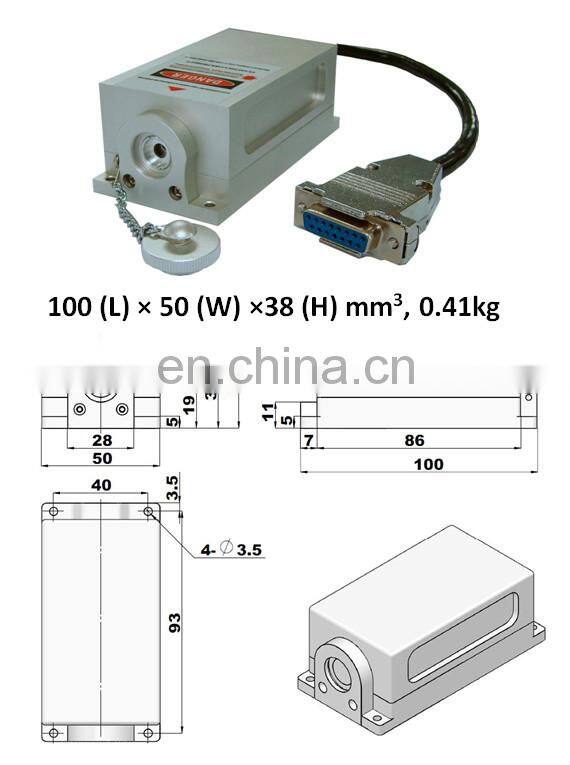

Laser Head

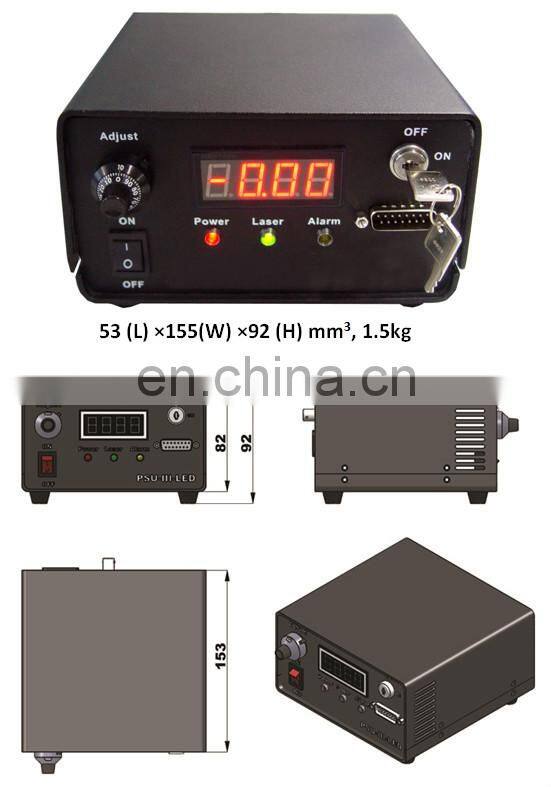

PSU-III-LED Power supply
PSU-III-FDA Power supply
Company Information
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE, RoHS and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
