1~100mW 355nm DPSS UV Laser Module

Changchun New Industries Optoelectronics Tech Co., Ltd.
1~100mW 355nm DPSS UV Laser Module thumbnail-1
1~100mW 355nm DPSS UV Laser Module thumbnail-2
1~100mW 355nm DPSS UV Laser Module thumbnail-3
1~100mW 355nm DPSS UV Laser Module photo-1
1~100mW 355nm DPSS UV Laser Module photo-2
1~100mW 355nm DPSS UV Laser Module photo-3
US$ 5,999 - 10,399 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
MPL-F-355
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Model Number MPL-F-355
Product Description

1~100mW 355nm DPSS UV laser module

All solid state 355 nm UV laser is made features of ultra compact, long lifetime, cost -effectiveness and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc.

Specifications

Central wavelength (nm)
355±1
Output average power (mW)
1~100
Transverse mode
Near TEM00
Operating mode
Frequency conversion of Q-switched pulsed laser
Single pulse energy (µJ)
0.1~15
Pulse duration (ns)
~5
Peak power(W)
20~3000




Rep. rate (kHz)


Controllable
Fixed rep. rate, such as 1k, 2k, 3k, 4kHz, with stable laser pulses emitting (stable pulse energy, peak, duration and period).
Different rep. rate in the range of 1kHz-4kHz can be obtained by input an external TTL signal.

Controllable
Undefined rep. rate among 4k-10kHz and unstable laser pulse emitting. Suitable for the applications only needing high peak power pulses.
Average power (mW)
Average power (mW) = Single pulse energy (µJ) * Rep. rate (kHz)
Ave power stability (over 4 hours)
<5%, <10%
Beam divergence, full angle (mrad)
<1. 5
Beam diameter at the aperture (mm)
~2. 0
Polarization ratio
>100:1
Pointing stability after warm-up (mrad)
<0. 05
Warm-up time(minutes)
<10
Beam height from base plate (mm)
45
Operating temperature (℃)
10~35
Spectral purity
>99%
Power supply (90-264VAC)
PSU-H-FDA
Expected lifetime (hours)
5000
Warranty period
1 year
Remarks
Please Note: because of the Walk-off effect of Nonlinear crystals, the beam quality of UV laser is not so good as that of 1064/532nm laser.
Dimensions

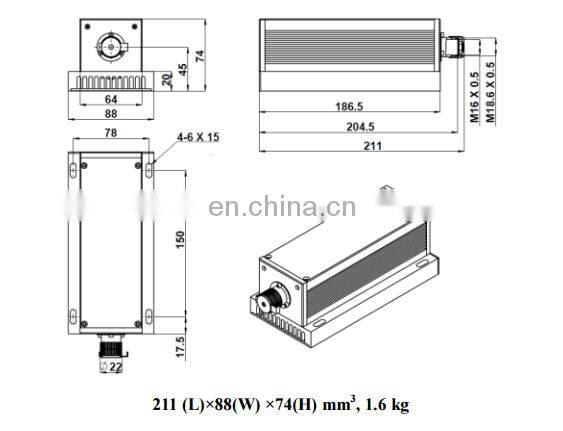

Laser Head---MPL-F-355

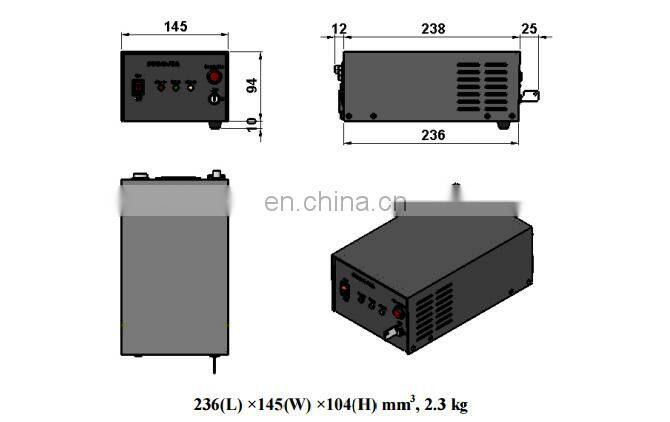

Power Supply---PSU-H-FDA


Certifications
Packing & Delivery
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
