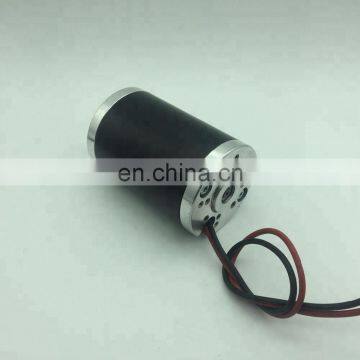

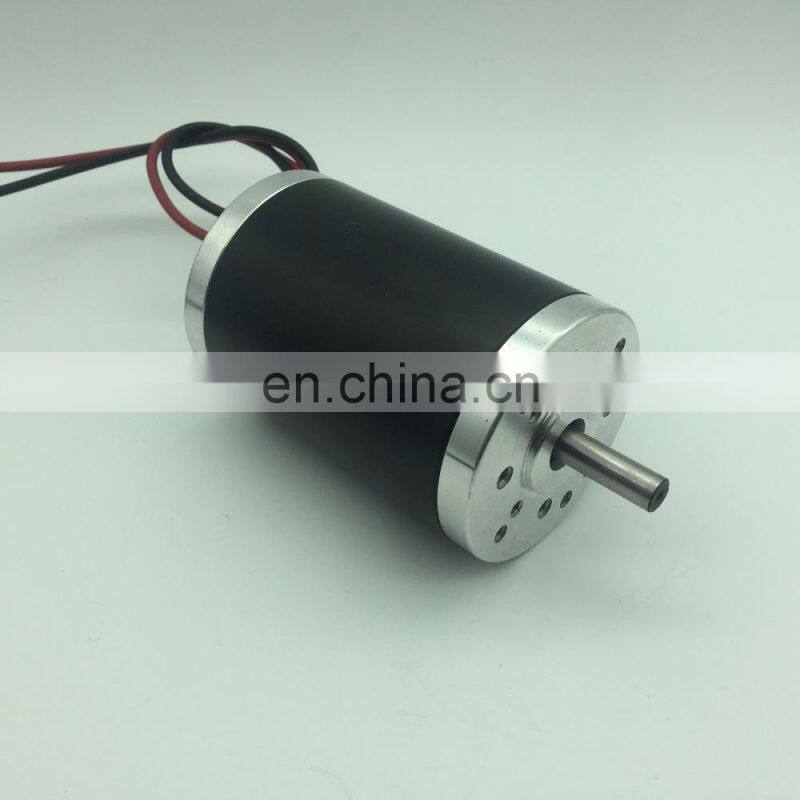

63ZYT01B 12 Volt 4000rpm 0.2Nm 75w dc Motor
US$ 15 - 15
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
SmartAutomation
Place of Origin:
China
Model Number:
63ZYT01b
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
42ZYT04C High Speed Dc Motor 10000rpm 92wUS$ 14 - 14MOQ: 100 Pieces -
63ZYT01A-12volt Brushed dc Motor 12v 3100rpm 0.15NmUS$ 11.5 - 16MOQ: 20 Pieces
-
63ZYT02A 24V Permanent Magnet 100W dc Motor Rated 24volt 0.31Nm 3000RPMUS$ 18 - 19MOQ: 20 Pieces
-
42ZYT01A -24V Permanent Magnet 24 Volt dc Motor, Rated 3600rpm, 39mNm, Equivalent to Gr42US$ 11.5 - 12.5MOQ: 50 Pieces
-
42ZYT03 Series 12v or 24v dc Motor Equivalent to GR42x40 Rated 3100rpm 57mNmUS$ 9 - 10MOQ: 100 Pieces
Brand Name
SmartAutomation
Place of Origin
China
Model Number
63ZYT01b
Type
Micro Motor
Certification
CE, ROHS
Torque
0.2N.m
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
12V
Output Power
75w
Continuous Current(A)
customed
Speed(RPM)
4000rpm
Commutation
Brush
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
Model | 63ZYT01B-12V | 63ZYT01B-24V | 63ZYT01B-40V | |
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 4000 | 4000 | 4000 |
Continuous rated torque | N.m | 0.2 | 0.2 | 0.2 |
Continuous current | A | 10.0 | 4.9 | 2.8 |
Starting torque | N.m | 1.12 | 1.41 | 1.46 |
Starting current | A | 50.8 | 30.8 | 17.8 |
No load speed | rpm | 4700 | 47000 | 4900 |
No load current | A | 1.0 | 0.6 | 0.4 |
Demagnetization current | A | 67.6 | 41.0 | 23.7 |
Rotor inertia | gcm2 | 400 | 400 | 400 |
weight | g | 1000 | 1000 | 1000 |

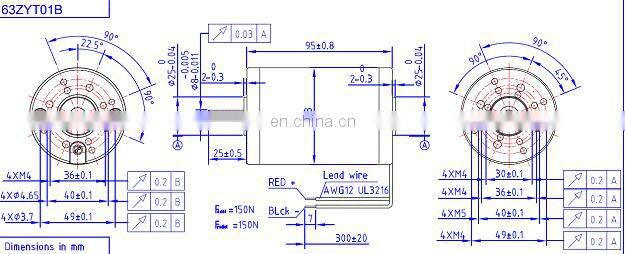

motor length | mm | 95 | 95 | 95 |
