Home > Electrical & Electronics > Electric Motor > DC Motor > 63ZYT02A 24V Permanent Magnet 100W dc Motor Rated 24volt 0.31Nm 3000RPM

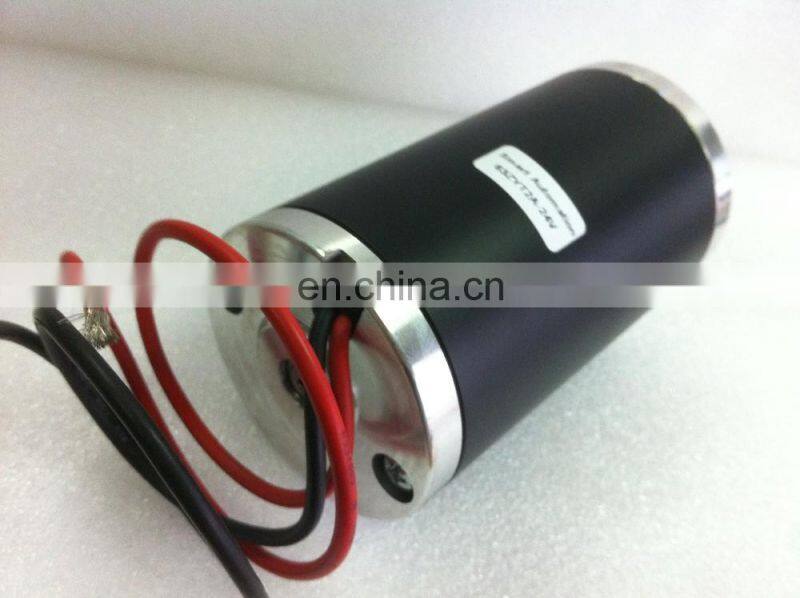

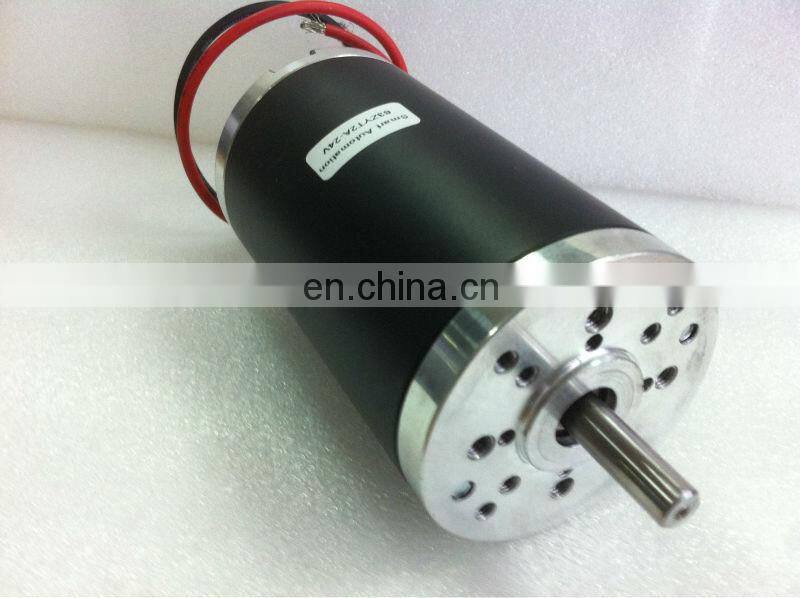

63ZYT02A 24V Permanent Magnet 100W dc Motor Rated 24volt 0.31Nm 3000RPM
US$ 18 - 19
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
63ZYT02A-24V
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
42ZYT01A -24V Permanent Magnet 24 Volt dc Motor, Rated 3600rpm, 39mNm, Equivalent to Gr42US$ 11.5 - 12.5MOQ: 50 Pieces -
42ZYT03 Series 12v or 24v dc Motor Equivalent to GR42x40 Rated 3100rpm 57mNmUS$ 9 - 10MOQ: 100 Pieces
-
63ZYT01C 12V or 24V dc Motor no Load 10000rpm Rated 0.2Nm 200wUS$ 11.2 - 13.5MOQ: 100 Pieces
-
54mm 14204 38.2v Dc Engine Rated 24volt 3200rpm 184mNm 62wUS$ 15 - 15MOQ: 100 Pieces
-
80ZYT-R02 DC Electric Motors Rated 2900rpm 177w, Replace TRANSTECNO MotorUS$ 18.5 - 20MOQ: 100 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
63ZYT02A-24V
Type
Micro Motor
Certification
CE, ROHS
Torque
0.31N.m
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
24V
Output Power
100w
Continuous Current(A)
customed
Speed(RPM)
3000rpm
Commutation
Brush
63ZYT02A-24V

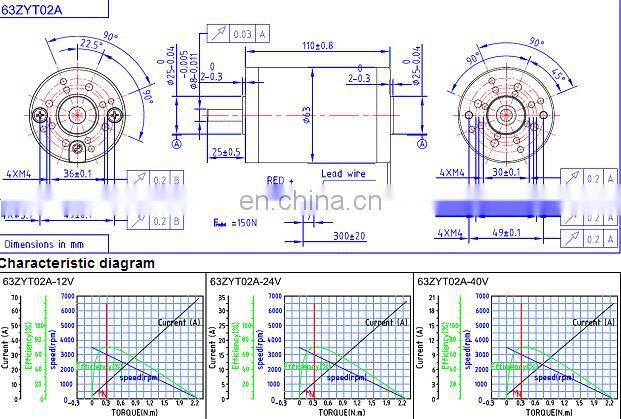

Motor technical parameter:
NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Model | 63ZYT02A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 3000 | 3000 | 3000 |
Continuous rated torque | mN.m | 310 | 310 | 310 |
Continuous current | A | 11.5 | 5.8 | 3.5 |
Starting torque | mN.m | 2000 | 2000 | 2000 |
Starting current | A | 59 | 29.5 | 17.5 |
No load speed | rpm | 3500 | 3500 | 3500 |
No load current | A | 2.0 | 1.2 | 0.8 |
Demagnetization current | A | 110 | 55 | 33 |
Rotor inertia | Gcm2 | 600 | 600 | 600 |
Weight of motor | g | 1200 | 1200 | 1200 |
Motor length | mm | 110 | 110 | 110 |
