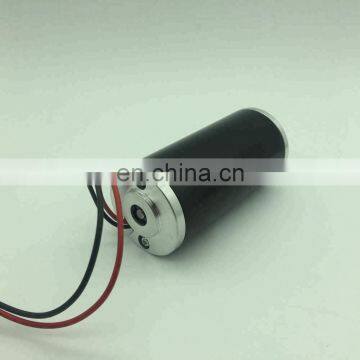

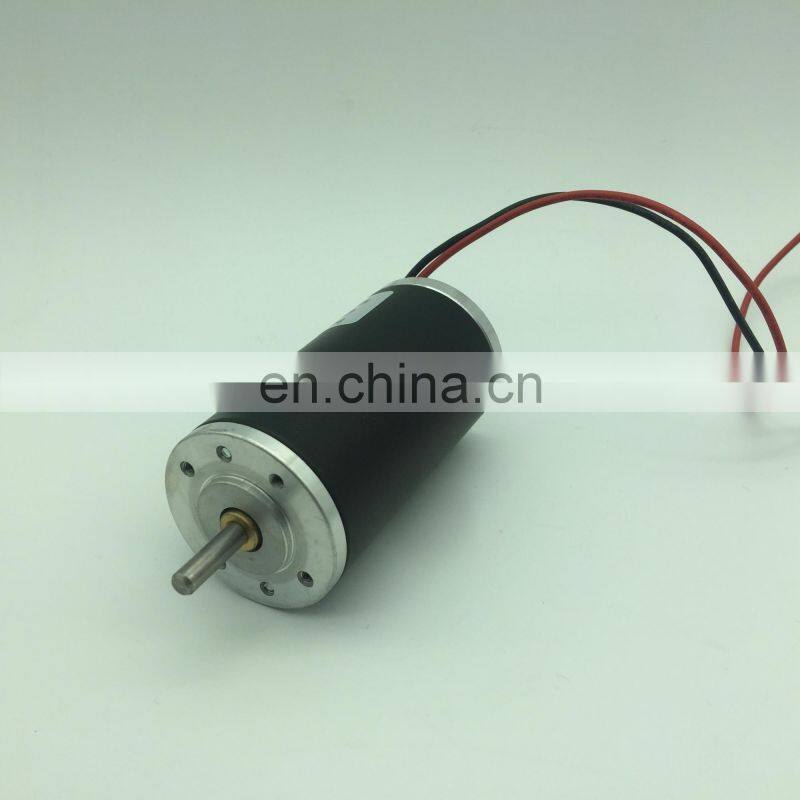

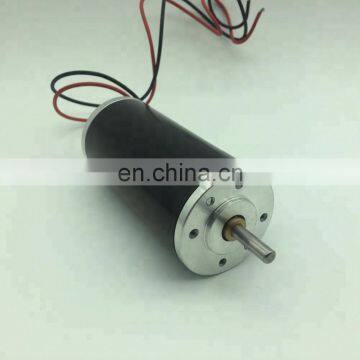

42ZYT03 series 12v or 24v dc motor equivalent to GR42x40 rated 3100rpm 57mNm
- 1000 Piece / Pieces per Month
- T/T Credit Card
-
63ZYT01C 12V or 24V dc Motor no load 10000rpm rated 0.2Nm 200w
-
54mm 14204 38.2v Dc engine rated 24volt 3200rpm 184mNm 62w
-
80ZYT-R02 DC electric motors rated 2900rpm 177w, replace TRANSTECNO Motor
-
76ZYT02 24v pmdc Motor rated 0.4Nm 2600rpm
-
76mm 3'' Dc Brushed Motor 12 volt used for Tennis Ball Machine 4500rpm 250mNm
-
54mm 18v Dc Fan Motor rated 18 volt 180mNm
Product Details
| Brand Name: | SmartAutomation | Place of Origin: | Jiangsu, China | Model Number: | 42ZYT03Z |
| Type: | Micro Motor | Certification: | CE, ROHS | Torque: | 57mNm |
| Usage: | Car, Electric Bicycle, Fan, Home Appliance | Construction: | Permanent Magnet | Efficiency: | IE 1 |
| Protect Feature: | Drip-proof | Voltage(V): | 12v, 24v | Output Power: | 20w |
| Continuous Current(A): | customed | Speed(RPM): | 3100~3700rpm | Commutation: | Brush |
Product Description
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
Model | 42ZYT03Z | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 3750 | 3100 | 3400 |
Continuous rated torque | mN.m | 53 | 57 | 57 |
Continuous current | A | 2.7 | 1.2 | 0.8 |
Starting torque | mN.m | 320 | 330 | 360 |
Starting current | A | 13.2 | 5.68 | 3.97 |
No load speed | rpm | 4550 | 3800 | 3950 |
No load current | A | 0.44 | 0.18 | 0.12 |
Demagnetization current | A | 24 | 10.5 | 6.3 |
Rotor inertia | Gcm2 | 110 | 110 | 110 |
Weight of motor | g | 490 | 490 | 490 |
Motor length | Mm | 85 | 85 | 85 |
