Home > Electrical & Electronics > Electric Motor > DC Motor > 42ZYT01A -24V Permanent Magnet 24 Volt dc Motor, Rated 3600rpm, 39mNm, Equivalent to Gr42

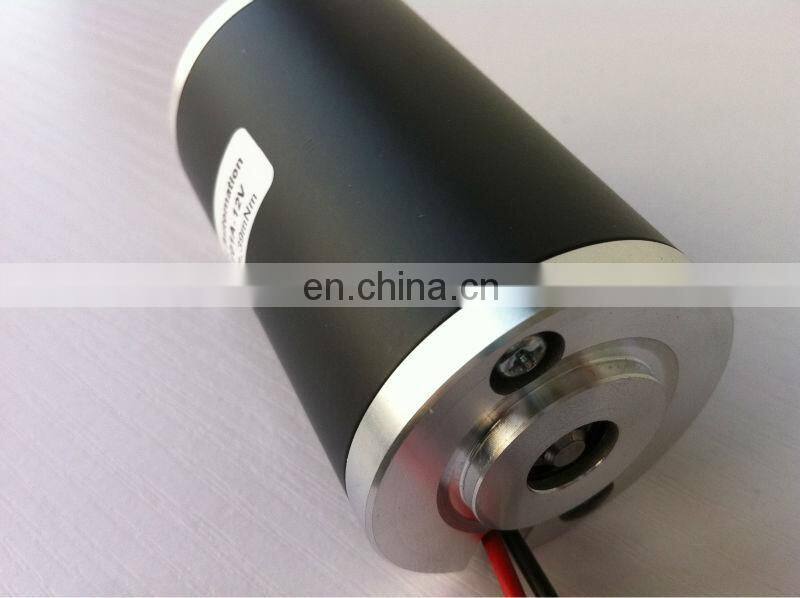

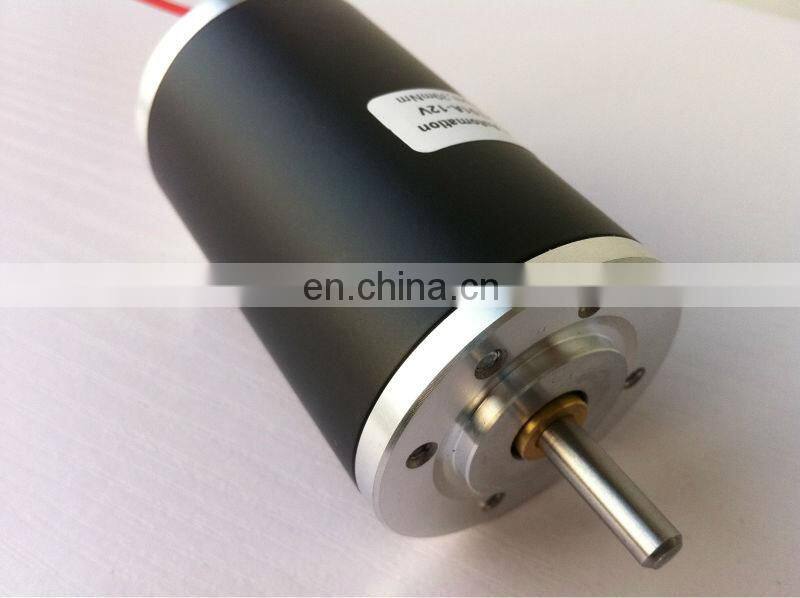

42ZYT01A -24V Permanent Magnet 24 Volt dc Motor, Rated 3600rpm, 39mNm, Equivalent to Gr42
US$ 11.5 - 12.5
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
42ZYT01A-24v
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
42ZYT03 Series 12v or 24v dc Motor Equivalent to GR42x40 Rated 3100rpm 57mNmUS$ 9 - 10MOQ: 100 Pieces -
63ZYT01C 12V or 24V dc Motor no Load 10000rpm Rated 0.2Nm 200wUS$ 11.2 - 13.5MOQ: 100 Pieces
-
54mm 14204 38.2v Dc Engine Rated 24volt 3200rpm 184mNm 62wUS$ 15 - 15MOQ: 100 Pieces
-
80ZYT-R02 DC Electric Motors Rated 2900rpm 177w, Replace TRANSTECNO MotorUS$ 18.5 - 20MOQ: 100 Pieces
-
76ZYT02 24v Pmdc Motor Rated 0.4Nm 2600rpmUS$ 18 - 19MOQ: 100 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
42ZYT01A-24v
Type
Micro Motor
Certification
CE, ROHS
Torque
39mNm
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
24v
Output Power
15w
Continuous Current(A)
0.9a
Speed(RPM)
3600RPM
Commutation
Brush
42ZYT01A-24v
NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified

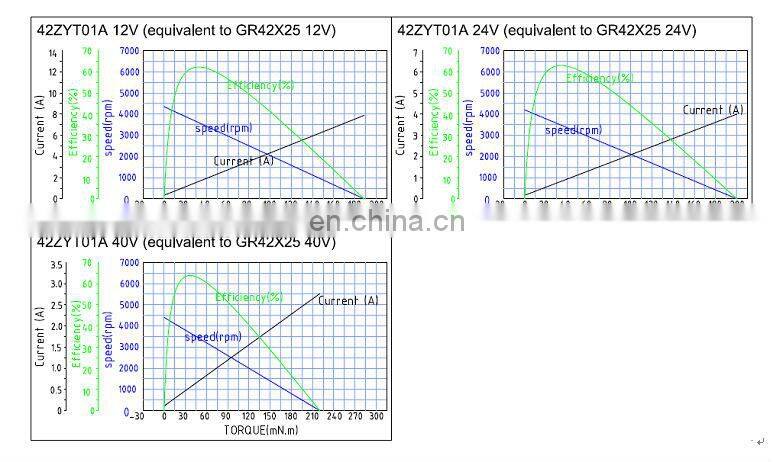

Model | 42ZYT01A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 3450 | 3600 | 3700 |
Continuous rated torque | mN.m | 39 | 39 | 39 |
Continuous current | A | 1.9 | 0.9 | 0.6 |
Starting torque | mN.m | 190 | 200 | 220 |
Starting current | A | 7.8 | 4 | 2.76 |
No load speed | rpm | 4350 | 4200 | 4400 |
No load current | A | 0.34 | 0.17 | 0.11 |
Demagnetization current | A | 14 | 6.5 | 4.1 |
Rotor inertia | Gcm2 | 71 | 71 | 71 |
Weight of motor | g | 390 | 390 | 390 |
