customized specification 12v 24v dc pump motor for hydraulic water air pumps, OEM ODM
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
-
80mm electric bicycle vehicle use brushless dc E-bike Scooter Motor 100w 200w 300w upto 500w 800w, high efficiency long life
-
12v 18v 24v Brushless Dc Blower Power 100w 200w 300w 500w
-
42mm 52mm series dc vibration air pump motor 10v 12v 24v for medical device equipment, low noise long life EMC/EMI suppression
-
Automatic Dc Door Motor used for Door Windows and Gates Automation Opening Lifting and Sliding
-
56mm / 60mm powder metal gear planetary gearbox, rated torque upto 30Nm
-
42JXG series 42mm planetary gearhead, long life, small noise, application for brushless / brushed dc motor
Product Details
| Brand Name: | Smart Automation | Place of Origin: | Jiangsu, China | Model Number: | 76ZYT |
| Certification: | CE, ROHS | Torque: | customed | ||
| Usage: | Car, Electric Bicycle, Fan, Home Appliance | Construction: | Permanent Magnet | Efficiency: | IE 1 |
| Protect Feature: | Drip-proof | Continuous Current(A): | customed | Speed(RPM): | customed |
| Commutation: | Brush |
Product Description

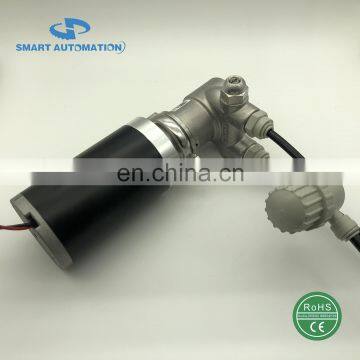

Customized Dc motors for air pumps, water pumps, hydraulic pumps

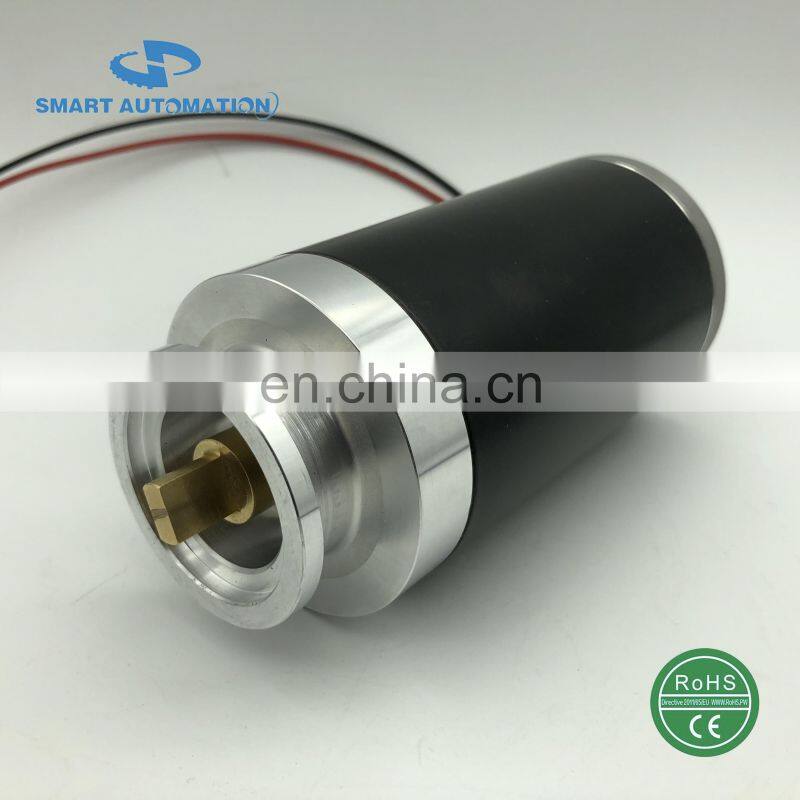

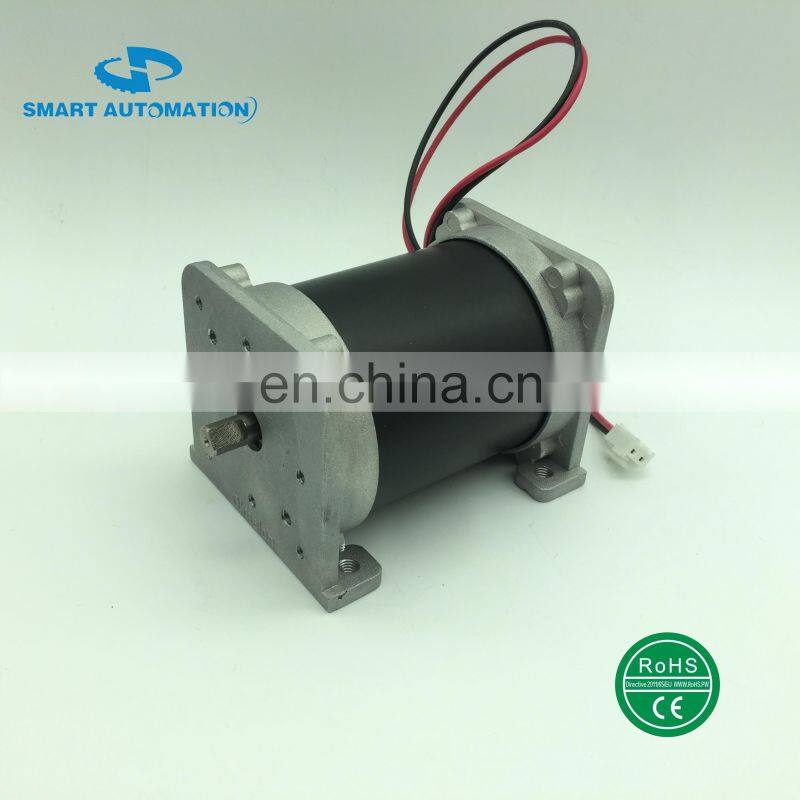

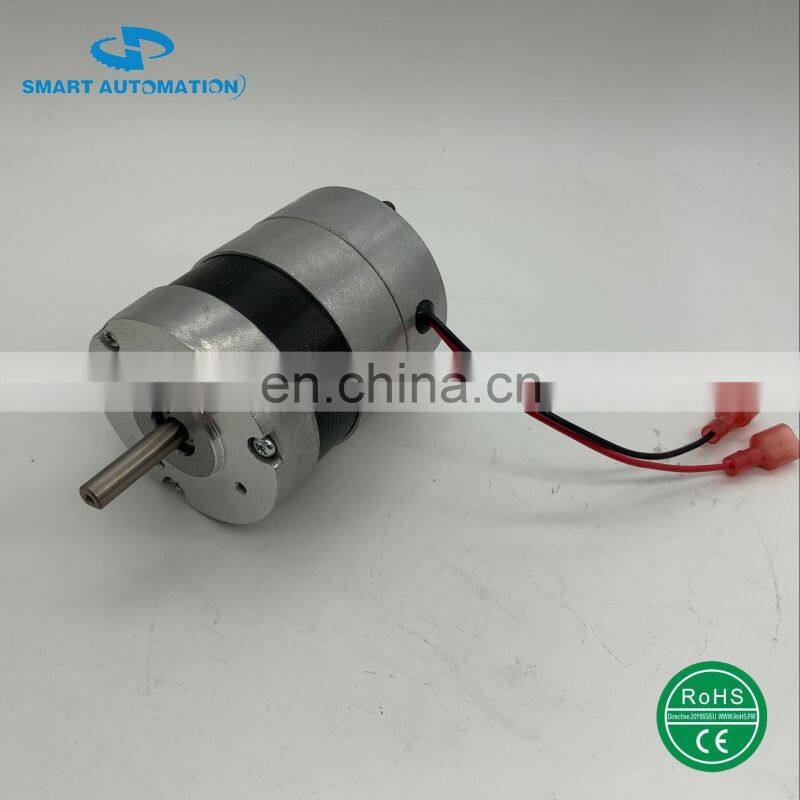

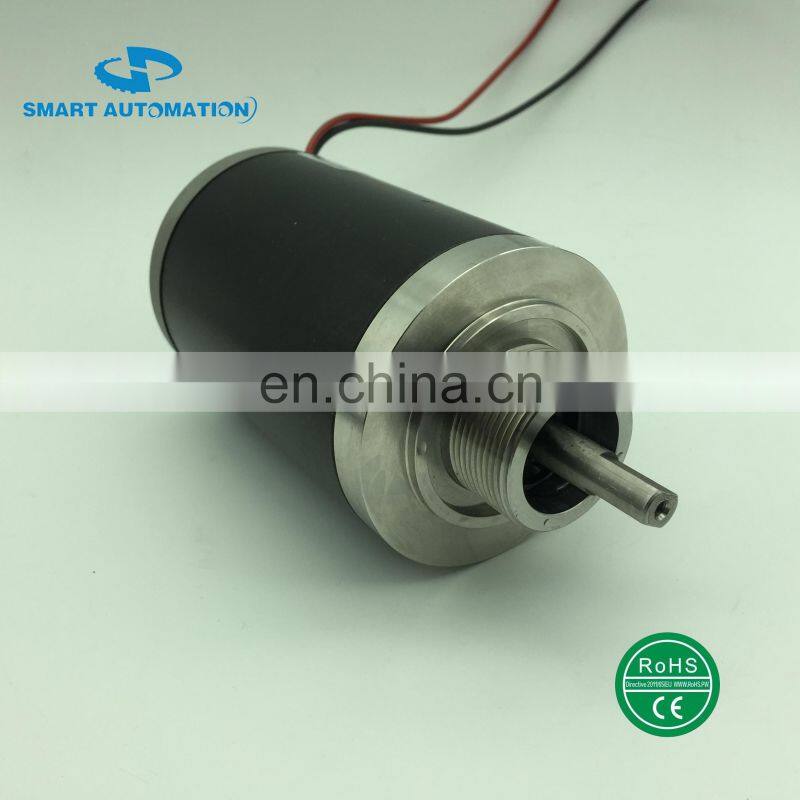

Brushed version,
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 54
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Rated voltage : 12v 18v 24v 36v 48v
Rated torque : upto 2.0Nm
Power: upto 800w
Rated speed: upto 10000rpm

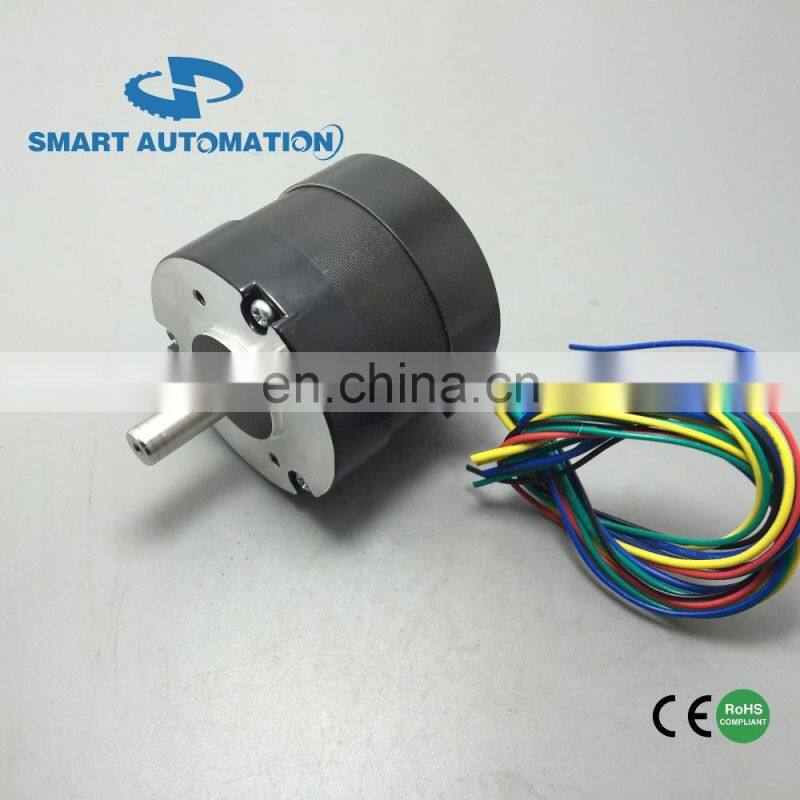

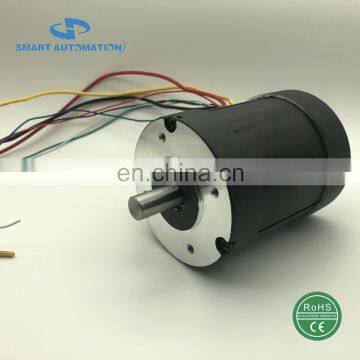

Brushless version,
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 4,8- poles
Protection class IP00 40 54 66
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Rated voltage : 12v 18v 24v 36v 48v
Rated torque : upto 2.5Nm
Rated speed: upto 12000rpm
With or without halls
With or without controller integrated
Some specific model for reference,
Permanent Magnet Brush DC Motor 76ZYT02A-2
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 54
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
