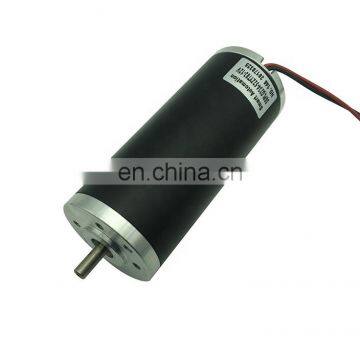

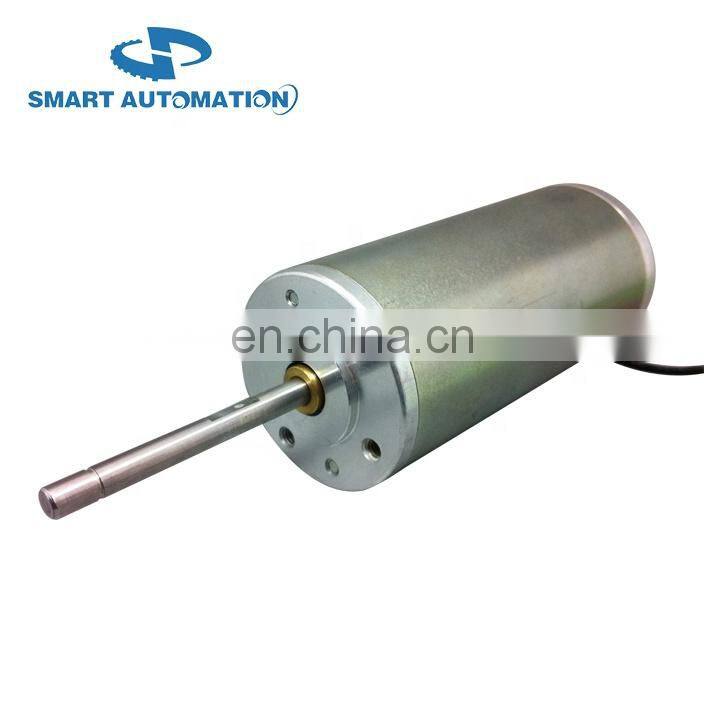

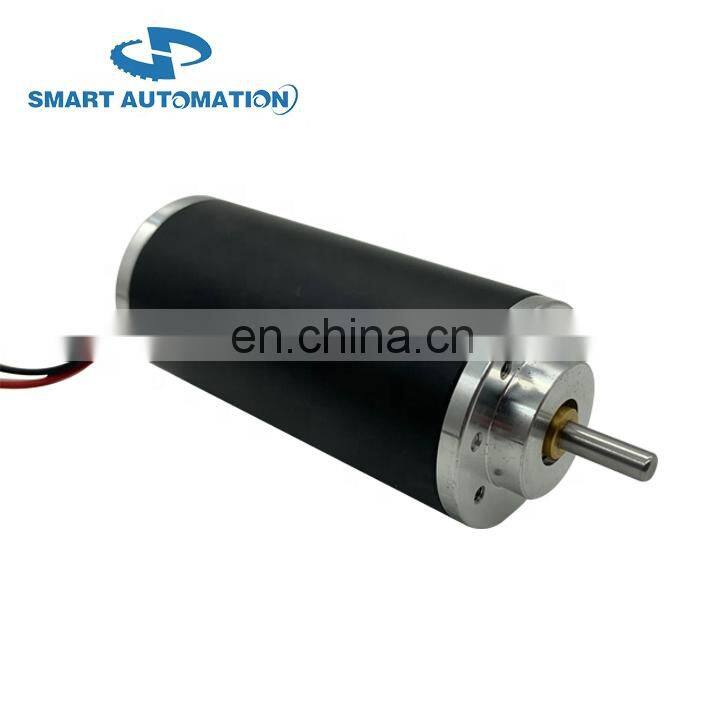

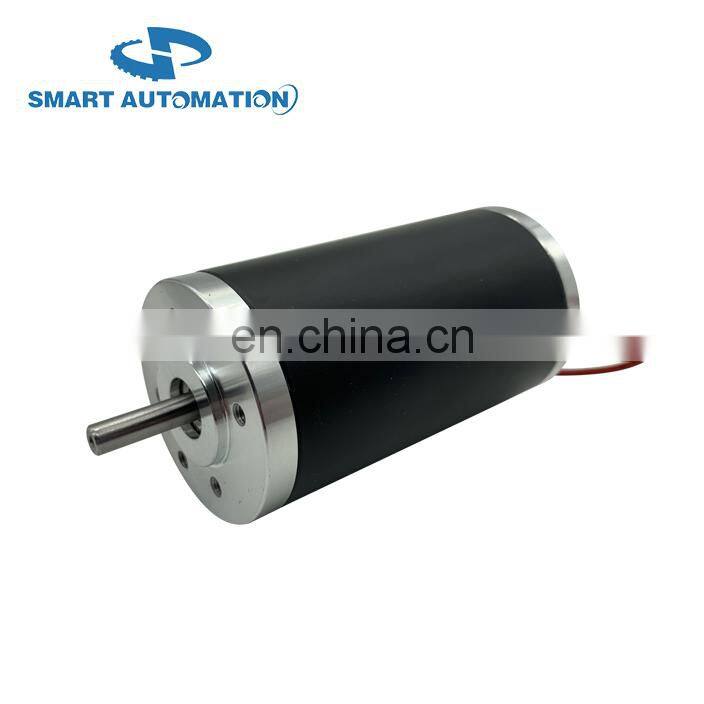

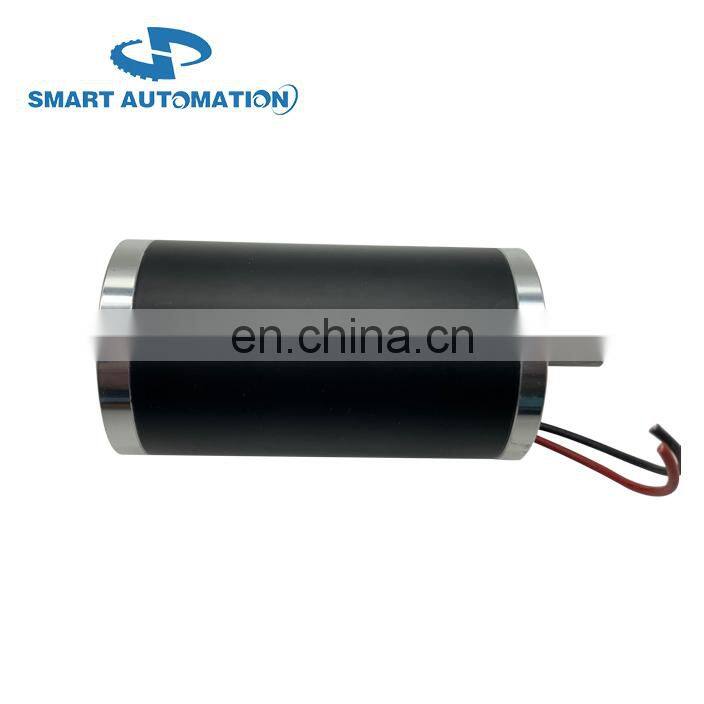

Permanent Magnet Brush DC Motor
Motor Specifications:
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 50 54
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Dia. 42mm
Big bearing version, anti-vibration
Long shaft version
Dia. 52mm type:
Single shaft version
Dual shaft version
MORE MODELS
42ZYT SERIES
52ZYT SERIES
MORE
Model | 42ZYT04B | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 4700 | 4700 | 4700 |
Continuous rated torque | mN.m | 100 | 100 | 100 |
Continuous current | A | 5.85 | 2.86 | 1.78 |
Starting torque | mN.m | 479 | 479 | 479 |
Starting current | A | 26.71 | 12.76 | 7.97 |
No load speed | rpm | 5900 | 5900 | 5900 |
No load current | A | 0.4 | 0.35 | 0.15 |
Demagnetization current | A | 52 | 24 | 14 |
Rotor inertia | gcm2 | 154 | 154 | 154 |
Weight of motor | g | 550 | 550 | 550 |
Motor length | mm | 90 | 90 | 90 |
