80mm electric bicycle vehicle use brushless dc E-bike Scooter Motor 100w 200w 300w upto 500w 800w, high efficiency long life
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
12v 18v 24v Brushless Dc Blower Power 100w 200w 300w 500w
-
42mm 52mm series dc vibration air pump motor 10v 12v 24v for medical device equipment, low noise long life EMC/EMI suppression
-
Automatic Dc Door Motor used for Door Windows and Gates Automation Opening Lifting and Sliding
-
56mm / 60mm powder metal gear planetary gearbox, rated torque upto 30Nm
-
42JXG series 42mm planetary gearhead, long life, small noise, application for brushless / brushed dc motor
-
42JX series 42mm planetary gearbox for micro dc motor, rated torque upto 10Nm
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 80RBL-series | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | customed | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Continuous Current(A) | customed | Speed(RPM) | 500rpm-15000rpm | |
| Commutation | Brushless |
Product Description
Below are only typical models.
We make customed voltage, performance, shaft, mounting...etc
We make integrated controller, encoder, gearbox, brake...etc
OPTIONS:
Rated voltage : 12v 18v 24v 36v 48v
Rated torque : 0.3Nm upto 3Nm
Rated speed: upto 12000rpm
With or without halls
With or without controller integrated

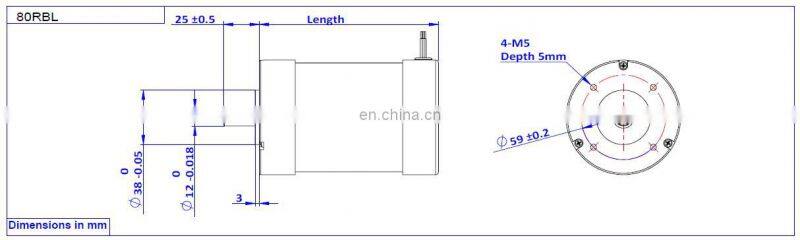

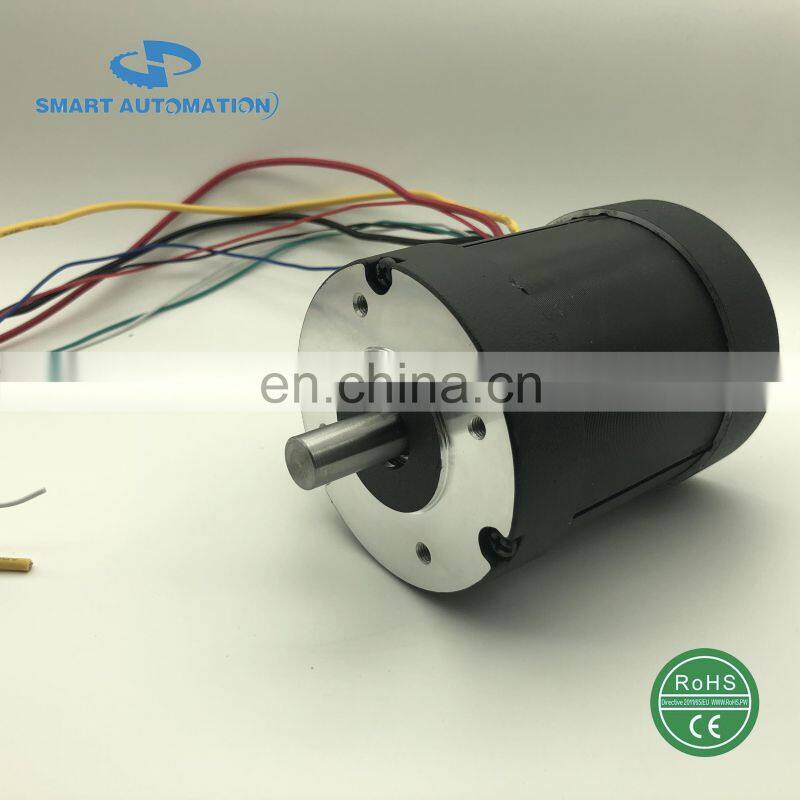

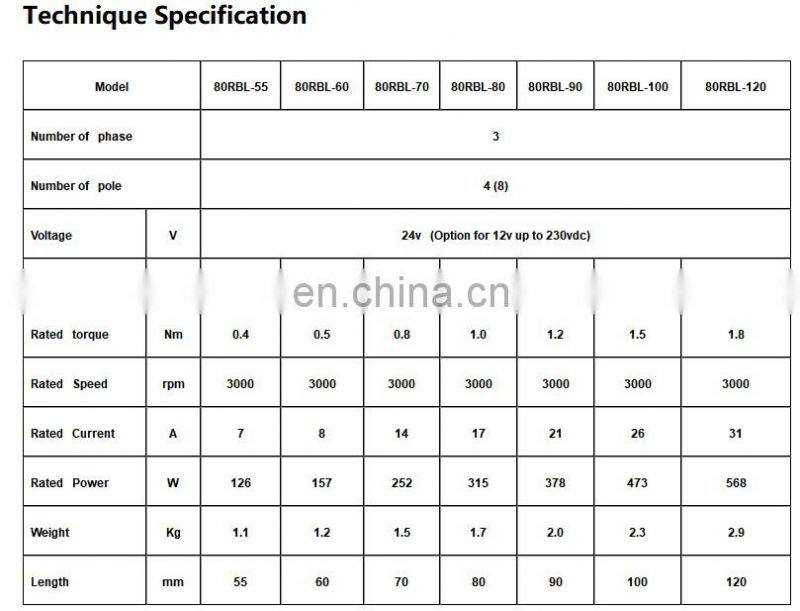

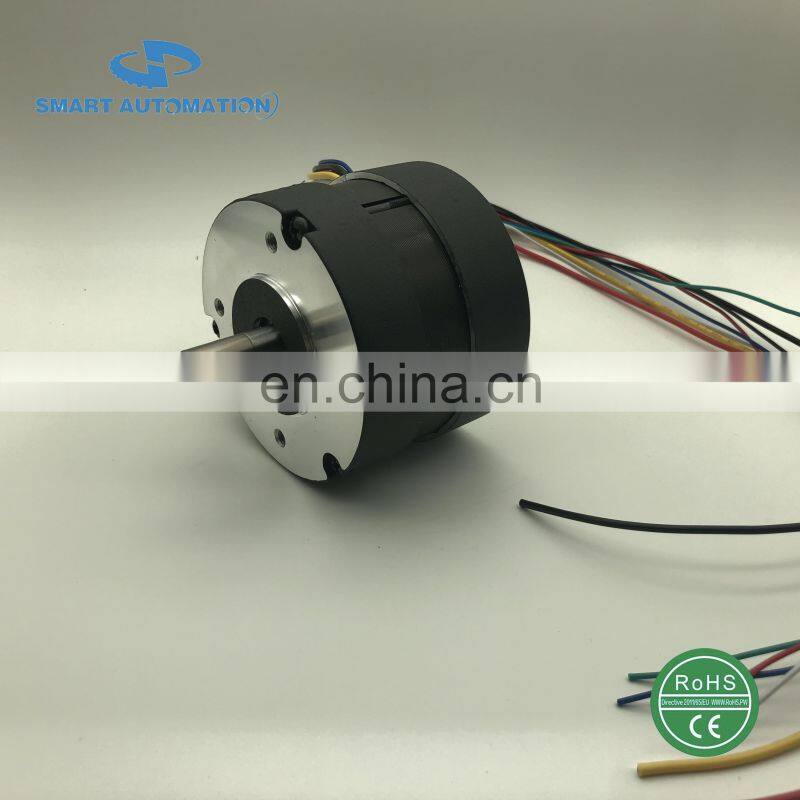

80RBL SERIES
General
Item | Specification |
Winding type | Star |
Hall effect angle | 120° (electrical angle) |
Shaft run out | 0.025mm |
Radial play | 0.06mm@450g |
End play | 0.08mm@450g |
Max.radial force | 200N@10mm from the flange |
Max.axial force | 60N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100MΩMin.500VDC |

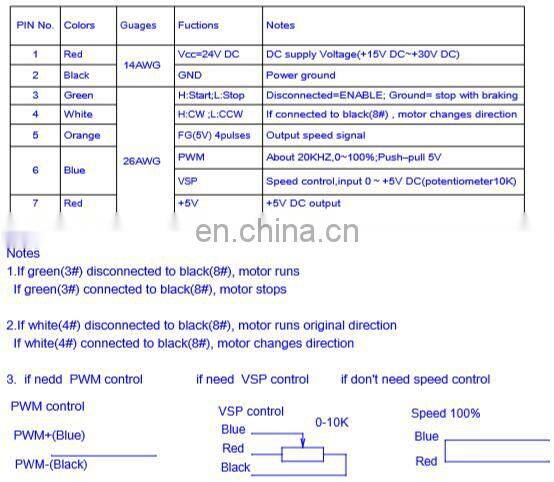

Electric connection

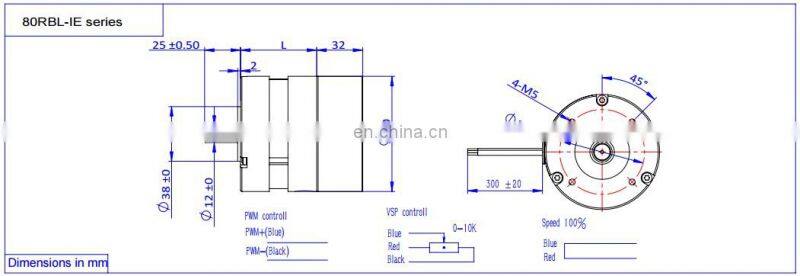

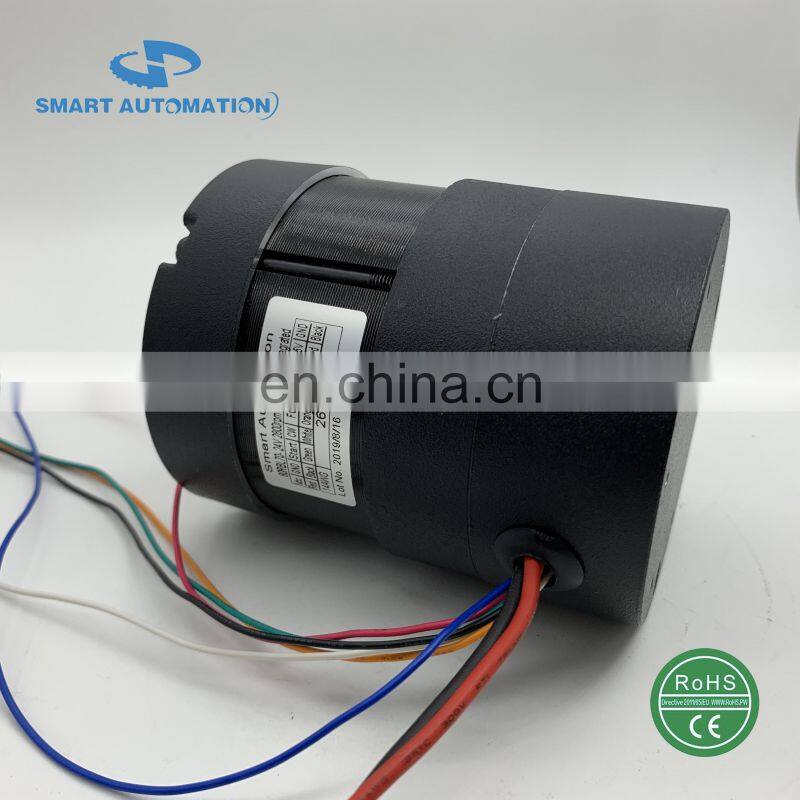

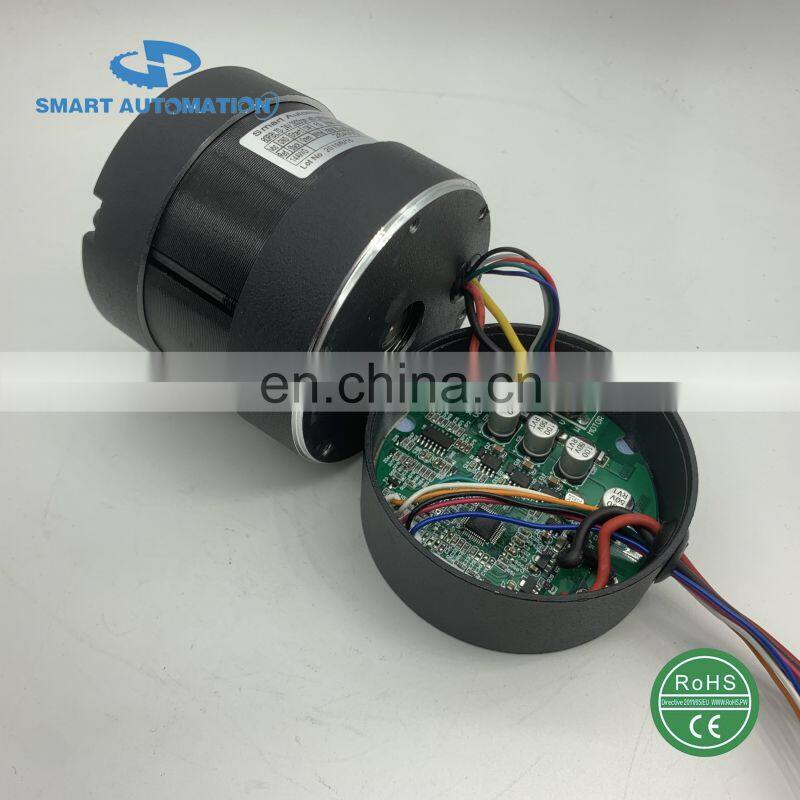

CONTROLLER INTEGRATED VERSION

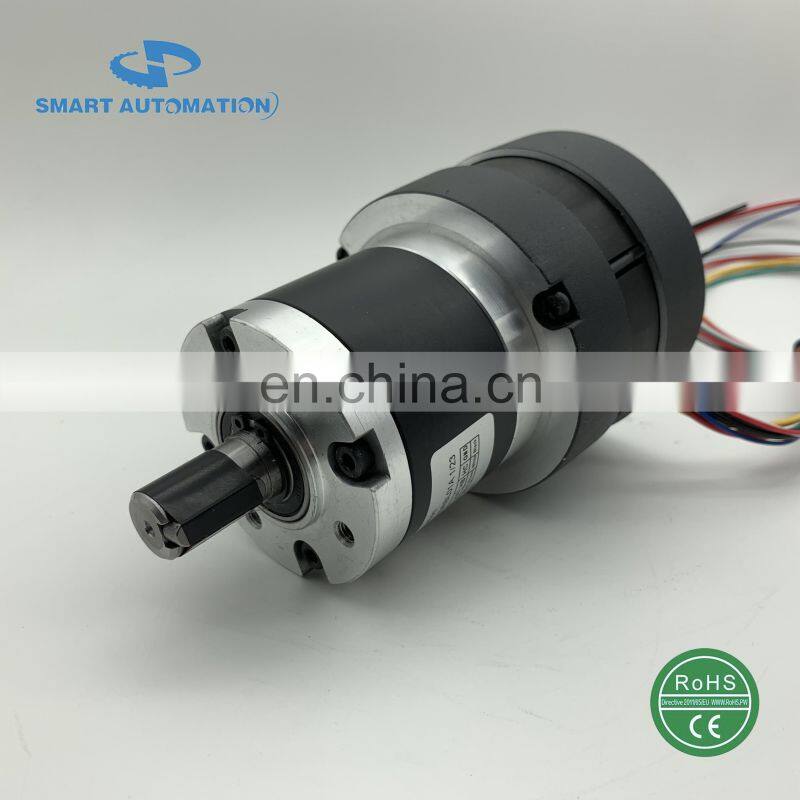

PLANETARY GEARED VERSION
WORM GEARED VERSION
