Below are only typical models.
We make customed voltage, performance, shaft, mounting...etc
OPTIONS:
Rated voltage : 12v 18v 24v 36v 48v
Rated torque : upto 2.5Nm
Rated speed: upto 12000rpm
With or without halls
With or without controller integrated

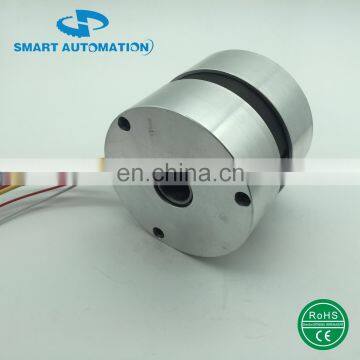

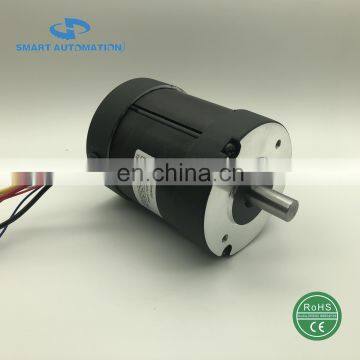

80RBL Series Round Type 80mm Brushless Dc Motor
Electric connection
Technique Specification
Model |
80RBL-55 |
80RBL-60 | 80RBL-70 | 80RBL-80 |
80RBL-90 |
80RBL-100 |
80RBL-120 | |
Number of phase | 3 | |||||||
Number of pole | 4 (8) | |||||||
Voltage | V | 24v (Option for 12v 36v 48v 60v up to 230vdc) | ||||||
No load speed | rpm | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
Rated torque | Nm |
0.4 | 0.5 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 |
Rated Speed | rpm |
3000 | 3000 | 3000 | 3000 |
3000 |
3000 |
3000 |
Rated Current | A | 7 | 8 | 14 | 17 | 21 | 26 | 31 |
Rated Power | W | 126 | 157 | 252 | 315 | 378 | 473 | 568 |
Weight | Kg | 1.1 | 1.2 | 1.5 | 1.7 | 2.0 | 2.3 | 2.9 |
Length | mm | 55 | 60 | 70 | 80 | 90 | 100 | 120 |
CONTROLLER INTEGRATED VERSION
