Home > Electrical & Electronics > Electric Motor > DC Motor > 63ZYT01- ES Permanent Magnet 12 Volt dc Electric Scooter Motor, 12v no Load 5000rpm

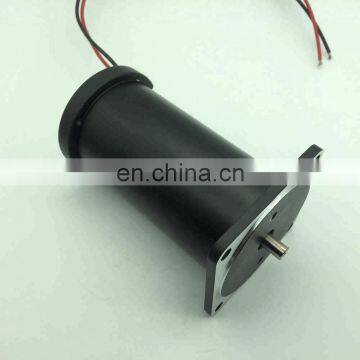

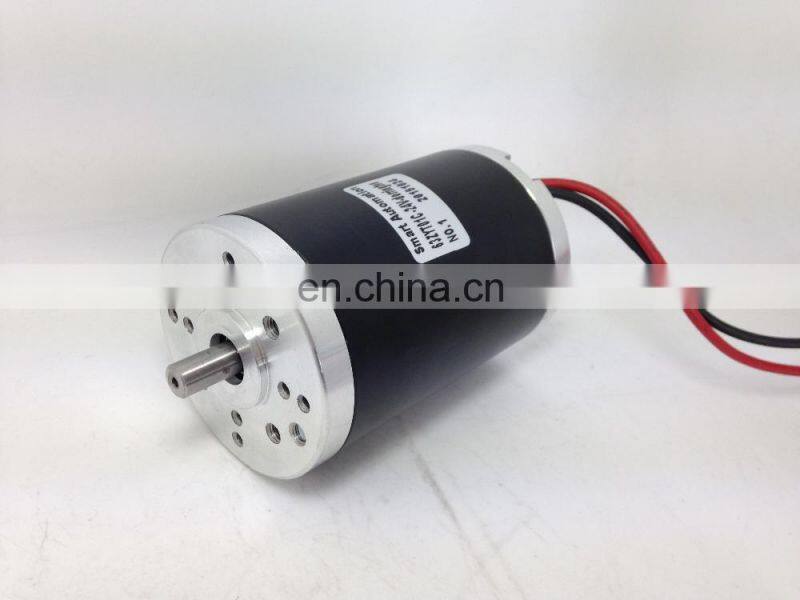

63ZYT01- ES Permanent Magnet 12 Volt dc Electric Scooter Motor, 12v no Load 5000rpm
US$ 6 - 20
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
63ZYT01- ES
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized 52mm Vehicle Automobile dc Fuel Pump MotorUS$ 10 - 20MOQ: 5 Pieces -
63mm Planetary Gearbox Golf Cart DC Motor, 12V 8N.m, Option for Electric BrakeUS$ 25 - 60MOQ: 5 Pieces
-
Micro Vibrator Motor dc 12 Volt or 24 VoltUS$ 6 - 20MOQ: 5 Pieces
-
42ZYT01A 12v 24v Dc Diaphragm Vacuum Liquid Pump MotorUS$ 8 - 15MOQ: 5 Pieces
-
48v Brushless dc Motor 400w 500w 600wUS$ 30 - 100MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
63ZYT01- ES
Type
Micro Motor
Certification
CE, ROHS
Torque
0.22N.m
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
12,
Output Power
88w
Continuous Current(A)
customed
Speed(RPM)
5000rpm no load
Commutation
Brush
Permanent Magnet Brush DC Motor 63ZYT01 Series
Motor Specifications:
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
rated vol:DC12V (24v option)
rated current:10A
no load:5000r/min
rated speed:3800r/min
rated torque:2.2KG.CM
Power:88W
weight:1KG
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
