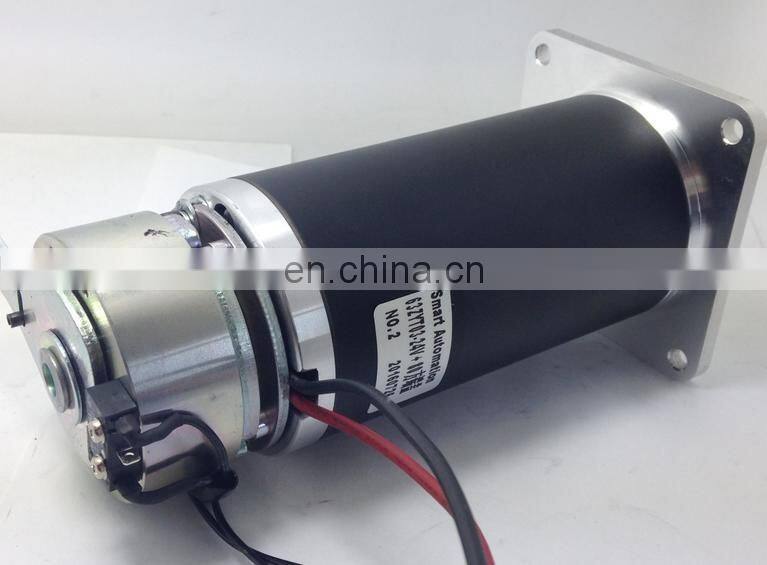

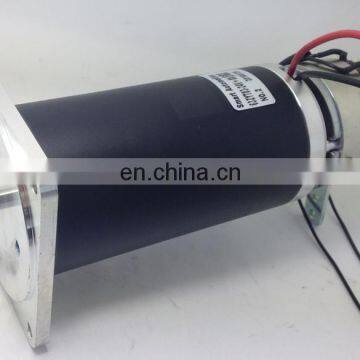

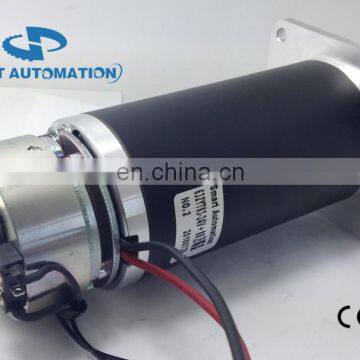

63mm 24v 200w 4500rpm Brushed Dc Motor used for mobility scooter E-scooter
USD $15 - $30
/ Piece
5 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
63ZYT01- ES permanent magnet 12 volt dc Electric Scooter Motor, 12v no load 5000rpm
-
customized 52mm vehicle automobile dc fuel pump motor
-
63mm Planetary Gearbox Golf Cart DC Motor, 12V 8N.m, option for Electric Brake
-
micro vibrator motor dc 12 volt or 24 volt
-
42ZYT01A 12v 24v Dc Diaphragm Vacuum Liquid pump motor
-
48v brushless dc motor 400w 500w 600w
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 63ZYT-SERIES | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | 0.45Nm | |
| Usage | Boat, Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 24v | Output Power | 200w | |
| Continuous Current(A) | 8a | Speed(RPM) | 4500rpm | |
| Commutation | Brush |
Product Description
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 54
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
BELOW ARE ONLY TYPICAL MODELS
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
Rated 24v dc
No load 5500rpm
Rated speed 4500rpm
Rated torque 0.45Nm
Rated current 8 A max
Output 200w rated
Options: Electric brake
