Home > Products > stepper motors > 0.9 Degree Nema 17 Stepper Motor With Step Angle 0.9 Degree

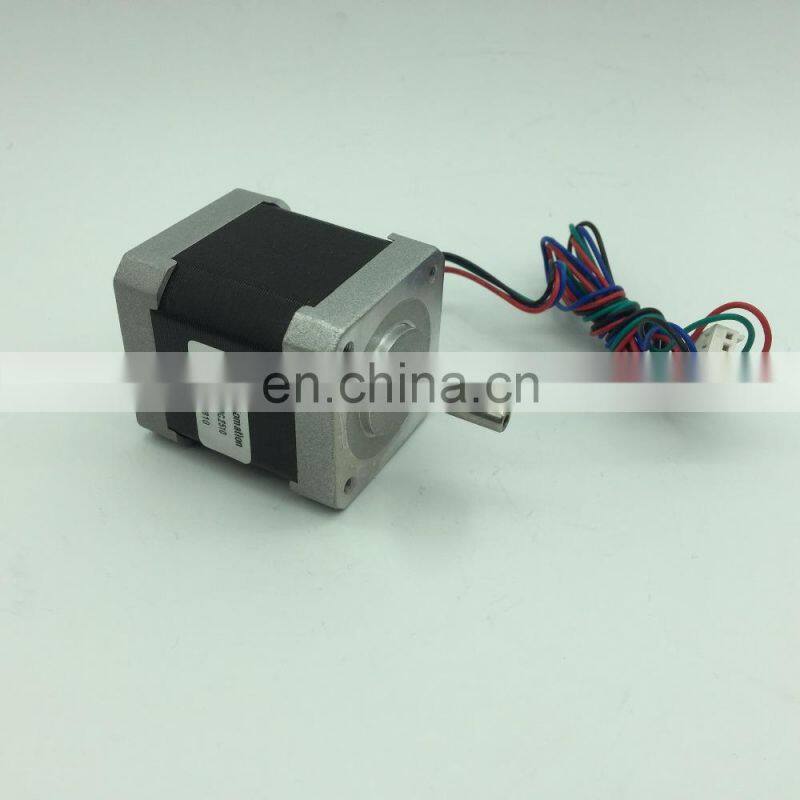

0.9 Degree Nema 17 Stepper Motor With Step Angle 0.9 Degree
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | SmartAutomation | Place of Origin | Jiangsu, China | |
| Model Number | SM42HT-M | |||
| Certification | CE, ROHS |
Product Description
Model No. | Rated Voltage | Current | Resistance | Inductance | Holding Tprque | #Of Leads | Rotor Inertia | Weight | Length | ||
Single Shaft | Double Shaft | V | A | Ω | mH | Oz-in | g-cm |
| g-cm2 | Kg | mm |
SM42HT33-0956MA | SM42HT33-0956MB | 4 | 0.95 | 4.2 | 4 | 22 | 1580 | 6 | 35 | 0.22 | 33 |
SM42HT33-0606MA | SM42HT33-0606MB | 6 | 0.6 | 10 | 9.5 | ||||||
SM42HT33-0316MA | SM42HT33-0316MB | 12 | 0.31 | 38.5 | 33 | ||||||
SM42HT33-1334MA | SM42HT33-1334MB | 2.8 | 1.33 | 2.1 | 4.2 | 30 | 2200 | 4 | |||
SM42HT38-1206MA | SM42HT38-1206MB | 4 | 1.2 | 3.3 | 4 | 36 | 2590 | 6 | 54 | 0.28 | 38 |
SM42HT38-0806MA | SM42HT38-0806MB | 6 | 0.8 | 7.5 | 7.5 | ||||||
SM42HT38-0406MA | SM42HT38-0406MB | 12 | 0.4 | 30 | 30 | ||||||
SM42HT38-1684MA | SM42HT38-1684MB | 2.8 | 1.68 | 1.65 | 4 | 50 | 3300 | 4 | |||
SM42HT47-1206MA | SM42HT47-1206MB | 4 | 1.2 | 3.3 | 4 | 44 | 3170 | 6 | 68 | 0.35 | 47 |
SM42HT47-0806MA | SM42HT47-0806MB | 6 | 0.8 | 7.5 | 10 | ||||||
SM42HT47-0406MA | SM42HT47-0406MB | 12 | 0.4 | 30 | 38 | ||||||
SM42HT47-1684MA | SM42HT47-1684MB | 2.8 | 1.68 | 1.65 | 4.1 | 62 | 4400 | 4 | |||

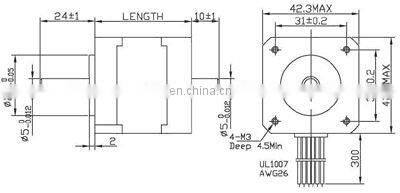

Dimensions
Wiring
