42BYG nema 17 stepper motor 42BYG step motor
US$ 4 - 10
/ Piece
2 Pieces(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
nema 17 42mm planetary gear reducer stepper motor
-
SM42HT33 nema 17 cheap stepper motor
-
SM42HT47-1684AC nema 17 3D printer stepper motor Holding torque 5kg.cm, 4-pin connector crimped
-
Reprap Nema 17 stepper motor, nema 17 stepping motors for 3D Printer
-
80mm Brushed DC wheelchair motor, 12v 24v high torque, option for electric brake
-
DC Electric Wheel Chair Motor Small Size Big Power 12v 24v rated 4500rpm 200w
Product Details
| Brand Name | SmartAutomation | Place of Origin | Jiangsu, China | |
| Model Number | 42BYG series | |||
| Certification | CE, ROHS |
Product Description

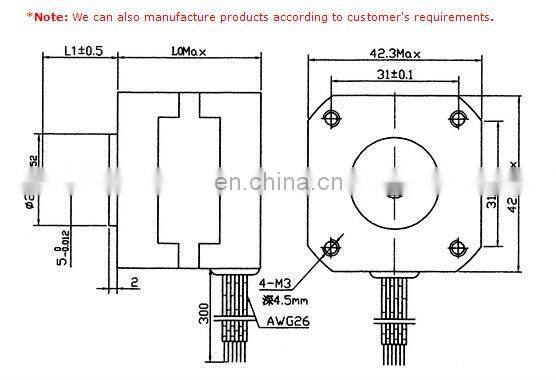

Mode | Phase Number | Current (A) | Resistance (Ω) | Inductance (mH) | Max.Static torque (kg.cm) | Moment of inertia (g.cm2) | Weight (kg) | Overall Dimension | Connection Diagram | Figuration Drawing | |
L0(mm) | L1(mm) | ||||||||||
42BYG013 | 4 | 0.2 | 3 | 39 | 1 | 20 | 0.20 | 33.5 | 16 | wdg.B | |
42BYG014 | 4 | 0.45 | 19 | 13 | 1.3 | 20 | 0.20 | 33.5 | 16 | wdg.B | |
42BYG015 | 4 | 0.3 | 40 | 19 | 1.25 | 20 | 0.20 | 33.5 | 16 | wdg.B | |
42BYG016 | 4 | 0.16 | 75.0 | 55.0 | 0.9 | 20 | 0.20 | 33.5 | 16 | wdg.B | |
42BYG019 | 4 | 0.28 | 39.4 | 23.5 | 1.2 | 20 | 0.20 | 33.5 | 16 | wdg.B | |
42BYG020 | 4 | 0.60 | 20.0 | 14.0 | 1.7 | 20 | 0.20 | 33.5 | 16 | wdg.B | |
42BYG023 | 2 | 0.40 | 30.0 | 36.0 | 2.1 | 20 | 0.22 | 33.5 | 16 | wdg.A | |
42BYG205 | 4 | 0.16 | 75 | 65 | 1.3 | 20 | 0.24 | 38 | 24 | wdg.B | |
42BYG206 | 2 | 1.2 | 2.7 | 5 | 2.4 | 20 | 0.24 | 38 | 24 | wdg.A | |
42BYG228 | 4 | 0.4 | 30 | 22 | 2.0 | 20 | 0.24 | 38 | 24 | wdg.B | |
42BYG304 | 2 | 0.3 | 40 | 80 | 2.8 | 20 | 0.26 | 44 | 20 | wdg.A | |
Options:
- -1.8 and 0.9 degrees(1.2 and 3.6 degrees for some models)
- -square, round, high torque, standard versions
- -Up to four stack lengths, several windings in each
- -Four, six or eight lead wires, or conduit boxes
- -single shaft, double shaft, hollow , screw shaft options
- -Customization and motor adders available
- -high quality products, the most cost-effective from China
