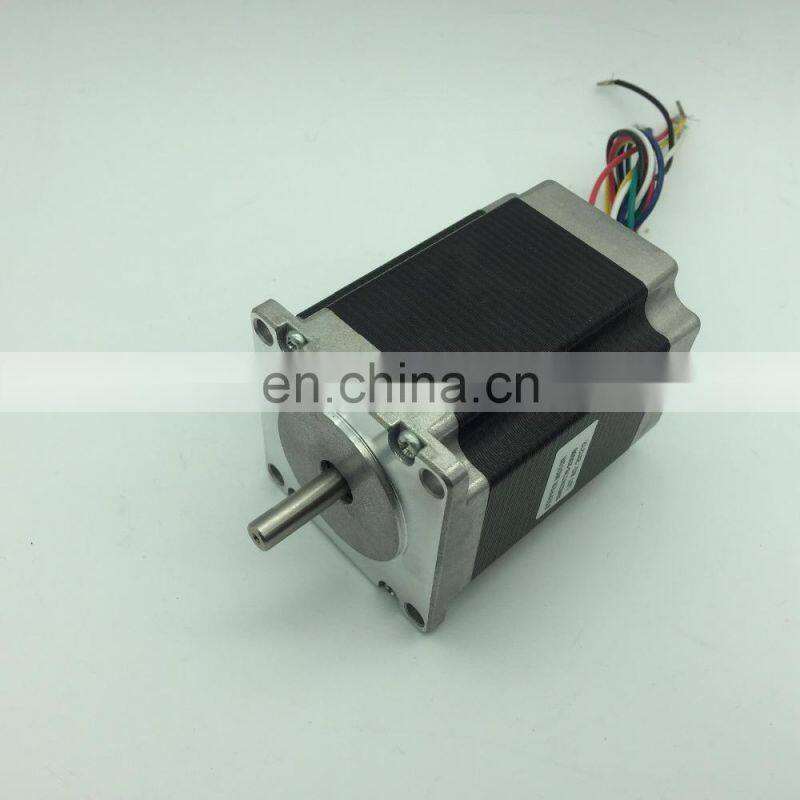

nema 23 hybrid stepping motor

Model No.

Rated
Voltage

Current
/Phase

Resistance
/Phase

Inductance
/Phase

Holding
Torque

# of Leads

Rotor
Inertia

Weight

Detent
Torque

Length

Single Shaft

Double Shaft

V

A

Ω

mH

kg-cm

g-cm2

kg

kg-cm

mm

SM57HT41-1006A

SM57HT41-1006B

5.7

1

5.7

5.4

3.9

6

120

0.45

0.21

41

SM57HT41-2006A

SM57HT41-2006B

2.8

2

1.4

1.4

3.9

6

SM57HT41-3006A

SM57HT41-3006B

1.9

3

0.63

0.6

3.9

6

SM57HT41-2804A

SM57HT41-2804B

2

2.8

0.7

1.4

5.5

4

SM57HT51-1006A

SM57HT51-1006B

6.6

1

6.6

8.2

7.2

6

275

0.65

0.36

51

SM57HT51-2006A

SM57HT51-2006B

3.3

2

1.65

2.2

7.2

6

SM57HT51-3006A

SM57HT51-3006B

2.2

3

0.74

0.9

7.2

6

SM57HT51-2804A

SM57HT51-2804B

2.3

2.8

0.83

2.2

10.1

4

SM57HT56-1006A

SM57HT56-1006B

7.4

1

7.4

10

9.0

6

300

0.7

0.4

56

SM57HT56-2006A

SM57HT56-2006B

3.6

2

1.8

2.5

9.0

6

SM57HT56-3006A

SM57HT56-3006B

2.3

3

0.75

1.1

9.0

6

SM57HT56-2804A

SM57HT56-2804B

2.5

2.8

0.9

2.5

12.6

4

SM57HT64-2006A

SM57HT64-2006B

3.6

2

1.8

2.5

10.5

6

380

0.85

0.5

64

SM57HT64-3004A

SM57HT64-3004B

2.4

3

0.8

2.3

15.0

4

380

0.85

0.5

64

SM57HT76-1006A

SM57HT76-1006B

8.6

1

8.6

14

13.5

6

480

1

0.68

76

SM57HT76-2006A

SM57HT76-2006B

4.5

2

2.25

3.6

13.5

6

SM57HT76-3006A

SM57HT76-3006B

3

3

1

1.6

13.5

6

SM57HT76-2804A

SM57HT76-2804B

3.2

2.8

1.13

3.6

18.9

4

SM57HT82- 3004A

SM57HT82- 3004B

3.6

3

1.2

4

22

4

600

1.2

1

82

SM57HT82- 5004A

SM57HT82-5004 B

3

5

0.6

1.5

22

4

SM57HT112-3004 A

SM57HT112- 3004B

4.8

3

1.6

6.8

28

4

800

1.4

1.2

112

SM57HT112-4204 A

SM57HT112- 4204B

3.8

4.2

0.9

3.8

28

4
