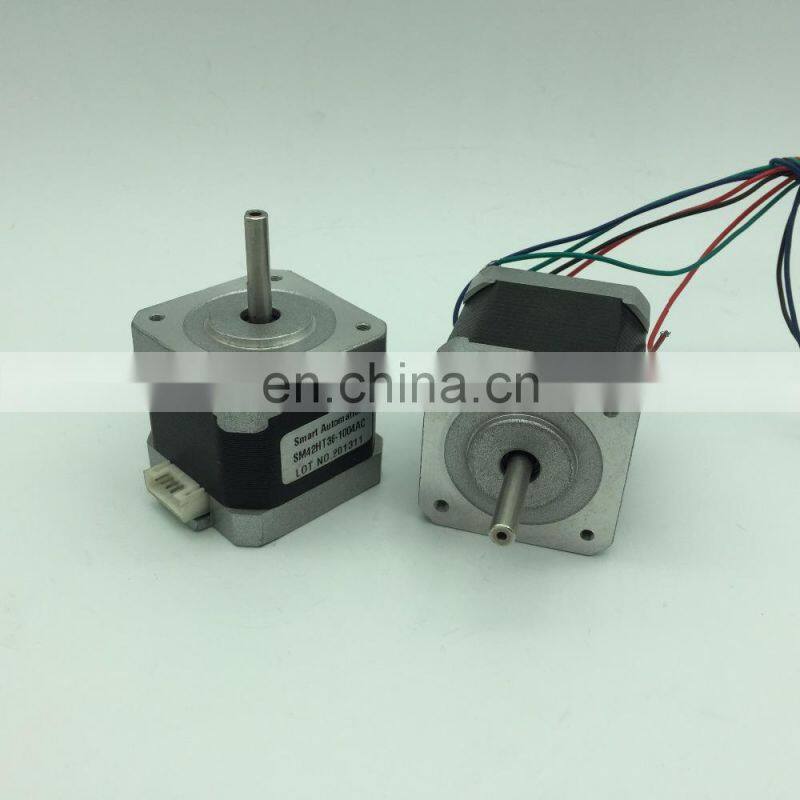

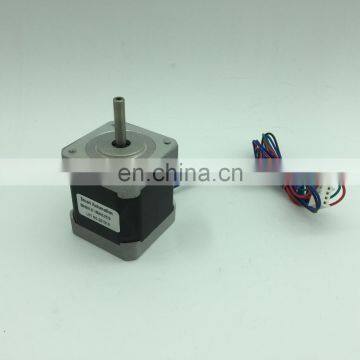

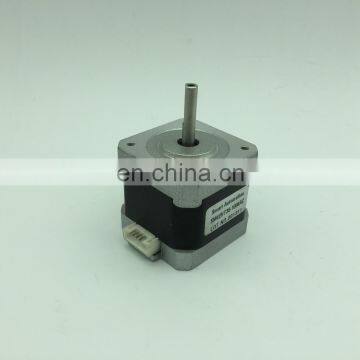

3.6 Degree Nema 17 Size 42mm High Torque Hybrid Stepping Motor
US$ 6 - 15
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
SmartAutomation
Place of Origin:
Jiangsu, China
Model Number:
SM42HT34-0954DA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SM57HT76-2804A Nema 23 Bipolar Stepper Motor 18.9kg.cmUS$ 7 - 15MOQ: 2 Pieces -
SM42HT38-1684 HB Stepper Motor CE and RoHs Holding Torque 3.6kg.cmUS$ 4 - 10MOQ: 2 Pieces
-
42BYGH Series High Torque Nema 17 Stepping MotorUS$ 4 - 10MOQ: 2 Pieces
-
85BYGH450C-01 4 Phase Nema 34 Step Motor, Low Current 2A, High Torque 63kg.cmUS$ 12 - 50MOQ: 5 Pieces
-
85BYGH450A-06 2 Phase Nema 34 Stepping Motor With Pully on ShaftUS$ 18 - 35MOQ: 5 Pieces
Brand Name
SmartAutomation
Place of Origin
Jiangsu, China
Model Number
SM42HT34-0954DA
Certification
CE, ROHS
3.6° Nema 17, Size 42mm High Torque Hybrid Stepping Motor
Technique parameter:
Technique parameter:
Item | Specification |
Step Angle Accuracy | ±5%(full step,no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80°CMax.(rated current,2 phase on) |
Ambient Temperature | -10°C-+50°C |
Insulation Resistance | 100MΩMin.500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.06Max.(450 g-load) |
Shaft Axial Play | 0.08Max.(450 g-load) |
Technique Specification
Model No. | Rated Voltage | Current | Resistance | Inductance | Holding | #Of Leads | Rotor Inertia | Weight | Length | ||
Single Shaft | Double Shaft | V | A | Ω | mH | Oz-in | g-cm |
| g-cm2 | Kg | mm |
SM42HT34-0954DA | SM42HT34-0954DB | 9.31 | 0.095 | 98 | 200 | 7.2 | 530 | 4 | 20 | 0.20 | 34 |
SM42HT38-0954DA | SM42HT38-0954DB | 9.98 | 0.095 | 105 | 330 | 9.7 | 700 | 4 | 23 | 0.23 | 38 |
Dimensions
Wiring Diagram
