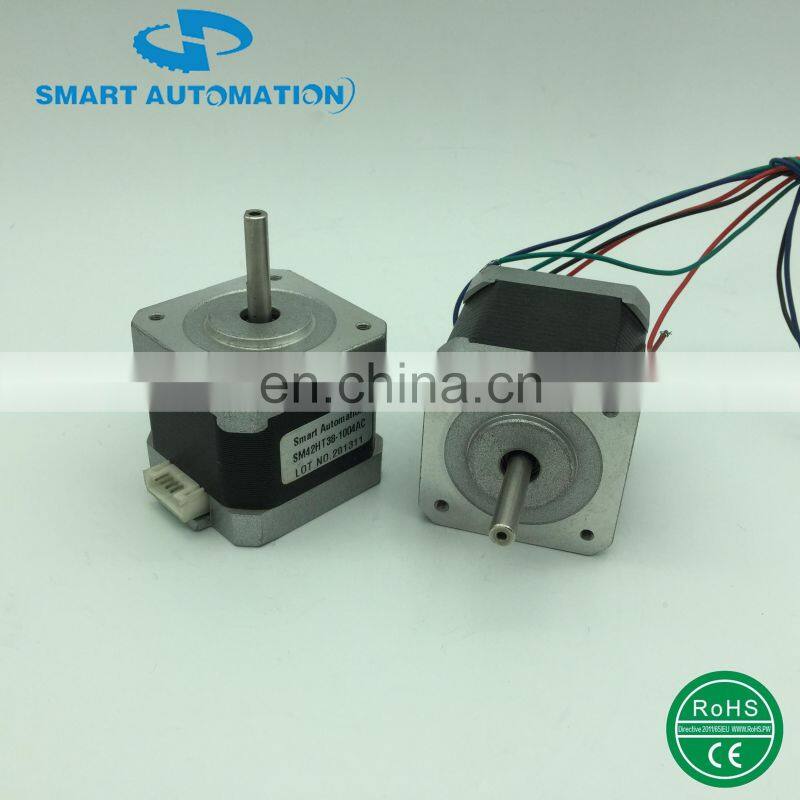

Good Quality Nema 17 Stepper Motor, Step Angle 1.8 Degree or 0.9 Degree
US$ 3.5 - 10
/ Piece
5 Pieces(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | SmartAutomation | Place of Origin | Jiangsu, China | |
| Model Number | SM42HT | |||
| Certification | CE, ROHS |
Product Description
Smart Automation Products-- Hybrid Stepper Motors--1.8° Nema 17, 42mm .
Model No. | Rated Voltage | Current | Resistance | Inductance | Holding | #Of Leads | Rotor Inertia | Weight | Length | ||
Single Shaft | Double Shaft | V | A | Ω | mH | Oz-in | g-cm |
| g-cm2 | Kg | mm |
SM42HT33-0956A | SM42HT33-0956B | 4 | 0.95 | 4.2 | 2.5 | 22 | 1580 | 6 | 35 | 0.22 | 33 |
SM42HT33-0406A | SM42HT33-0406B | 9.6 | 0.4 | 24 | 15 | ||||||
SM42HT33-0316A | SM42HT33-0316B | 12 | 0.31 | 38.5 | 21 | ||||||
SM42HT33-1334A | SM42HT33-1334B | 2.8 | 1.33 | 2.1 | 2.5 | 30 | 2200 | 4 | |||
SM42HT38-1206A | SM42HT38-1206B | 4 | 1.2 | 3.3 | 3.2 | 36 | 2590 | 6 | 54 | 0.28 | 38 |
SM42HT38-0806A | SM42HT38-0806B | 6 | 0.8 | 7.5 | 6.7 | ||||||
SM42HT38-0406A | SM42HT38-0406B | 12 | 0.4 | 30 | 30 | ||||||
SM42HT38-1684A | SM42HT38-1684B | 2.8 | 1.68 | 1.65 | 3.2 | 50 | 3600 | 4 | |||
SM42HT47-1206A | SM42HT47-1206B | 4 | 1.2 | 3.3 | 2.8 | 44 | 3170 | 6 | 68 | 0.35 | 47 |
SM42HT47-0806A | SM42HT47-0806B | 6 | 0.8 | 7.5 | 6.3 | ||||||
SM42HT47-0406A | SM42HT47-0406B | 12 | 0.4 | 30 | 25 | ||||||
SM42HT47-1684A | SM42HT47-1684B | 2.8 | 1.68 | 1.65 | 2.8 | >70 | >5000 | 4 | |||
Mode | Phase Number | Current (A) | Resistance (Ω) | Inductance (mH) | Max.Static torque (kg.cm) | Moment of inertia (g.cm2) | Weight (kg) | Overall Dimension | |
L0(mm) | L1(mm) | ||||||||
42BYGH001 | 2 | 0.95 | 2.1 | 2.3 | 1.7 | 38 | 0.20 | 34 | 24 |
42BYGH007 | 4 | 0.31 | 38.5 | 18.5 | 1.6 | 38 | 0.20 | 34 | 18 |
42BYGH011 | 2 | 0.33 | 34 | 46 | 2.4 | 38 | 0.20 | 34 | 20 |
42BYGH019 | 4 | 0.28 | 42 | 23 | 1.8 | 38 | 0.20 | 34 | 22 |
42BYGH025 | 2 | 0.95 | 2.6 | 2.6 | 1.7 | 38 | 0.20 | 34 | 18 |
42BYGH068 | 4 | 0.95 | 4.2 | 2.7 | 1.7 | 38 | 0.20 | 34 | 22 |
42BYGH101 | 2 | 1.7 | 1.5 | 2.3 | 4.2 | 38 | 0.60 | 39 | 24 |
42BYGH102 | 4 | 1.2 | 3.5 | 3.2 | 2.4 | 38 | 0.24 | 40 | 24 |
42BYGH103 | 2 | 0.4 | 30 | 66.0 | 4.0 | 38 | 0.24 | 40 | 24 |
42BYGH128 | 4 | 0.4 | 30 | 24.0 | 2.5 | 38 | 0.24 | 40 | 22 |
42BYGH204 | 2 | 1.0 | 4.3 | 6.3 | 4.0 | 82 | 0.34 | 48 | 24 |
42BYGH205 | 2 | 1.2 | 3.2 | 6.0 | 4.5 | 82 | 0.34 | 48 | 24 |
42BYGH301 | 2 | 0.8 | 9.0 | 14.0 | 4.2 | 38 | 0.60 | 48 | 24 |
42BYGH404 | 4 | 0.4 | 30 | 25.0 | 3.2 | 38 | 0.34 | 48 | 24 |
42BYGH2901 | 2 | 0.6 | 7.0 | 6.0 | 1.2 | 38 | 0.24 | 30 | 27.5 |
42BYGH2902 | 2 | 1.2 | 2.0 | 2.8 | 1.8 | 38 | 0.24 | 30 | 18 |
42BYGH3402 | 2 | 0.4 | 40 | 36 | 2.6 | 38 | 0.24 | 34 | 18 |
42BYGH3404 | 4 | 0.5 | 10.5 | 7.0 | 1.5 | 38 | 0.24 | 34 | 18 |
42BYGH3406 | 4 | 0.25 | 75 | 42 | 2.0 | 38 | 0.24 | 34 | 18 |
42BYGH3407 | 2 | 0.4 | 22.5 | 30 | 2.2 | 38 | 0.24 | 34 | 24 |
42BYGH3905 | 2 | 0.8 | 7.0 | 10 | 4.2 | 82 | 0.24 | 40 | 24 |
42BYGH3906 | 4 | 0.65 | 11.5 | 12 | 3.2 | 82 | 0.24 | 40 | 20 |
42BYGH3909 | 2 | 0.4 | 30 | 35 | 3.2 | 82 | 0.24 | 40 | 24 |
42BYGH442C | 4 | 0.3 | 42 | 40 | 2.7 | 82 | 0.34 | 44 | 27 |
42BYGH4404 | 2 | 0.33 | 42 | 95 | 4.2 | 82 | 0.60 | 44 | 24 |
42BYGH4408 | 4 | 1.0 | 5.0 | 6.8 | 3.5 | 82 | 0.34 | 44 | 24 |
42BYGH4802 | 2 | 3.0 | 0.5 | 1.1 | 5.0 | 82 | 0.34 | 48 | 17 |
42BYGH4803 | 2 | 1.5 | 2.8 | 4.8 | 5.0 | 82 | 0.34 | 48 | 17 |
42BYGH4804 | 4 | 0.4 | 28 | 22 | 3.2 | 82 | 0.34 | 48 | 24 |
42BYGH4806 | 4 | 1.0 | 52 | 5.2 | 3.8 | 82 | 0.34 | 48 | 24 |
42BYGH4807 | 2 | 0.5 | 19 | 32 | 4.2 | 82 | 0.34 | 48 | 24 |
AVAILABLE WITH DIFFERENT BODY LENGTH AND TORQUE

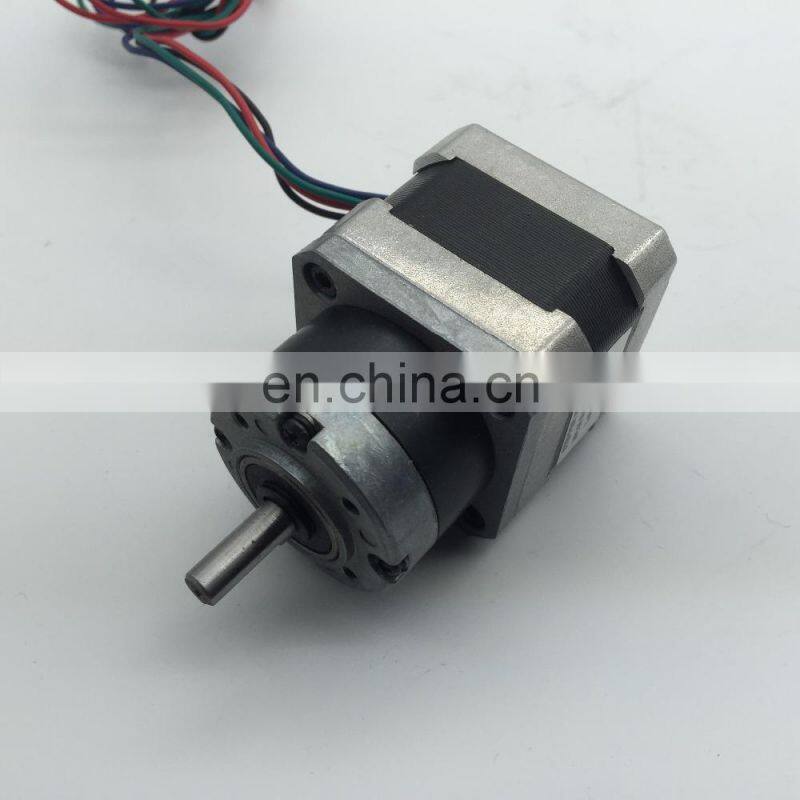

geared version
