Home > Electrical & Electronics > Electric Motor > DC Motor > 63mm High Torque Low Rpm Electric dc Planetary Gear Motor With Power off Brake and Optical Encoder

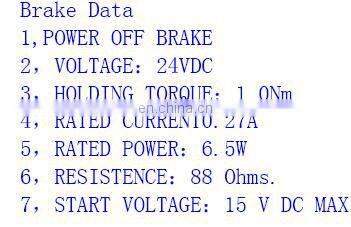

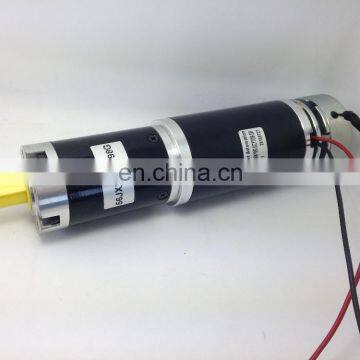

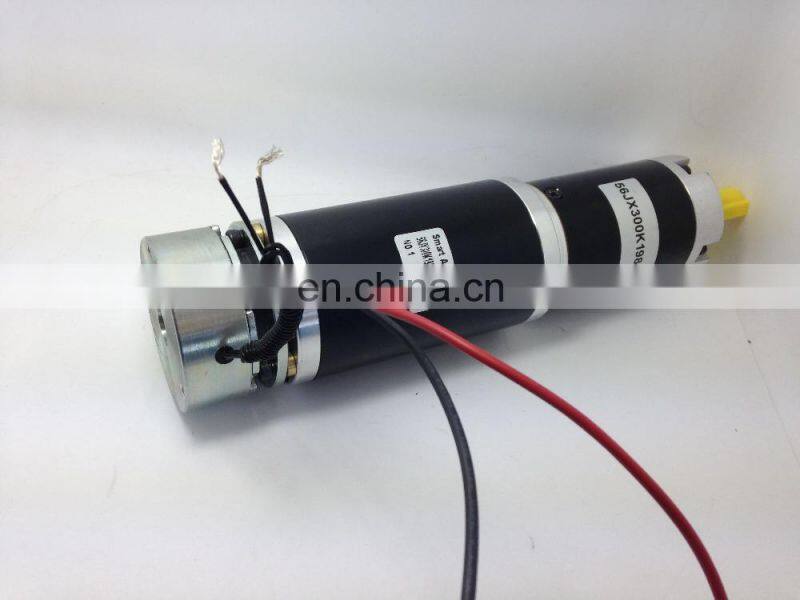

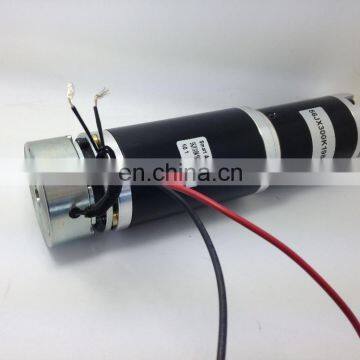

63mm High Torque Low Rpm Electric dc Planetary Gear Motor With Power off Brake and Optical Encoder
US$ 25 - 100
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
SmartAutomation
Place of Origin:
Jiangsu, China
Model Number:
63PLG42.9+63ZYT02-24V
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
52PLG.63ZYT SERIES 63mm dc Planetary Gearmotor SpecificationUS$ 25 - 60MOQ: 5 Pieces -
IP 54 52mm SERIES pm dc Planetary GearmotorUS$ 25 - 60MOQ: 5 Pieces
-
52JX300K.52ZYT dc Planetary Gearhead Motor Catalogue, With Rated Torque Upto 30N.mUS$ 18 - 60MOQ: 5 Pieces
-
56JXE300K.63ZYT Planetary Gearhead 12V 24V dc Gear Motor Rated Torque Upto 30NmUS$ 22 - 60MOQ: 5 Pieces
-
42JXE.42ZYT Dc Planetary Gear Reducing Motor Rated Torque Upto 15N.mUS$ 20 - 50MOQ: 5 Pieces
Brand Name
SmartAutomation
Place of Origin
Jiangsu, China
Model Number
63PLG42.9+63ZYT02-24V
Type
Gear Motor
Certification
CE, ROHS
Torque
12N.m
Usage
Car, Electric Bicycle, Fan, Other
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
24
Continuous Current(A)
customed
Speed(RPM)
11 rpm
Commutation
Brush

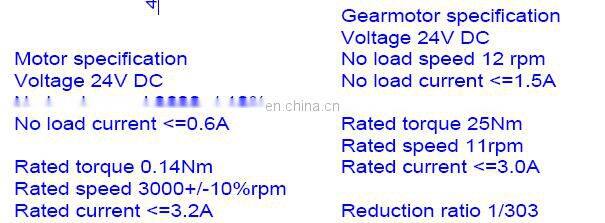

Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
