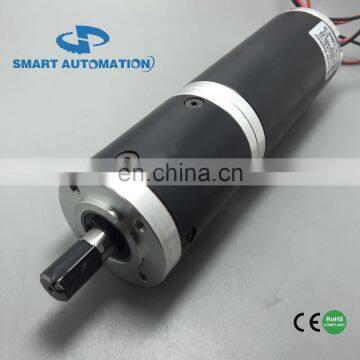

IP 54 52mm SERIES pm dc Planetary Gearmotor

Changzhou Smart Automation Motor Manufacturing Co., Ltd.
IP 54 52mm SERIES pm dc Planetary Gearmotor thumbnail-1
IP 54 52mm SERIES pm dc Planetary Gearmotor thumbnail-2
IP 54 52mm SERIES pm dc Planetary Gearmotor thumbnail-3
IP 54 52mm SERIES pm dc Planetary Gearmotor photo-1

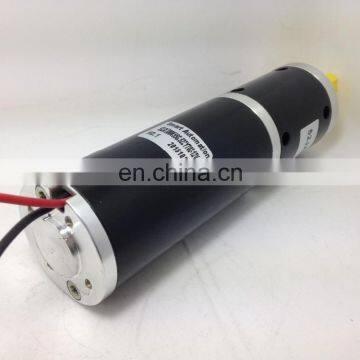

IP 54 52mm SERIES pm dc Planetary Gearmotor photo-2

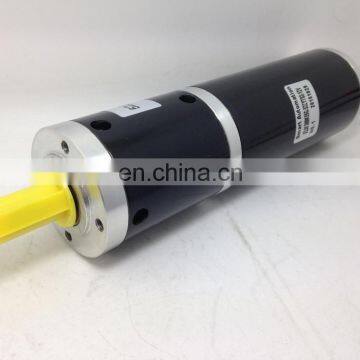

IP 54 52mm SERIES pm dc Planetary Gearmotor photo-3
US$ 25 - 60 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
52PLG.52ZYT
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Smart Automation
Place of Origin Jiangsu, China
Model Number 52PLG.52ZYT
Type Gear Motor
Certification CE, ROHS
Torque 1N.m~25N.m
Usage Boat, Car, Fan, Home Appliance
Construction Permanent Magnet
Efficiency IE 1
Protect Feature Drip-proof
Voltage(V) 12~48v
Output Power 20w~200w
Continuous Current(A) customed
Speed(RPM) 5rpm~800rpm
Commutation Brush





52PLG.52ZYT SERIES  PM DC PLANETARY GEAR MOTOR  (with max. rated torque 25N.m)

52PLG.52ZYT SERIES Gear Motor Drawing:







52ZYT Series Motor Specification:

Ball bearing Hard ferrite magnet, 2- poles Protection class IP 50 Insulation class: B  CE and ROHS certified

Model

Rated voltage V

No load speed rpm

No load current  A

Rated speed  rpm

Rated torque  N.m

Output power W

Rated current  A

Stall torque          N.m

Stall current   A

Motor Length  mm

52ZYT01A-12V

12

4490

0.58

3997

0.1

42

4.8

0.91

38.6

95

52ZYT01A-24V

24

4200

0.32

3707

0.1

39

2.3

0.85

16.4

95

52ZYT02A-12V

12

4200

0.45

3500

0.2

73

8.7

1.2

50.0

110

52ZYT02A-24V

24

4200

0.45

3500

0.2

73

4.2

1.2

23.9

110

52ZYT03A-12V

12

3200

0.44

2771

0.155

45

5.2

1.154

35.6

125

52ZYT03A-24V

24

3250

0.32

2779

0.170

49

2.8

1.173

17.6

125



We provide customized voltage, winding, shaft, mounting, and lead configurations

Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder











52PLG Planetary Gearbox Specification:

Reduction ratio

1/3.65

1/5.36

1/6.55

1/8.63

1/13.3

1/19.5

1/23.9

1/31.5

1/35.1

1/42.9

1/46.2

1/56.5

1/71.4

1/87.3

Number of gear trains

1

1

1

1

2

2

2

2

2

2

2

2

3

3

Gearbox Length (L) (mm)

66.4

66.4

66.4

66.4

82.8

82.8

82.8

82.8

82.8

82.8

82.8

82.8

99.2

99.2

Transmission efficiency

90%

90%

90%

90%

81%

81%

81%

81%

81%

81%

81%

81%

73%

73%

Max. rated transmission torque (N.m)

4

4

4

4

12

12

12

12

12

12

12

12

25

25

Max. permissible load in short time  (N.m)

12

12

12

12

36

36

36

36

36

36

36

36

75

75

Reduction ratio

1/114.9

1/128.1

1/154

1/156.6

1/168.8

1/188.2

1/206.3

1/247.9

1/271.8

1/281

1/303

1/370.2

1/399.2

1/488.6

Number of gear trains

3

3

3

3

3

3

3

3

3

3

3

3

3

3

Gearbox Length (L) (mm)

99.2

99.2

99.2

99.2

99.2

99.2

99.2

99.2

99.2

99.2

99.2

99.2

99.2

99.2

Transmission efficiency

73%

73%

73%

73%

73%

73%

73%

73%

73%

73%

73%

73%

73%

73%

Max. rated transmission torque (N.m)

25

25

25

25

25

25

25

25

25

25

25

25

25

25

Max. permissible load in short time (N.m)

75

75

75

75

75

75

75

75

75

75

75

75

75

75













52JX300K.52ZYT SERIES  PM DC PLANETARY GEAR MOTOR  (with max. rated torque 30N.m)



52JX300K.52ZYT SERIES Gear Motor Drawing:











52JX300K  Planetary Gearbox Specification:

Reduction ratio

1/3.6

1/4.25

1/13

1/15

1/18

1/47

1/55

1/65

1/77

1/168

1/198

1/234

1/276

1/326

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Gearbox Length (L) (mm)

46

46

57.5

57.5

57.5

68.8

68.8

68.8

68.8

88.3

88.3

88.3

88.3

88.3

Transmission efficiency

90%

90%

81%

81%

81%

73%

73%

73%

73%

66%

66%

66%

66%

66%

Max. rated transmission torque (N.m)

2

2

8

8

8

16

16

16

16

30

30

30

30

30

Max. permissible load in short time (N.m)

6

6

25

25

25

50

50

50

50

90

90

90

90

90

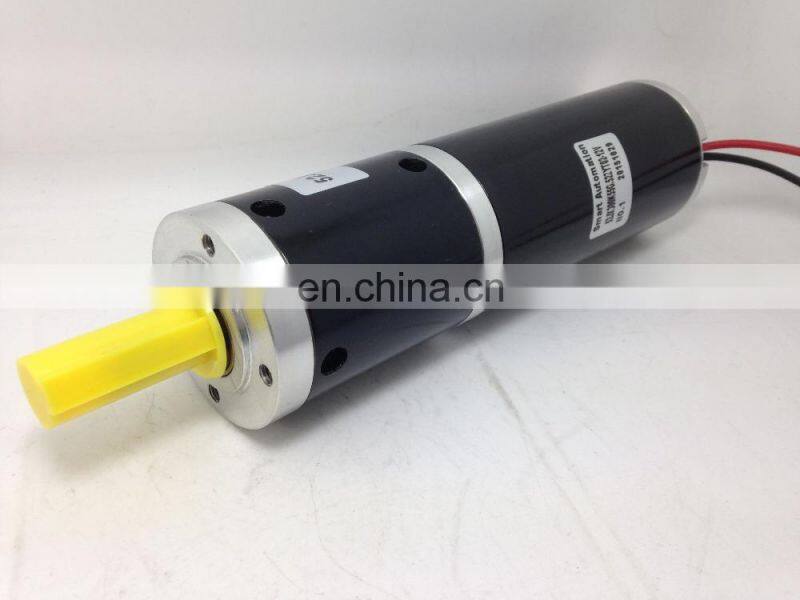

IP 54 52mm SERIES pm dc planetary gearmotor
