Home > Electrical & Electronics > Electric Motor > DC Motor > 42JXE.42ZYT Dc Planetary Gear Reducing Motor Rated Torque Upto 15N.m
42JXE.42ZYT Dc Planetary Gear Reducing Motor Rated Torque Upto 15N.m
US$ 20 - 50
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
42JXE.42ZYT SERIES
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
63WG.63ZYT Dc Worm Gear Motor Data Sheet OPTION Optical Encoder 100cpr to 2000cprUS$ 25 - 50MOQ: 5 Pieces -
Customized High Torque 12v 24v 36v 48v dc Gear Motor, Power 100w 200w 300wUS$ 15 - 60MOQ: 3 Pieces
-
OD 63mm Upto 45Nm High Torque 12v 24v Planetary Gearbox dc Geared Motor, Power 50w 100w 200wUS$ 25 - 70MOQ: 5 Pieces
-
82PLG.80ZYT Large Torque Planetary Gear dc Motor, Rated Torque Upto 120N.mUS$ 50 - 80MOQ: 5 Pieces
-
82plg.90zyt SERIES Heavy Duty Large Torque Geared dc Motor, Helical Gears High Torque Upto 120NmUS$ 60 - 100MOQ: 3 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
42JXE.42ZYT SERIES
Type
Gear Motor
Certification
CE, ROHS
Torque
upto 15Nm
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Continuous Current(A)
customed
Speed(RPM)
100rpm
Commutation
Brush

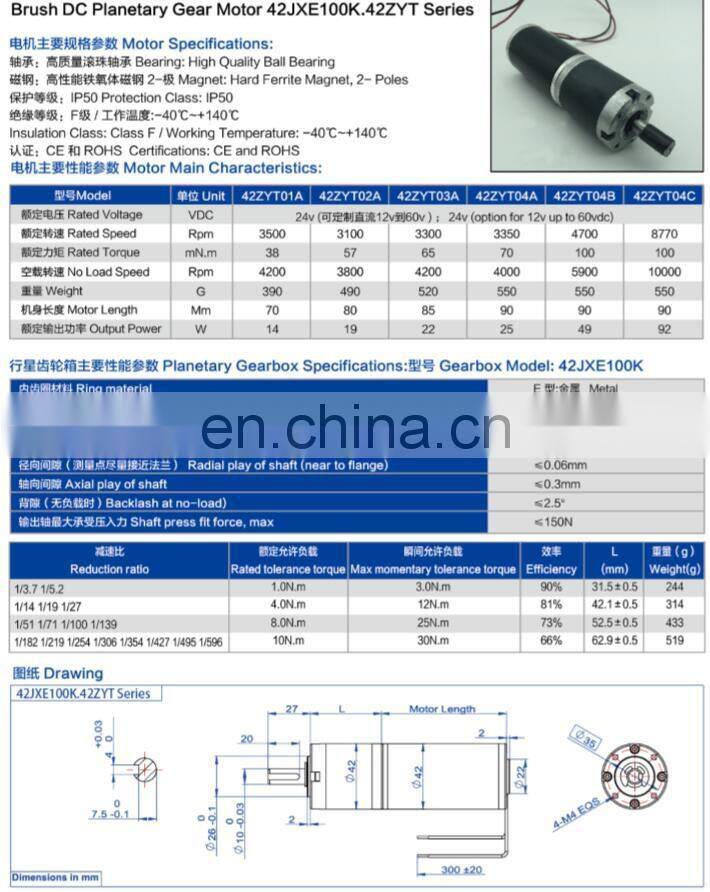

Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50 54 56 66
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
BELOW ARE ONLY TYPICAL MODELS
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
CE and ROHS certified

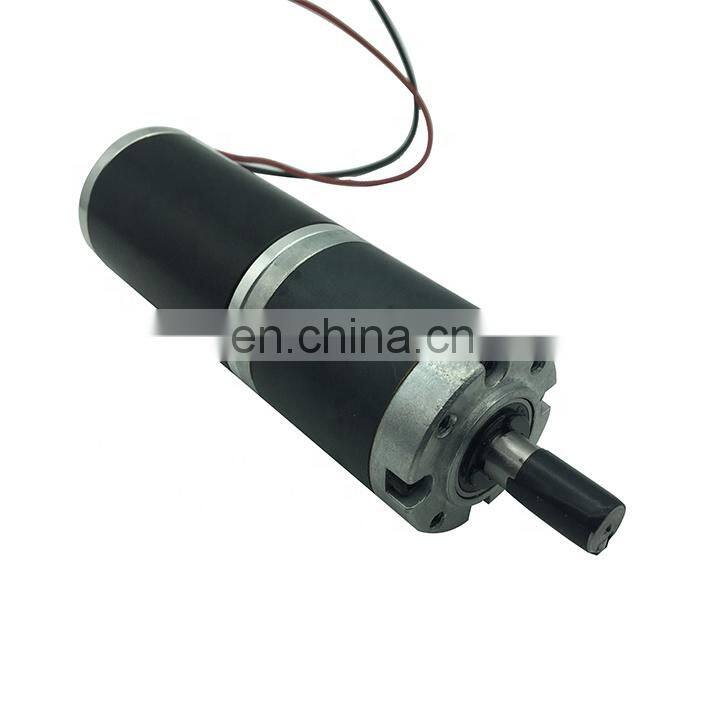

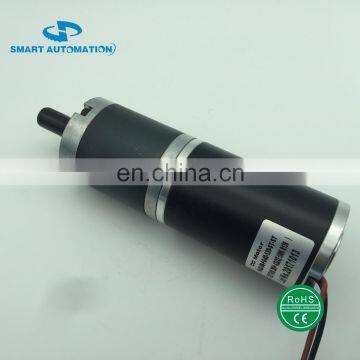

Motor picture
Brake integrated

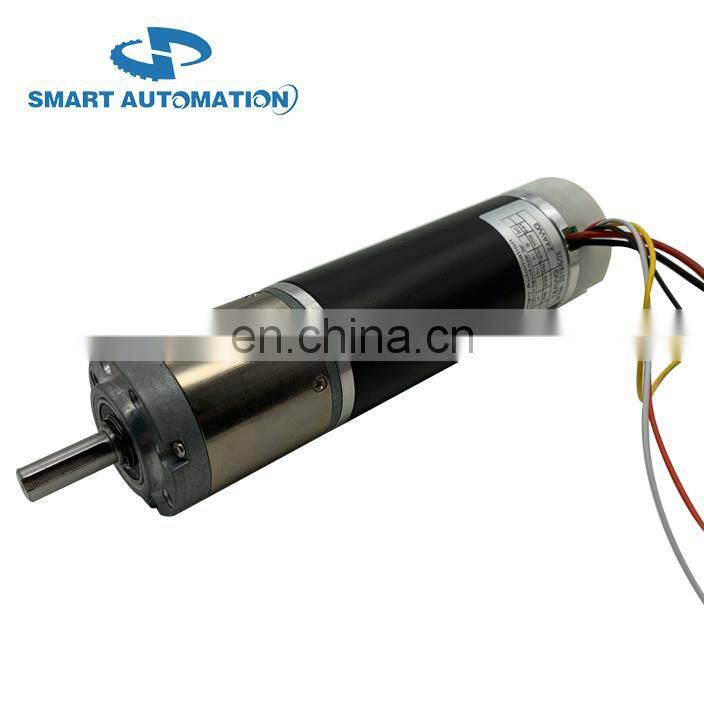

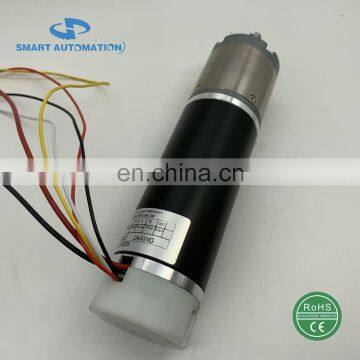

Encoder integrated

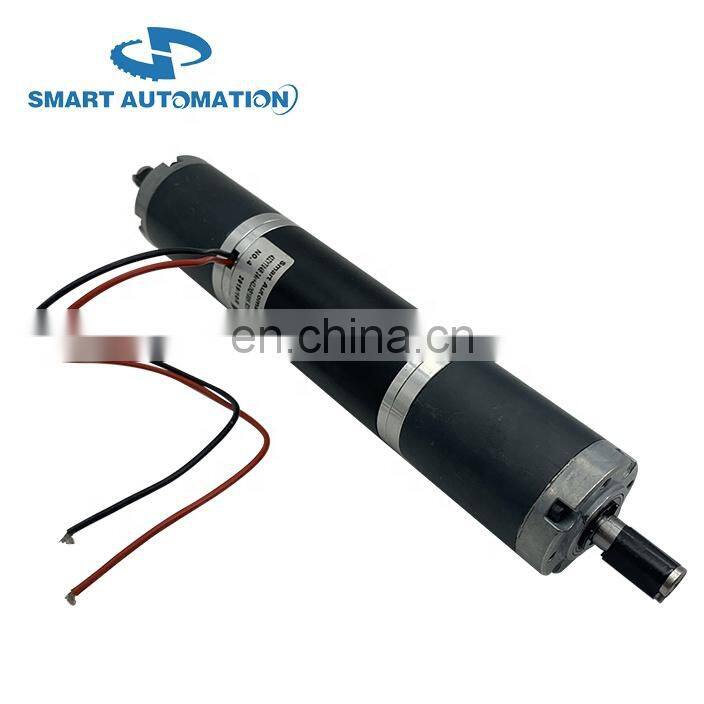

double gearboxes
