Home > Electrical & Electronics > Electric Motor > DC Motor > 52PLG.63ZYT01 SERIES dc Planetary Gear Motor 12v 24v Rated Torque Upto 25Nm

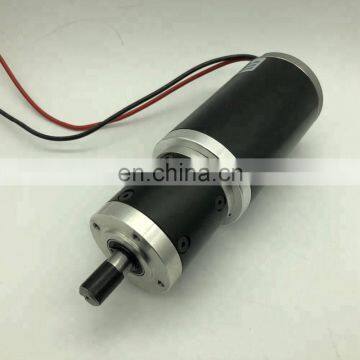

52PLG.63ZYT01 SERIES dc Planetary Gear Motor 12v 24v Rated Torque Upto 25Nm
US$ 25 - 60
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
52PLG.63ZYT01
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
62PLG206.63ZYT03 Big Torque Planetary dc Geared Motor, Rated 24v 45Nm 16rpmUS$ 30 - 32MOQ: 100 Pieces -
63mm High Torque Low Rpm Electric dc Planetary Gear Motor With Power off Brake and Optical EncoderUS$ 25 - 100MOQ: 5 Pieces
-
52PLG.63ZYT SERIES 63mm dc Planetary Gearmotor SpecificationUS$ 25 - 60MOQ: 5 Pieces
-
IP 54 52mm SERIES pm dc Planetary GearmotorUS$ 25 - 60MOQ: 5 Pieces
-
52JX300K.52ZYT dc Planetary Gearhead Motor Catalogue, With Rated Torque Upto 30N.mUS$ 18 - 60MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
52PLG.63ZYT01
Type
Gear Motor
Certification
CE, ROHS
Torque
1N.m~25N.m
Usage
Boat, Car, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
12~48v
Output Power
50w~200w
Continuous Current(A)
customed
Speed(RPM)
5rpm~800rpm
Commutation
Brush

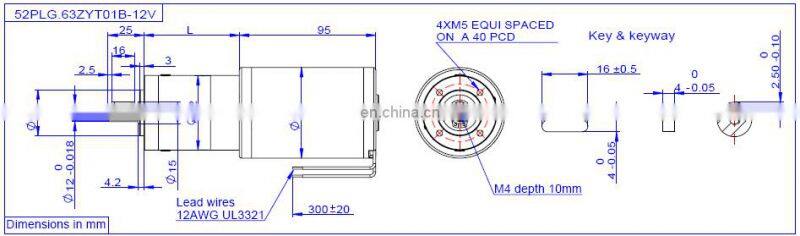

52PLG.63ZYT01 planetary gear dc motor (52mm gearbox with max. rated torque 25N.m)
Motor technical parameter
lBall bearinglHard ferrite magnet, 2- poleslProtection class IP 50lInsulation class: BlCE and ROHS certified
1. Motor technical data
Model | Rated voltage | No load speed | No load current | Rated speed | Rated torque | Output power | Rated current | Stall torque | Stall current | Motor Length |
63ZYT01A-12V | 12V | 3600rpm | 0.6A | 3100rpm | 0.137N.m | 45W | 5.2A | 0.82N.m | 27A | 95mm |
63ZYT01B-12V | 12V | 4500rpm | 0.8A | 4000rpm | 0.2Nm | 85W | 10A | 1.55Nm | 57A | 95mm |
63ZYT01A-24V | 24V | 3600rpm | 0.35A | 3300rpm | 0.14N.m | 50W | 2.7A | 1.08N.m | 18A | 95mm |
63ZYT01B-24V | 24v | 4500rpm | 0.5A | 4000rpm | 0.2Nm | 85w | 5A | 1.5Nm | 30A | 95mm |
