63WG Worm Gear dc Automatic Door Motor Sliding Door Opening and Gate Lifting
- SHANGHAI
- T/T Credit Card
You May Like
-
dc Gear Motor 12v 24v 40rpm 50rpm 60rpm 70rpm With Different Reduction
-
12v 24v 40nm dc Motor With Worm Gear Reductor OPTION 50Nm 60Nm
-
Planet dc Gearmotor 12V 24V High Torque Power 50w 100w 150w
-
High Torque dc Motor Geared 24v 4Nm 5Nm
-
200 Rpm 400 Rpm High Torque dc Motor 12v 24v With Planetary Gearhead
-
Dia.80mm High Torque 24v 250W dc Motor Rated 3000rpm
Product Details
| Brand Name | SmartAutomation | Place of Origin | Jiangsu, China | |
| Model Number | 63WG.63ZYT | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | customed | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Continuous Current(A) | customed | Speed(RPM) | customed | |
| Commutation | Brush |
Product Description

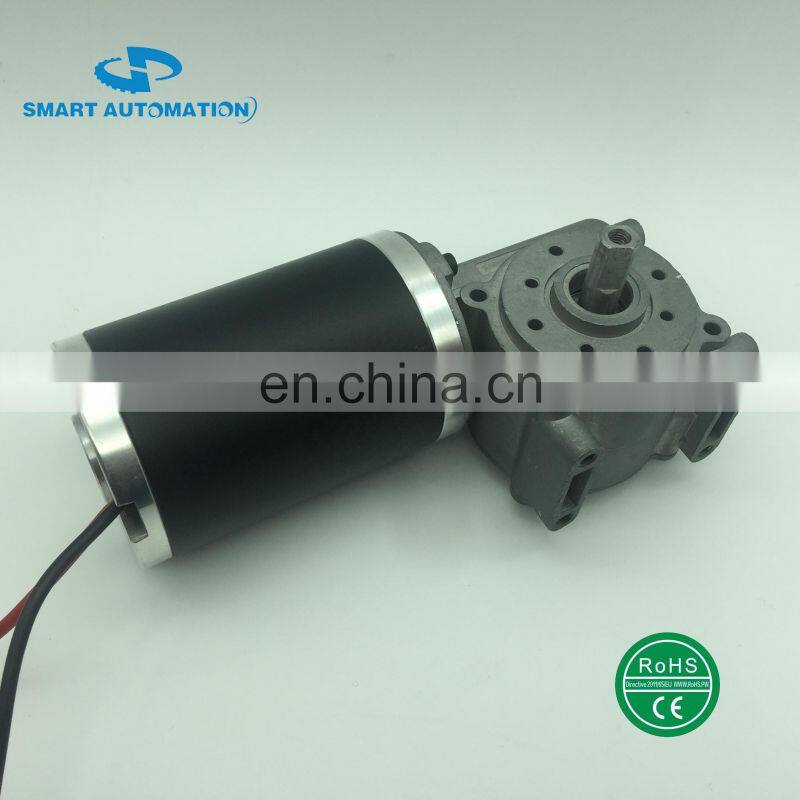

63WG.63ZYT SERIES PM DC WORM GEAR MOTOR
Motor Specifications:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 (Option for IP54)
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Motor Main Characteristics:
Model | Unit | 63ZYT01A/01L | 63ZYT02A/02L | 63ZYT03A/03L | |||
Rated Voltage | VDC | 24v (option for 12v up to 48vdc) | |||||
Rated Speed | Rpm | 3100 | 1550 | 3000 | 1800 | 3000 | 2000 |
Rated Torque | N.m | 0.15 | 0.12 | 0.31 | 0.25 | 0.41 | 0.35 |
No Load Speed | Rpm | 3600 | 1800 | 3500 | 2400 | 3500 | 2600 |
Weight | Kg | 1 | 1 | 1.2 | 1.2 | 1.35 | 1.35 |
Motor Length | Mm | 95 | 95 | 110 | 110 | 125 | 125 |
Output Power | W | 50 | 19 | 98 | 47 | 129 | 73 |
63WG Series Worm Gearbox Specifications:
Reduction ratio |
| 10 | 15 | 30 |
Efficiency |
| 0.65 | 0.55 | 0.45 |
Continuous torque | Ncm | Up to 1000(metallic gears) / Up to 400(non-metallic gears) | ||
Weight of gearbox | kg | 0.4 | ||
Axial load/radial load | N | 300/350 | ||

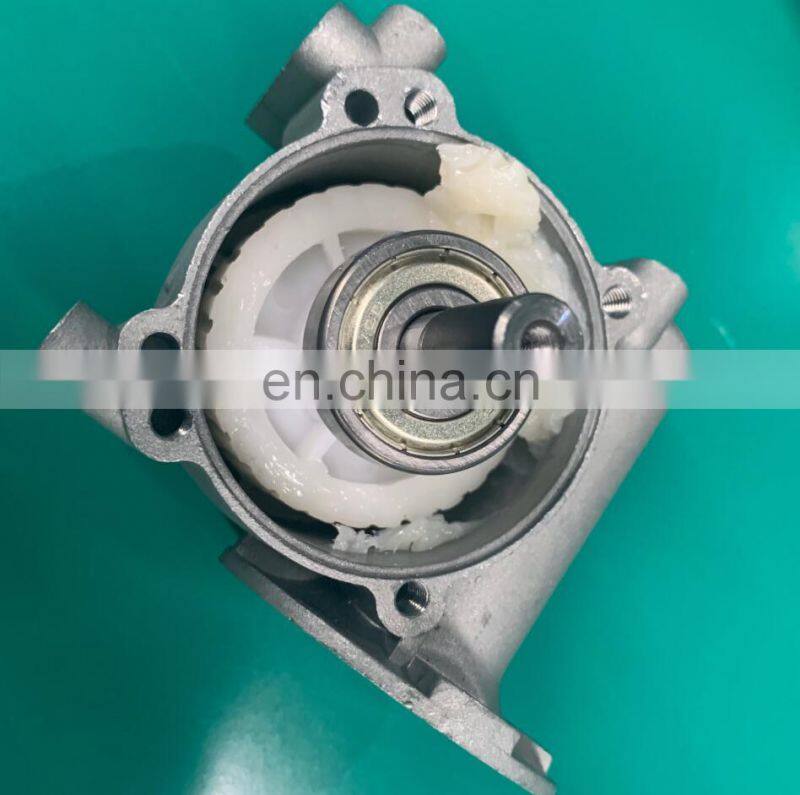

Plastic gear

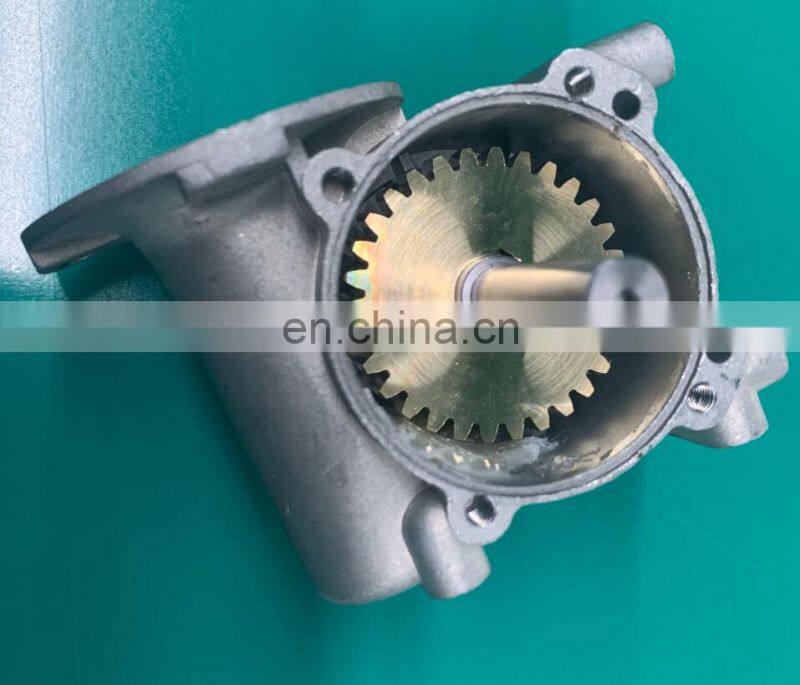

Metal gear

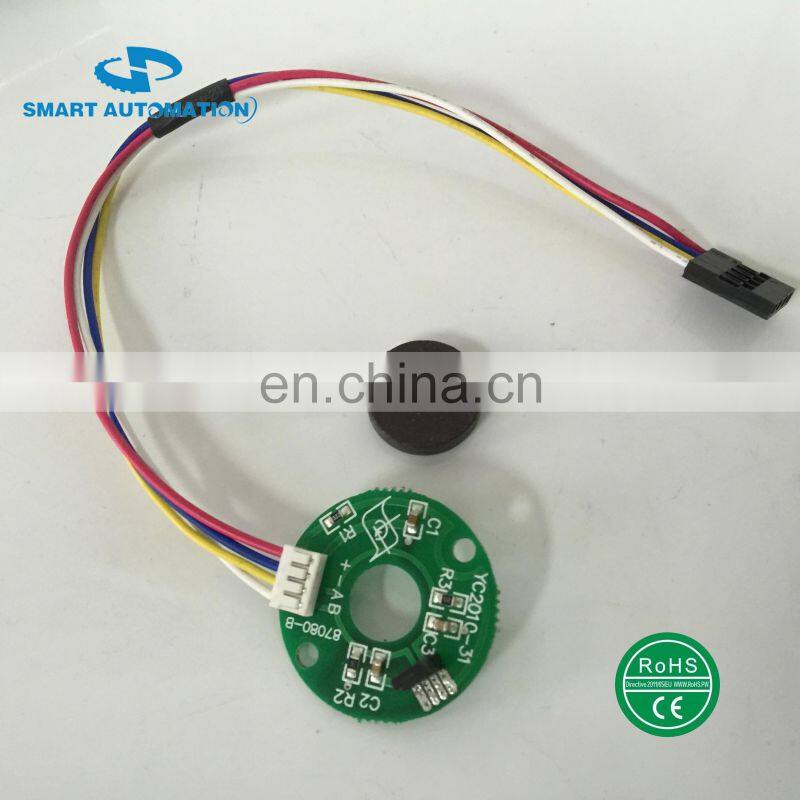

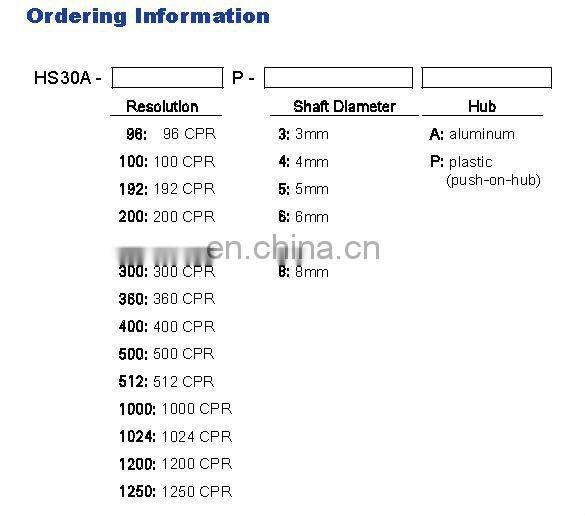

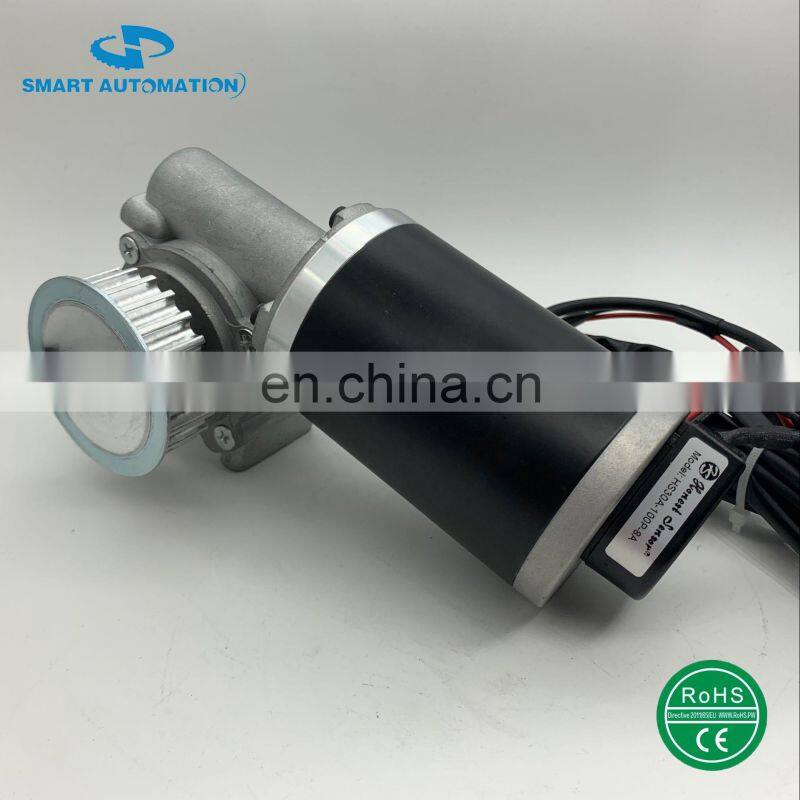

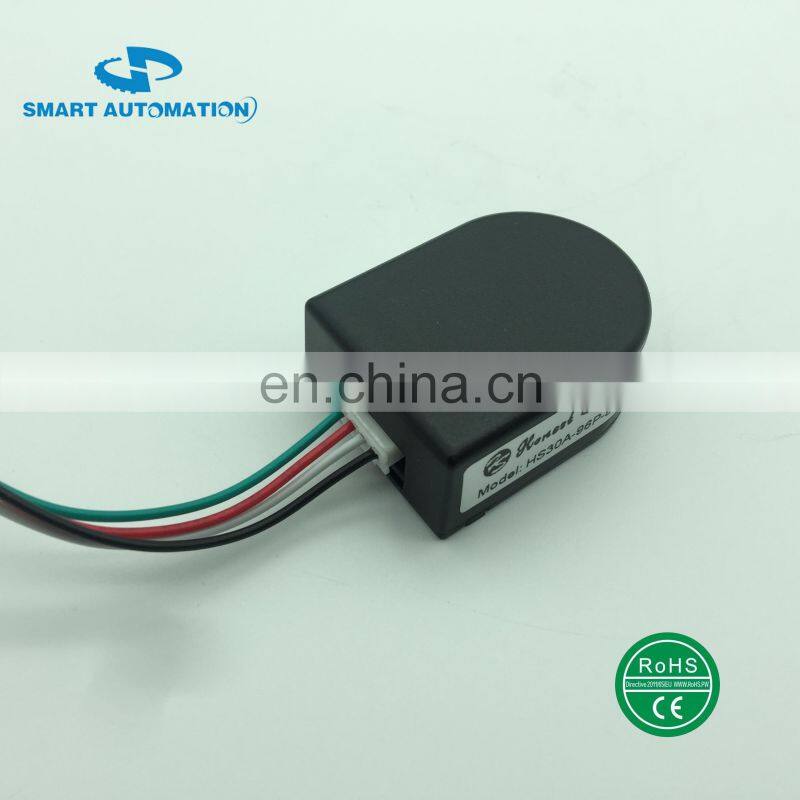

Option for optical/magnet encoder
