dc Gear Motor 12v 24v 40rpm 50rpm 60rpm 70rpm With Different Reduction

Changzhou Smart Automation Motor Manufacturing Co., Ltd.
dc Gear Motor 12v 24v 40rpm 50rpm 60rpm 70rpm With Different Reduction thumbnail-1
dc Gear Motor 12v 24v 40rpm 50rpm 60rpm 70rpm With Different Reduction thumbnail-2
dc Gear Motor 12v 24v 40rpm 50rpm 60rpm 70rpm With Different Reduction thumbnail-3
dc Gear Motor 12v 24v 40rpm 50rpm 60rpm 70rpm With Different Reduction photo-1
dc Gear Motor 12v 24v 40rpm 50rpm 60rpm 70rpm With Different Reduction photo-2
dc Gear Motor 12v 24v 40rpm 50rpm 60rpm 70rpm With Different Reduction photo-3
US$ 25 - 60 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
56jx300k.63ZYT
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Smart Automation
Place of Origin Jiangsu, China
Model Number 56jx300k.63ZYT
Type Gear Motor
Certification CE, ROHS
Torque 1N.m~30N.m
Usage Boat, Car, Fan, Home Appliance
Construction Permanent Magnet
Efficiency IE 1
Protect Feature Drip-proof
Voltage(V) 12~48v
Output Power 30w~200w
Continuous Current(A) customed
Speed(RPM) 5rpm~1000rpm
Commutation Brush

56JX300K.63ZYT SERIES  PM DC PLANETARY GEAR MOTOR  (with max. rated torque 30N.m)

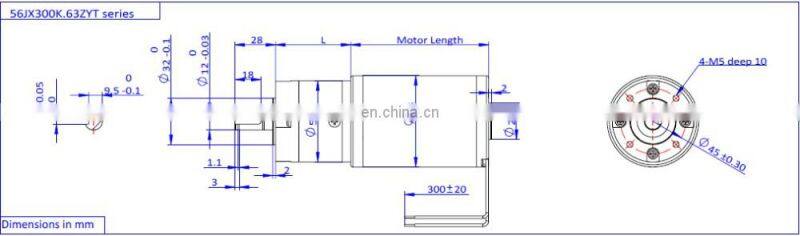

56JX300K.63ZYT SERIES Gear Motor Drawing:



 dc gear motor 12v 24v 40rpm 50rpm 60rpm 70rpm with different reduction









63ZYT Series Motor Specification:

Ball bearing Hard ferrite magnet, 2- poles Protection class IP 50 Insulation class: B   CE and ROHS certified

Model

Rated voltage V

No load speed rpm

No load current  A

Rated speed  rpm

Rated torque  N.m

Output power W

Rated current  A

Stall torque          N.m

Stall current   A

Motor Length  mm

63ZYT01A-12V

12

3600

0.6

3100

0.137

45

5.2

0.82

27

95

63ZYT01B-12V

12

4500

0.8

4000

0.2

85

10

1.55

57

95

63ZYT01A-24V

24

3600

0.35

3300

0.14

50

2.7

1.08

18

95

63ZYT01B-24V

24

4500

0.5

4000

0.2

85

5.0

1.5

30

95

63ZYT02A-12V

12

3500

0.8

3000

0.31

98

11.5

2.0

59

110

63ZYT02B-12V

12

4500

1.0

4000

0.35

147

18.0

2.2

104.2

110

63ZYT02A-24V

24

3500

0.55

3000

0.35

98

5.8

2.0

29

110

63ZYT02B-24V

24

4500

0.6

4000

0.35

147

8.5

2.2

48.6

110

63ZYT03A-12V

12

3500

1.0

3000

0.4

125

14.5

2.7

83.5

125

63ZYT03B-12V

12

3700

1.0

3500

0.32

117

5.8

3.4

5.8

125

63ZYT03A-24V

24

3500

0.8

3000

0.4

125

14.5

2.7

83.5

125

63ZYT03B-24V

24

3700

0.8

3500

0.32

117

5.8

3.4

5.8

125

We provide customized voltage, winding, shaft, mounting, and lead configurations

Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder







56JX300K  Planetary Gearbox Specification:

Reduction ratio

1/3.6

1/4.25

1/13

1/15

1/18

1/47

1/55

1/65

1/77

1/168

1/198

1/234

1/276

1/326

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Gearbox Length (L) (mm)

40.5

40.5

51.8

51.8

51.8

63.1

63.1

63.1

63.1

82.6

82.6

82.6

82.6

82.6

Transmission efficiency

90%

90%

81%

81%

81%

73%

73%

73%

73%

66%

66%

66%

66%

66%

Max. rated transmission torque (N.m)

2

2

8

8

8

16

16

16

16

30

30

30

30

30

Max. permissible load in short time (N.m)

6

6

25

25

25

50

50

50

50

90

90

90

90

90





dc gear motor 12v 24v 40rpm 50rpm 60rpm 70rpm with different reductiondc gear motor 12v 24v 40rpm 50rpm 60rpm 70rpm with different reduction

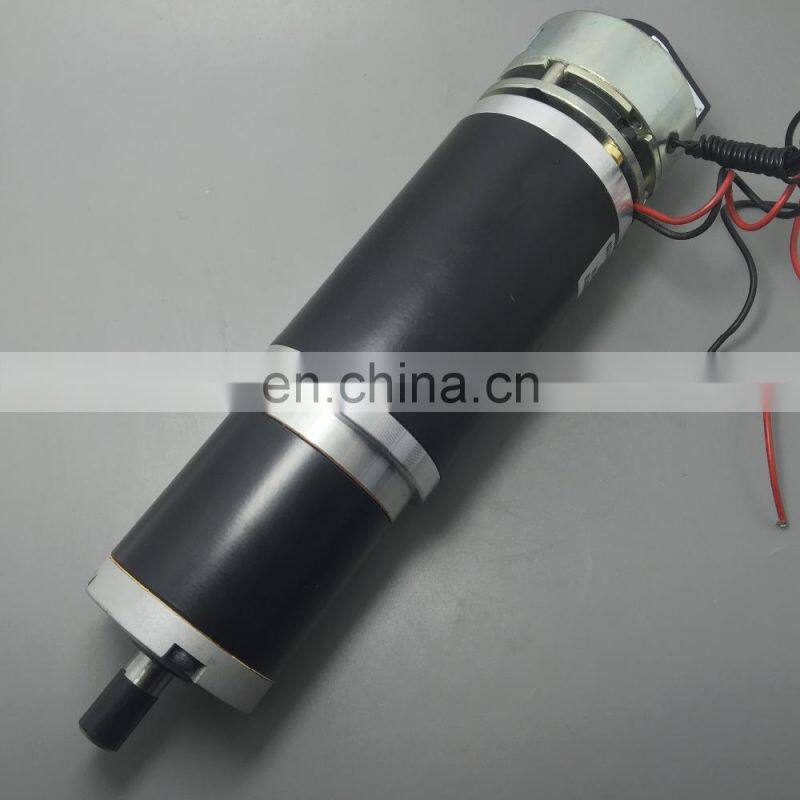

Motor picture:



 dc gear motor 12v 24v 40rpm 50rpm 60rpm 70rpm with different reduction





 dc gear motor 12v 24v 40rpm 50rpm 60rpm 70rpm with different reductiondc gear motor 12v 24v 40rpm 50rpm 60rpm 70rpm with different reduction
