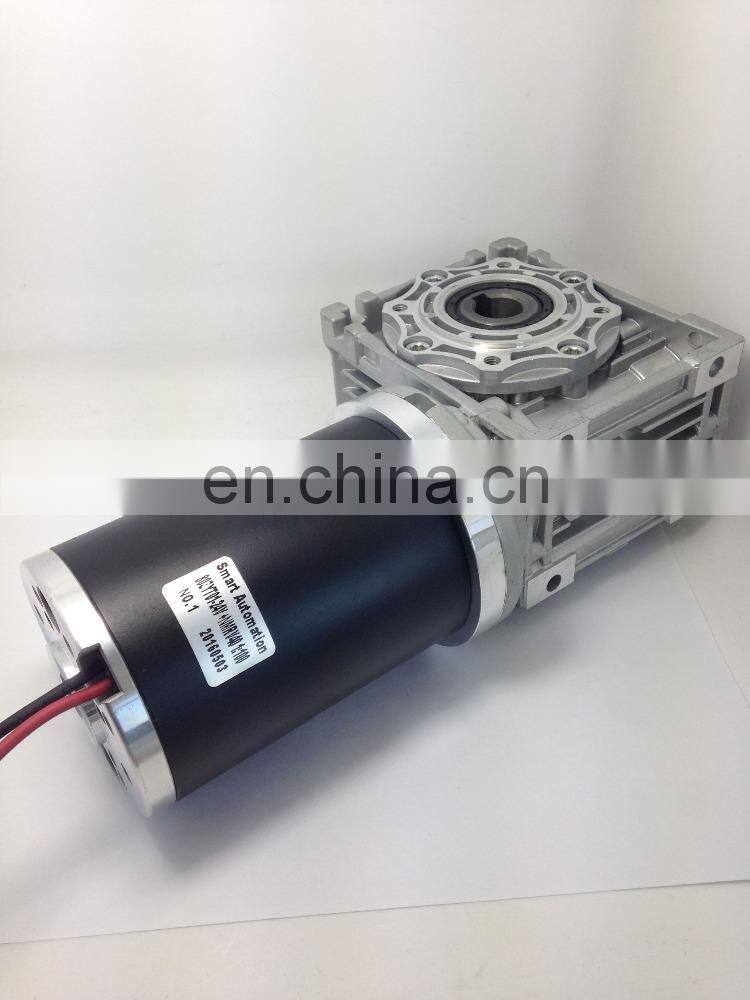

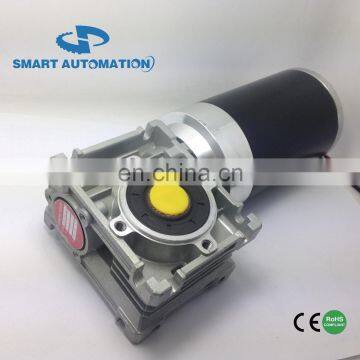

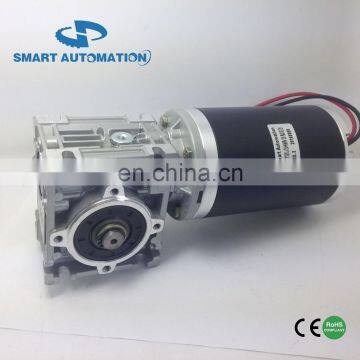

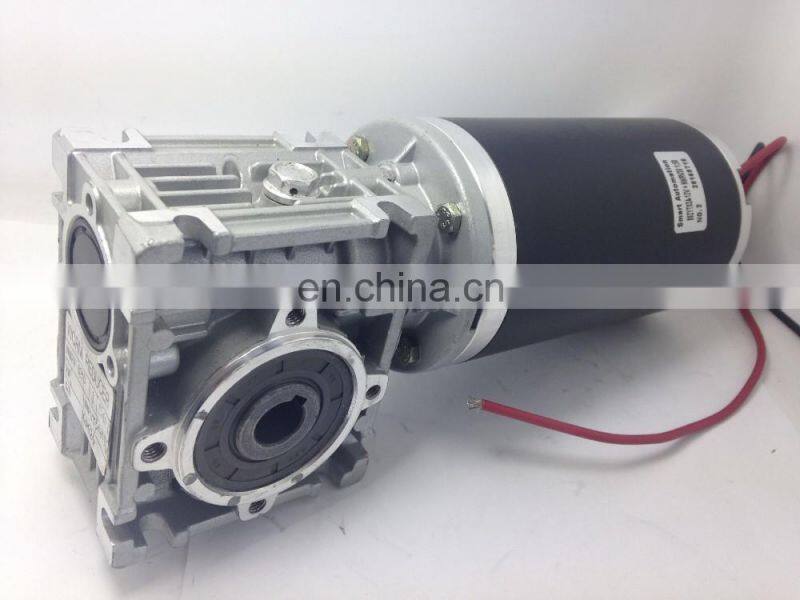

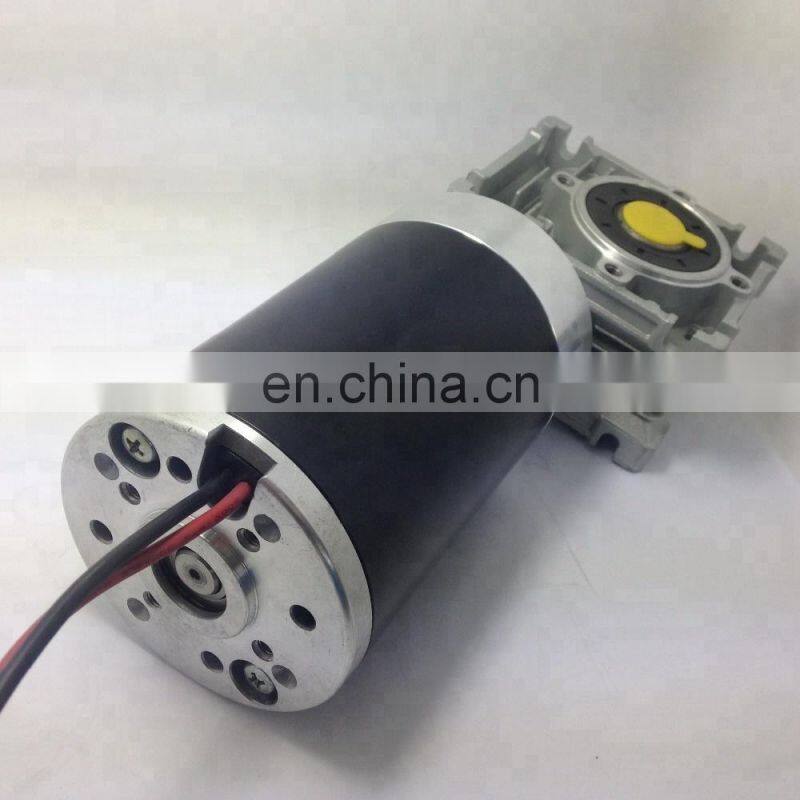

12v 24v 40nm dc Motor With Worm Gear Reductor OPTION 50Nm 60Nm
- Shanghai
- T/T Credit Card
You May Like
-
Planet dc Gearmotor 12V 24V High Torque Power 50w 100w 150w
-
High Torque dc Motor Geared 24v 4Nm 5Nm
-
200 Rpm 400 Rpm High Torque dc Motor 12v 24v With Planetary Gearhead
-
Dia.80mm High Torque 24v 250W dc Motor Rated 3000rpm
-
O.D80mm Hight Torque 12v dc Motor 1 nm 3000rpm 300w
-
O.D80mm Hight Torque 24v dc Motor 1 nm 3000rpm 300w
Product Details
| Brand Name | Smart automation | Place of Origin | Jiangsu, China | |
| Model Number | NMRV30.80ZYT | Type | Gear Motor | |
| Certification | CE, ROHS, VDE | Torque | customed | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12v 24v | Output Power | upto 300w | |
| Continuous Current(A) | customed | Speed(RPM) | customed | |
| Commutation | Brush |
Product Description
80MM SERIES
NMRV30+80ZYT SERIES PM DC WORM GEAR MOTOR
NMRV30.80ZYT SERIES Gear Motor Drawing:
80ZYT Series Motor Specification:
Ball bearing Hard ferrite magnet, 2- poles Protection class IP 50 Insulation class: B CE and ROHS certified
Model | Rated voltage VDC | No load speed rpm | Rated speed rpm | Rated torque N.m | Output power W | Stall N.m | Motor Length mm |
80ZYT01L | 12/24/36/48 | 1800 | 1400 | 0.35 | 50 | 1.5 | 120 |
80ZYT02L | 12/24/36/48 | 1800 | 1400 | 0.50 | 75 | 2.3 | 140 |
80ZYT03L | 12/24/36/48 | 1800 | 1400 | 0.70 | 100 | 3.1 | 160 |
We provide customized voltage, winding, shaft, mounting, and lead configurations
Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder
NMRV30.80ZYT01L Worm Gear Motor Specification:
Reduction ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
Transmission efficiency | 90% | 85% | 85% | 80% | 75% | 75% | 70% | 65% | 60% | 55% | 50% |
No load speed(rpm) | 360 | 240 | 180 | 120 | 90 | 72 | 60 | 45 | 36 | 30 | 22.5 |
Rated speed(rpm) | 280.0 | 186.7 | 140.0 | 93.3 | 70.0 | 56.0 | 46.7 | 35.0 | 28.0 | 23.3 | 17.5 |
Rated torque (N.m) | 1.6 | 2.2 | 3.0 | 4.2 | 5.3 | 6.6 | 7.4 | 9.1 | 10.5 | 11.6 | 14.0 |
NMRV30.80ZYT02L Worm Gear Motor Specification:
Reduction ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
Transmission efficiency | 90% | 85% | 85% | 80% | 75% | 75% | 70% | 65% | 60% | 55% | 50% |
No load speed(rpm) | 360 | 240 | 180 | 120 | 90 | 72 | 60 | 45 | 36 | 30 | 22.5 |
Rated speed(rpm) | 280.0 | 186.7 | 140.0 | 93.3 | 70.0 | 56.0 | 46.7 | 35.0 | 28.0 | 23.3 | 17.5 |
Rated torque (N.m) | 2.3 | 3.2 | 4.3 | 6.0 | 7.5 | 9.4 | 10.5 | 13.0 | 15.0 | 16.5 | 20.0 |
NMRV30.80ZYT03L Worm Gear Motor Specification:
Reduction ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
Transmission efficiency | 90% | 85% | 85% | 80% | 75% | 75% | 70% | 65% | 60% | 55% | 50% |
No load speed(rpm) | 360 | 240 | 180 | 120 | 90 | 72 | 60 | 45 | 36 | 30 | 22.5 |
Rated speed(rpm) | 280.0 | 186.7 | 140.0 | 93.3 | 70.0 | 56.0 | 46.7 | 35.0 | 28.0 | 23.3 | 17.5 |
Rated torque (N.m) | 3.2 | 4.5 | 6.0 | 8.4 | 10.5 | 13.1 | 14.7 | 18.2 | 21.0 | 23.1 | 28.0 |
NMRV40+80ZYT SERIES PM DC WORM GEAR MOTOR
90MM SERIES
BRUSHLESS VERSION
