Home > Electrical & Electronics > Electric Motor > DC Motor > Planet dc Gearmotor 12V 24V High Torque Power 50w 100w 150w
Planet dc Gearmotor 12V 24V High Torque Power 50w 100w 150w
US$ 22 - 60
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
56jx300k.63ZYT
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Torque dc Motor Geared 24v 4Nm 5NmUS$ 25 - 60MOQ: 5 Pieces -
200 Rpm 400 Rpm High Torque dc Motor 12v 24v With Planetary GearheadUS$ 25 - 60MOQ: 5 Pieces
-
Dia.80mm High Torque 24v 250W dc Motor Rated 3000rpmUS$ 15 - 30MOQ: 5 Pieces
-
O.D80mm Hight Torque 12v dc Motor 1 nm 3000rpm 300wUS$ 12 - 30MOQ: 5 Pieces
-
O.D80mm Hight Torque 24v dc Motor 1 nm 3000rpm 300wUS$ 12 - 30MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
56jx300k.63ZYT
Type
Gear Motor
Certification
CE, ROHS
Torque
1N.m~30N.m
Usage
Boat, Car, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
12~48v
Output Power
50w~200w
Continuous Current(A)
customed
Speed(RPM)
5rpm~1000rpm
Commutation
Brush
56JXE300K.63ZYT SERIES PM DC PLANETARY GEAR MOTOR (with max. rated torque 30N.m)

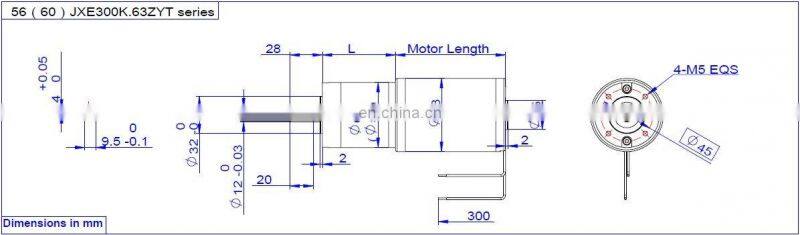

Gear motor drawing:
Motor Main Characteristics
Planetary Gearbox Specifications
Gearbox Model: 56(60)JXE300K

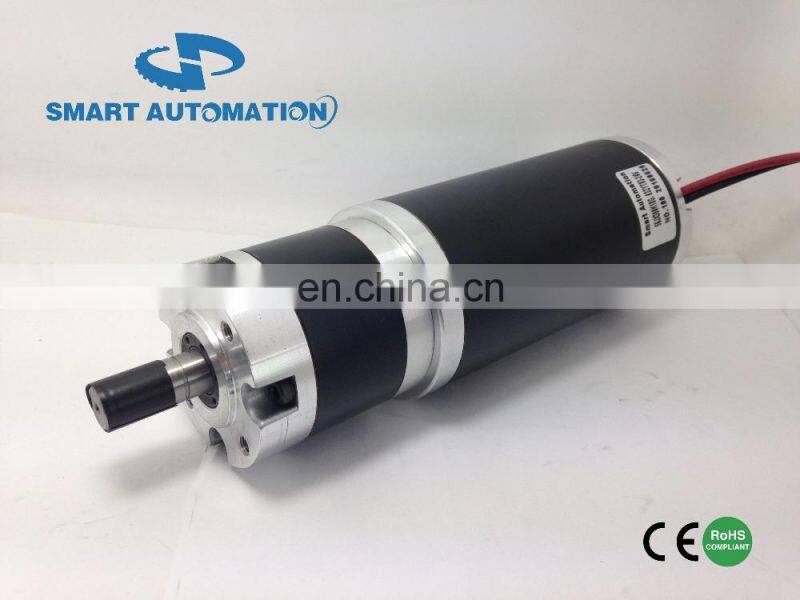

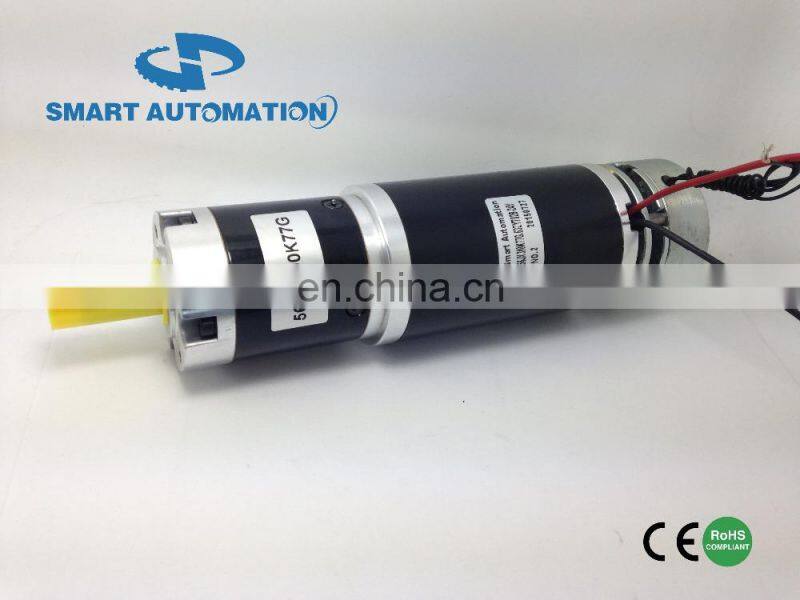

Motor picture:

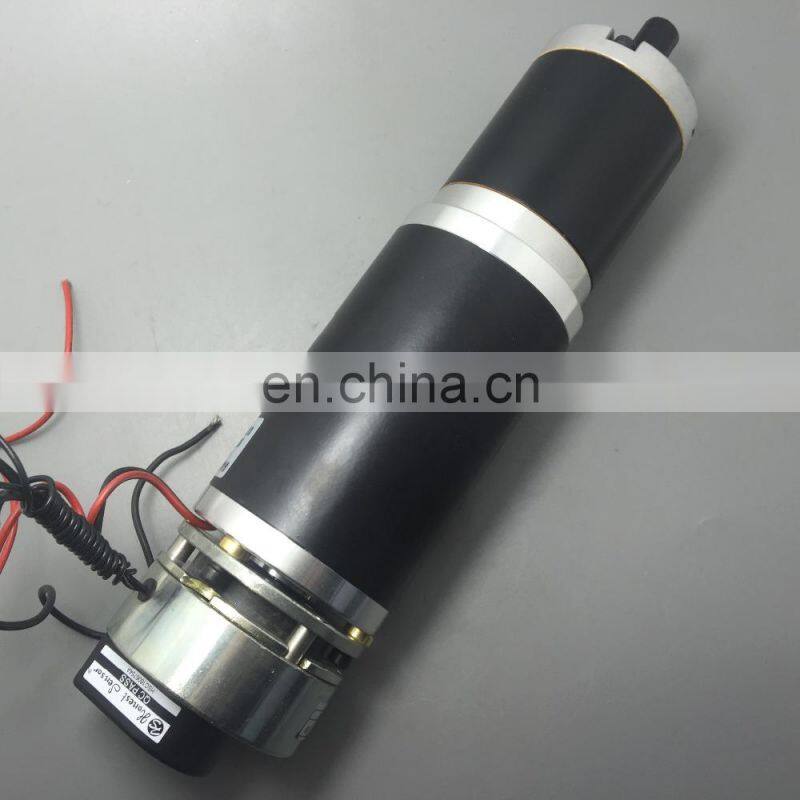

Option for brake
option for encoder
