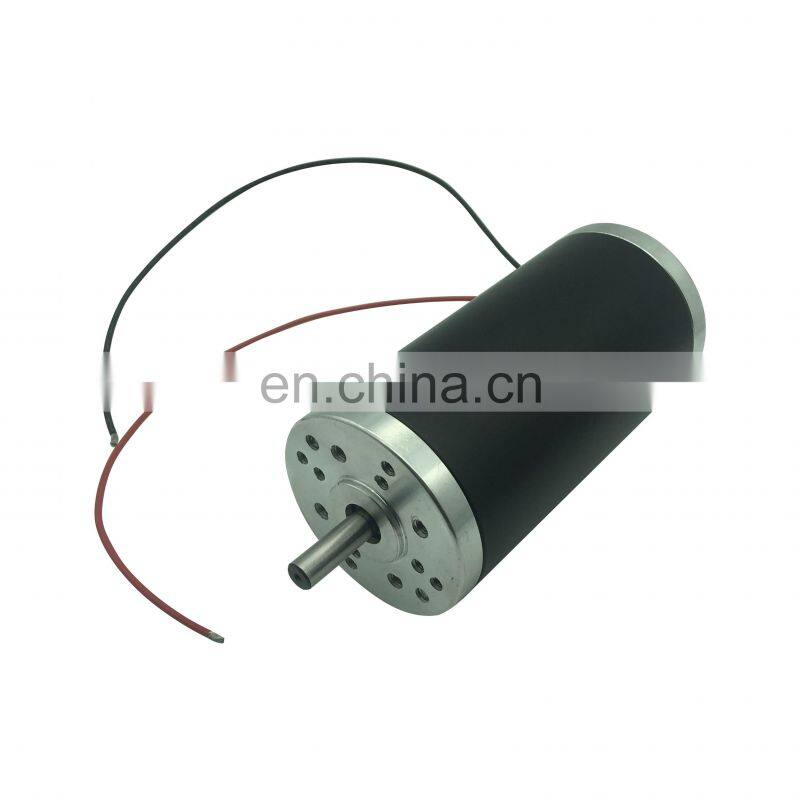

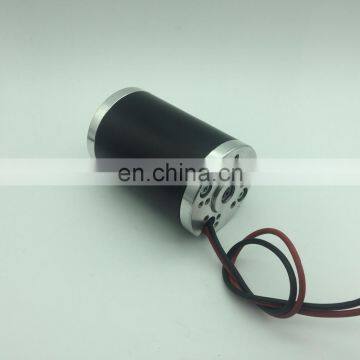

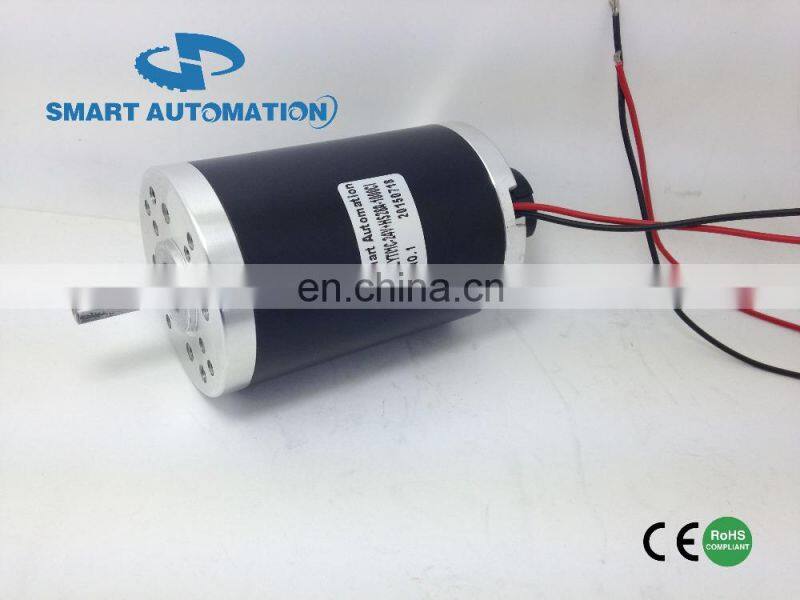

63mm Brushed Dc Motor With EMI RFI Suppression Circuit and Thermal Protection
US$ 10 - 26
/ Piece
5 Pieces(Min. Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
63ZYT02X1 Rated 24v 0.4Nm 6300rpm Electric dc Motor Used for Electrical Tools
-
80ZYT02A 24 Volt PMDC Motor With Electromagnetic Power off Brake, Rated Power 270w 300w
-
52ZYT03+56JX300k Diameter 52mm 12v High Torque Planetary Gear dc Motors 15rpm 24Nm
-
76ZYT 24v High Speed High Torque dc Motor 10000rpm NO Load, 950w
-
30ZYT03A 30mm High Toruqe Micro Dc Motor, 20mNm , 3500rpm 7.5W
-
40ZYN Rare Earth Magnet High Torque Electric dc Brushed Motor
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 63ZYT | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | 0.1~0.7Nm | |
| Usage | Boat, Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12v~60v | Output Power | 50w~500w | |
| Continuous Current(A) | customed | Speed(RPM) | 3000rpm~10000rpm | |
| Commutation | Brush |
Product Description
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:

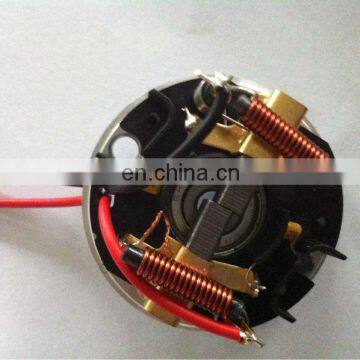

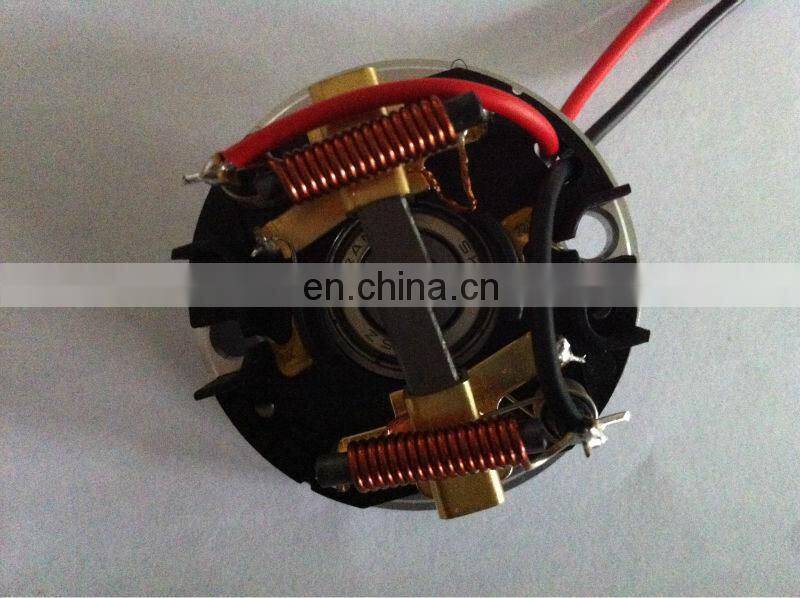

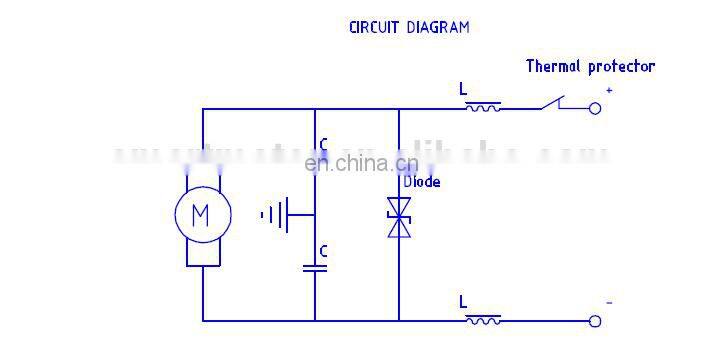

EMI/RFI suppression circuit; Thermal protection

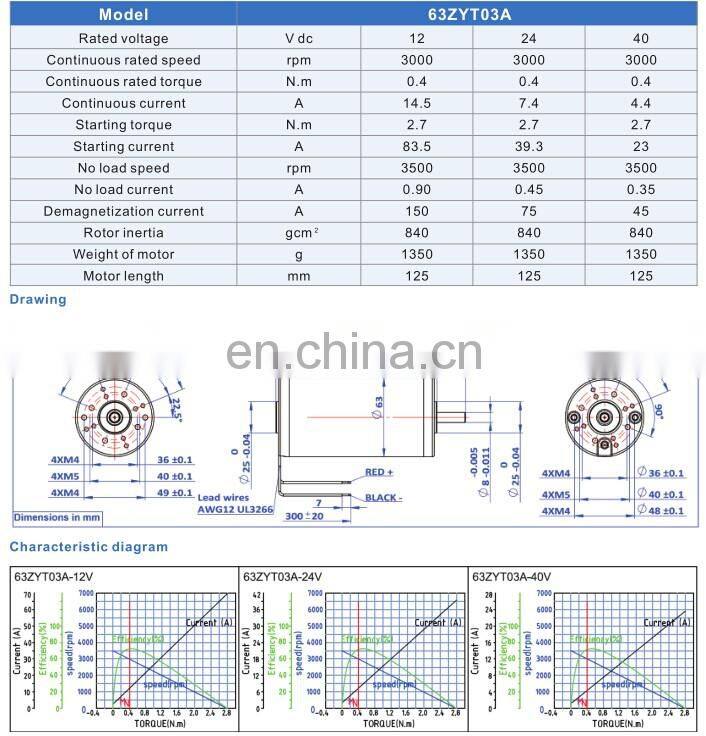

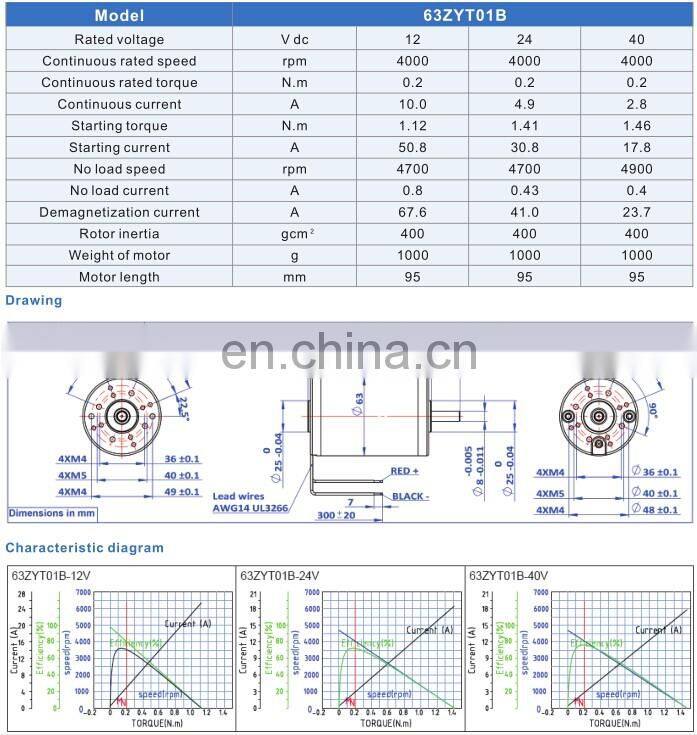

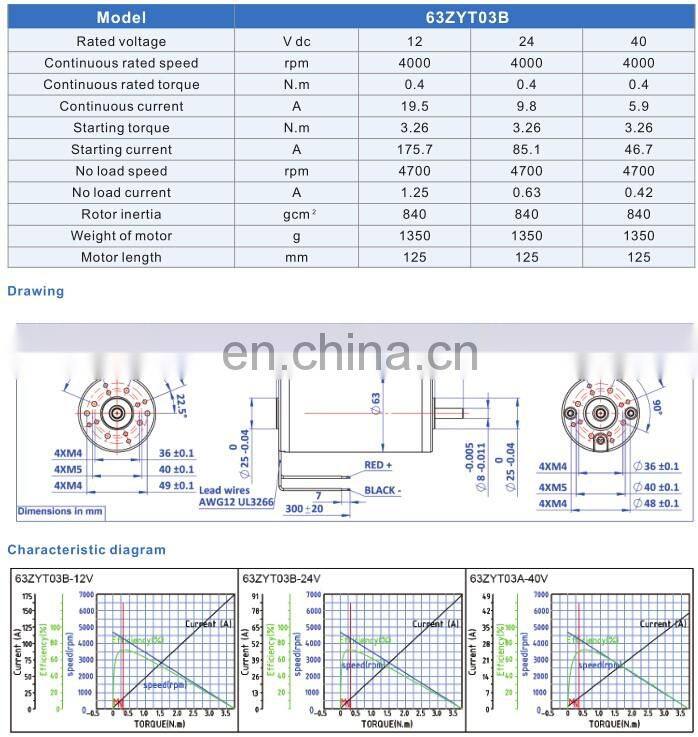

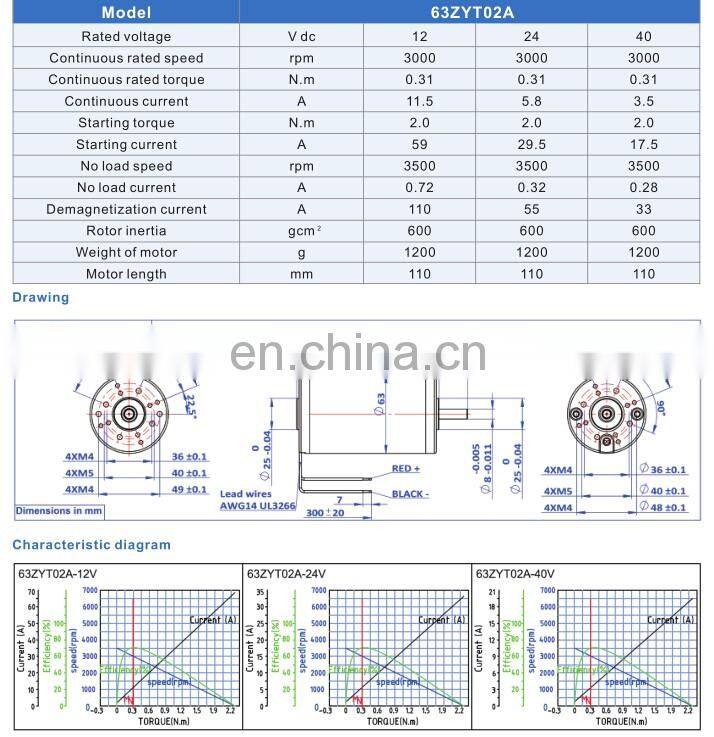

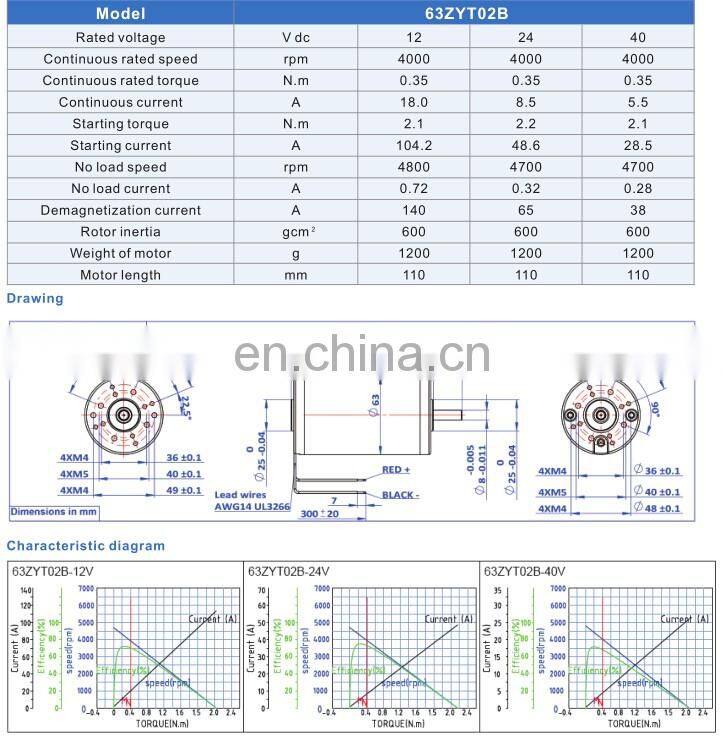

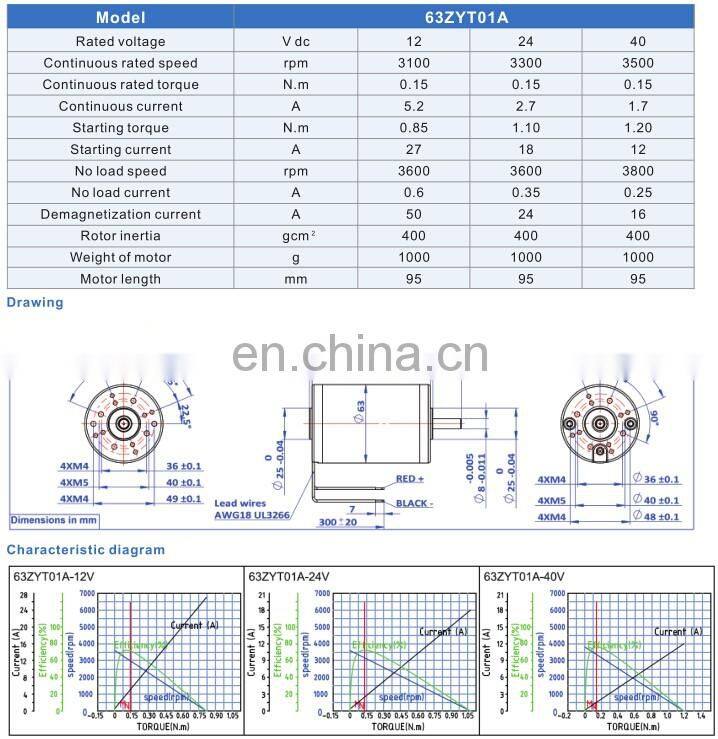

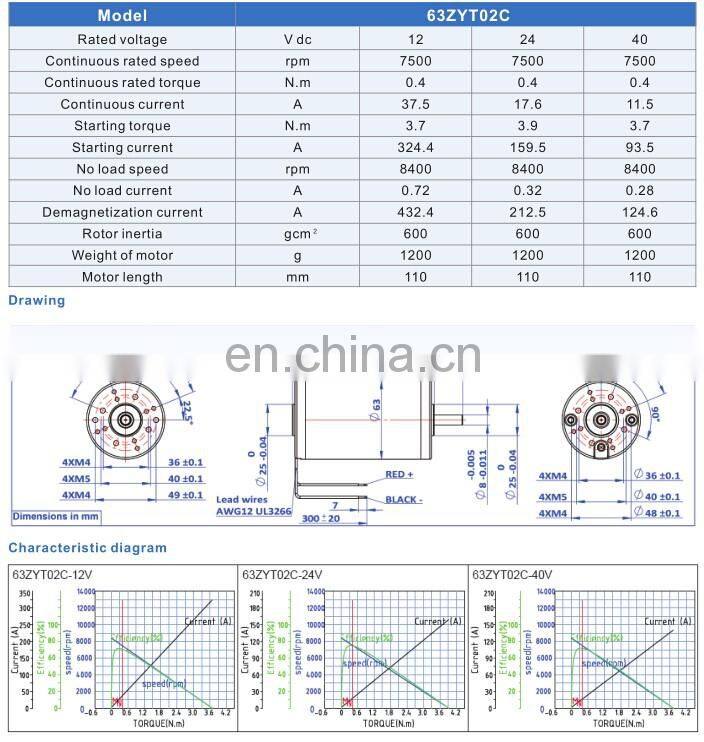

BELOW ARE ONLY TYPICAL MODELS
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
The motor can be customed :
12vdc-60vdc, speed 1500rpm--9500rpm, torque 0.1Nm--0.75 Nm, power upto 500w
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
