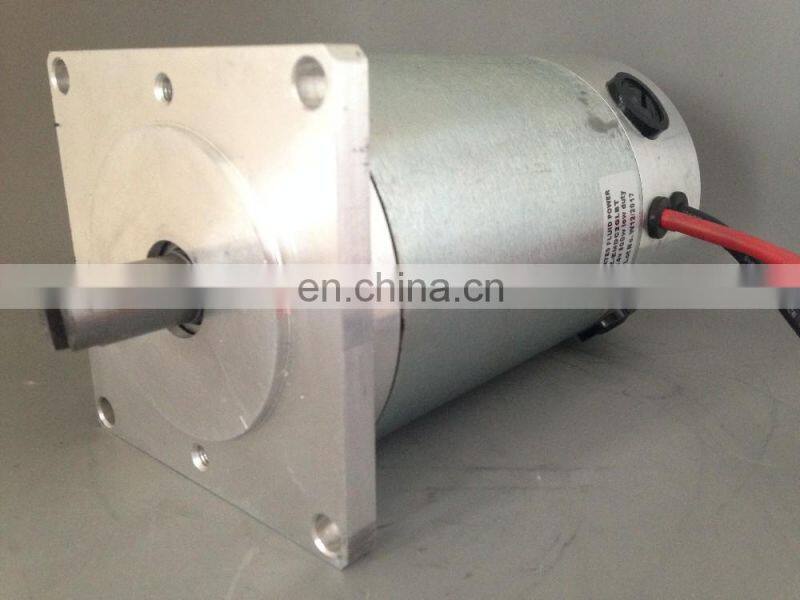

Help Center90zyt High Power Brushed Dc Motor for Water Pump, With Square Flange
Related Products
-
90mm Electric Dc Motor, 24v 1500rpm 200w, 63B15 IEC FlangeUS$ 30 - 60MOQ: 5 Pieces -
76mm High Speed High Power 24v Brushed Dc Motor for Adjusting BedsUS$ 12 - 30MOQ: 5 Pieces
-
63mm 100 Watt 150 Watt Electric dc Motor OPTION 12 Volt 24 VoltUS$ 8 - 30MOQ: 5 Pieces
-
54ZYT-14205 DC Brushed Micro Servo Motor 12 Volt 24 Volt 38 VoltUS$ 10 - 30MOQ: 5 Pieces
-
Permanent Magnet Brushed 72v dc MotorUS$ 5 - 20MOQ: 5 Pieces
Motor technical parameter:
Shaft HRC 36~40 ; NSK ball bearing
Protection class IP 54 Hard ferrite magnet, 4- poles
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
LONG LIFE, HEAVY DUTY

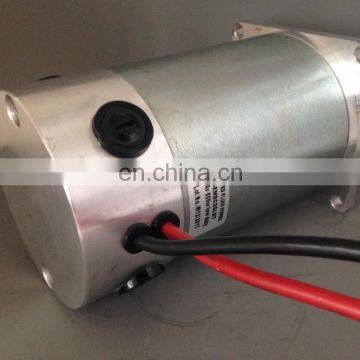

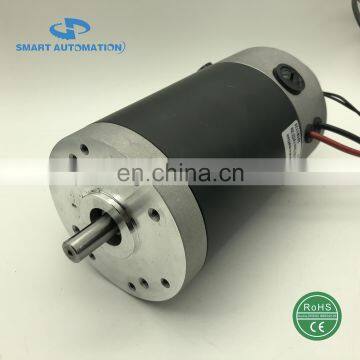

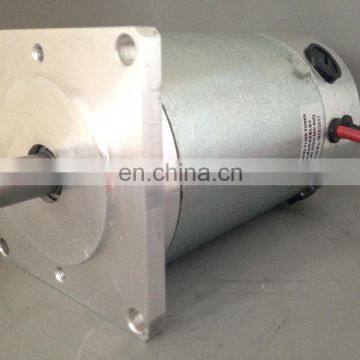

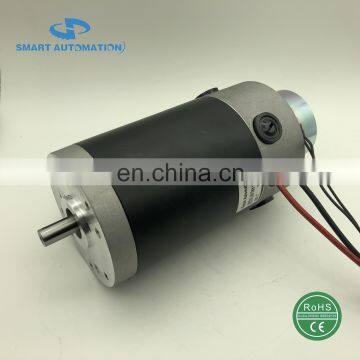

MOTOR PICTURES:
MOTOR MODELS:
90ZYT01 SERIES
Rated Voltage/Speed | Rated Torque(N.m) | motor length(mm) | Output(W) |
24V 4000RPM | 1.2 | 155 | 461 |
24V 3000RPM | 1.2 | 155 | 346 |
24V 2000RPM | 1.2 | 155 | 230 |
24V 1500RPM | 1.2 | 155 | 173 |
12V 4000RPM | 0.8 | 155 | 461 |
12V 3000RPM | 1.2 | 155 | 346 |
12V 2000RPM | 1.2 | 155 | 230 |
12V 1500RPM | 1.1 | 155 | 173 |
90ZYT02 SERIES
Rated Voltage/Speed | Rated Torque(N.m) | motor length(mm) | Output(W) |
24V 4000RPM | 1.8 | 199 | 750 |
24V 3000RPM | 1.8 | 199 | 500 |
24V 2000RPM | 1.8 | 199 | 300 |
24V 1500RPM | 1.5 | 199 | 200 |
12V 4000RPM | 1.5 | 199 | 550 |
12V 3000RPM | 1.8 | 199 | 500 |
12V 2000RPM | 1.8 | 199 | 300 |
12V 1500RPM | 1.5 | 199 | 200 |
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
