Home > Products > brushed dc motors > 76zyt Electric DC Water Pump Motor 12v 24v, 50w -300w

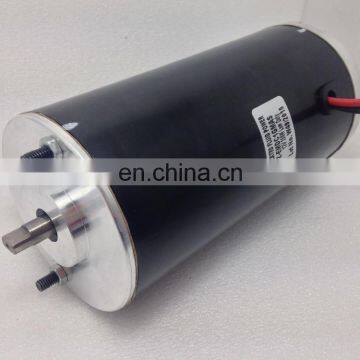

76zyt Electric DC Water Pump Motor 12v 24v, 50w -300w
- SHANGHAI
- T/T Credit Card
You May Like
-
63ZYT01A Brushed Electric dc Motor 12v 50w Option for 24v 40V
-
38mm Sintered NdFeB Magnet Brushed DC Micro Motor 12v 24v, Small Size Big Torque
-
30zyt 30mm Permanent Magnet DC Motor, Ball Bearing, Long Life
-
38ZYN03A Small Size HighTorque Dc Brush Motor, Rated 3000rpm,100mNm
-
Dia.52mm Engraving Machine Use High Speed dc Motor, no Load 12000rpm
-
Dia.76mm 3'' High Speed Dc Brushed Motor Rated 10000rpm 250w
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 76ZYT | |||
| Certification | CE, ROHS | Torque | customed | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12v, 24v | Output Power | 50w -300w | |
| Continuous Current(A) | customed | Speed(RPM) | customed | |
| Commutation | Brush |
Product Description

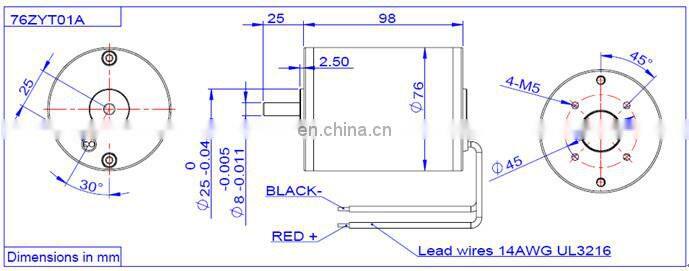

Permanent Magnet Brush DC Motor 76ZYT01A
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Model | 76ZYT01A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 2600 | 2600 | 2600 |
Continuous rated torque | N.m | 0.3 | 0.3 | 0.3 |
Continuous current | A | 9.5 | 4.70 | 2.80 |
Starting torque | N.m | 1.62 | 1.62 | 1.62 |
Starting current | A | 49 | 24 | 13.7 |
No load speed | rpm | 3200 | 3200 | 3200 |
No load current | A | 0.6 | 0.4 | 0.3 |
Weight of motor | g | 1500 | 1500 | 1500 |
Motor length | mm | 98 | 98 | 98 |
Permanent Magnet Brush DC Motor 76ZYT02A
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
