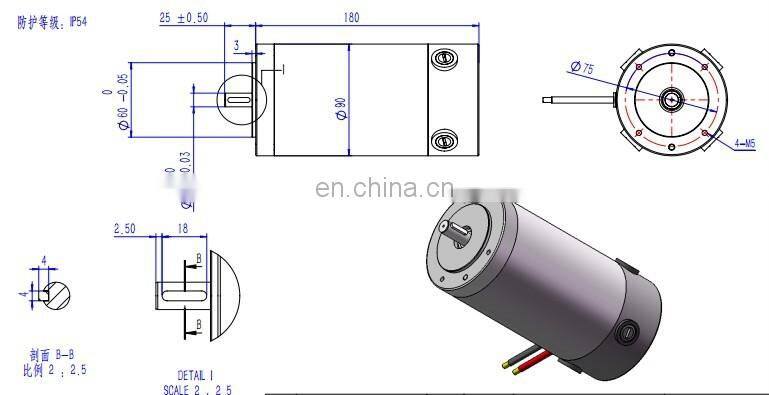

90mm Electric Dc Motor, 24v 1500rpm 200w, 63B15 IEC Flange
US$ 30 - 60
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
90zyt
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
76mm High Speed High Power 24v Brushed Dc Motor for Adjusting BedsUS$ 12 - 30MOQ: 5 Pieces -
63mm 100 Watt 150 Watt Electric dc Motor OPTION 12 Volt 24 VoltUS$ 8 - 30MOQ: 5 Pieces
-
54ZYT-14205 DC Brushed Micro Servo Motor 12 Volt 24 Volt 38 VoltUS$ 10 - 30MOQ: 5 Pieces
-
Permanent Magnet Brushed 72v dc MotorUS$ 5 - 20MOQ: 5 Pieces
-
OD63mm Brushed Dc Motor Equivalent to Gr63 Ametek MotorUS$ 6 - 40MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
90zyt
Type
Servo Motor
Certification
CE, ROHS
Torque
1.3Nm
Usage
Car, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
24v
Output Power
200w
Continuous Current(A)
customed
Speed(RPM)
1500rpm
Commutation
Brush
Motor technical parameter:
Shaft HRC 36~40 ; NSK ball bearing
Protection class IP 54 Hard ferrite magnet, 4- poles
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
LONG LIFE, HEAVY DUTY
Rated voltage 24v
No load 2000rpm
Rated speed 1500rpm
Rated torque 1.3Nm
Rated current 12A Max.
