63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm

Changzhou Smart Automation Motor Manufacturing Co., Ltd.
63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm thumbnail-1
63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm thumbnail-2
63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm thumbnail-3
63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm thumbnail-4
63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm thumbnail-5
63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm thumbnail-6
63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm photo-1
63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm photo-2
63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm photo-3
63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm photo-4
63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm photo-5
63ZYT02A High Torque Brushed dc Motor 12v 100w, Rated 0.31Nm 3000rpm photo-6
US$ 8 - 30 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
China
Model Number:
63ZYT02A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Smart Automation
Place of Origin China
Model Number 63ZYT02A
Type Micro Motor
Certification CE, ROHS
Torque 0.31N.m
Usage Car, Electric Bicycle, Fan, Home Appliance
Construction Permanent Magnet
Efficiency IE 1
Protect Feature Drip-proof
Voltage(V) 12v
Output Power 100w
Continuous Current(A) customed
Speed(RPM) 3000rpm
Commutation Brush

 Motor technical parameter:

Shaft HRC 36~40 ; NMB ball bearing

Hard ferrit magnet, 2- poles

Protection class IP 50

Insulation class: F, operating temperature range:-40°C~+140°C

 CE and ROHS certified

Options:

 Customized voltage, winding, shaft, mounting, and lead configurations

 EMI/RFI suppression circuit; Thermal protection

 High temperature Class H insulation

Model

63ZYT02A

Rated voltage

V dc

12

24

40

Continuous rated speed

rpm

3000

3000

3000

Continuous rated torque

mN.m

310

310

310

Continuous current

A

11.5

5.8

3.5

Starting torque

mN.m

2000

2000

2000

Starting current

A

59

29.5

17.5

No load speed

rpm

3500

3500

3500

No load current

A

2.0

1.2

0.8

Demagnetization current

A

110

55

33

Rotor inertia

Gcm2

600

600

600

Weight of motor

g

1200

1200

1200

Motor length

mm

110

110

110

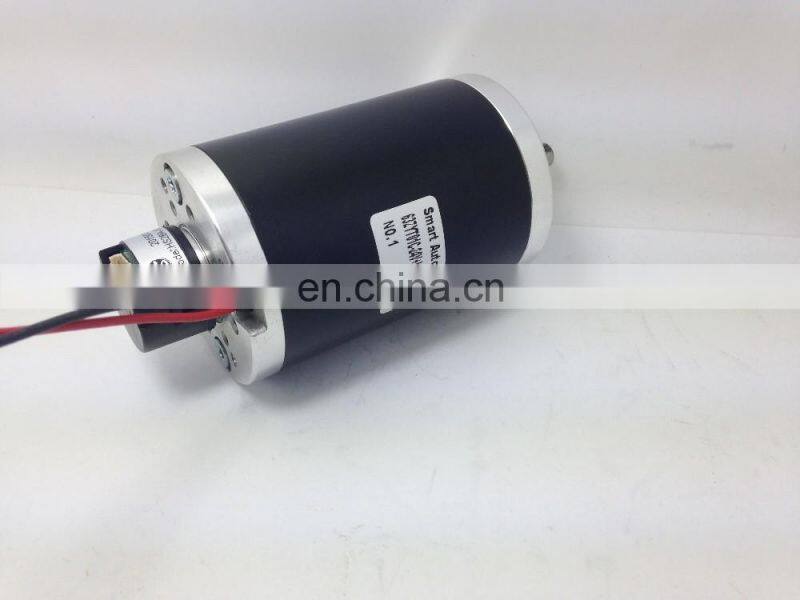

63ZYT02A high torque Brushed dc motor 12v 100w, rated 0.31Nm 3000rpm

















63ZYT02A high torque Brushed dc motor 12v 100w, rated 0.31Nm 3000rpm













63ZYT02A high torque Brushed dc motor 12v 100w, rated 0.31Nm 3000rpm

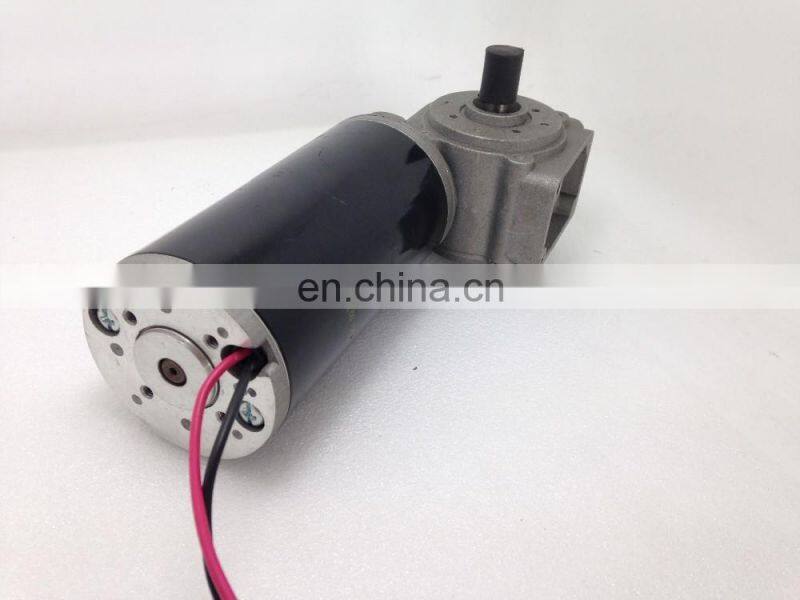

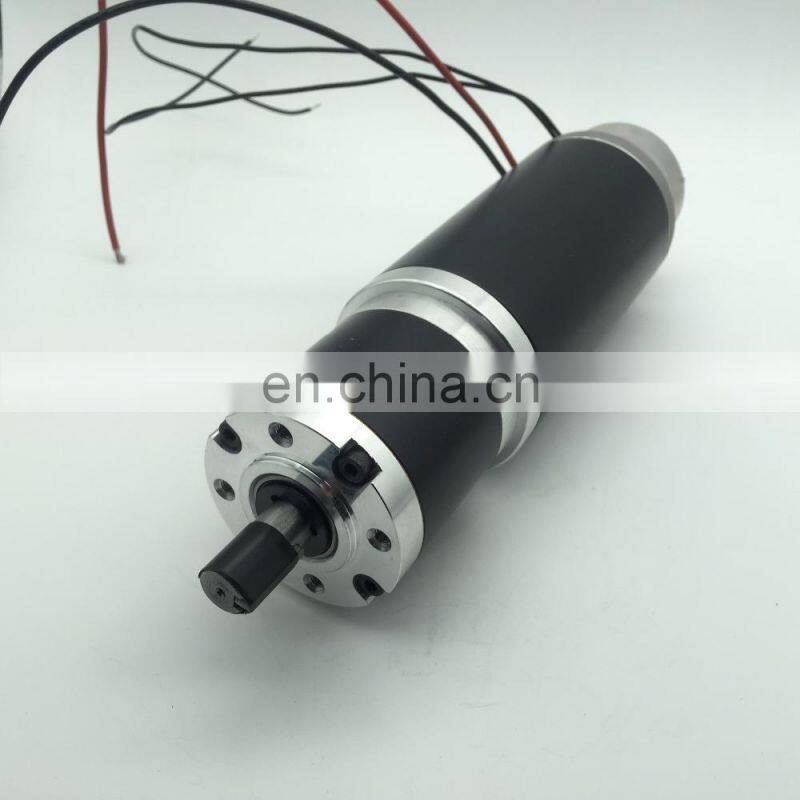

Motor adders: gearbox, encoder, brakes



63ZYT02A high torque Brushed dc motor 12v 100w, rated 0.31Nm 3000rpm63ZYT02A high torque Brushed dc motor 12v 100w, rated 0.31Nm 3000rpm



63ZYT02A high torque Brushed dc motor 12v 100w, rated 0.31Nm 3000rpm
