Home > Electrical & Electronics > Electric Motor > DC Motor > OD 56MM 12V 24V DC Gear Motor 50W Planetary Gearbox Motor BMM536M

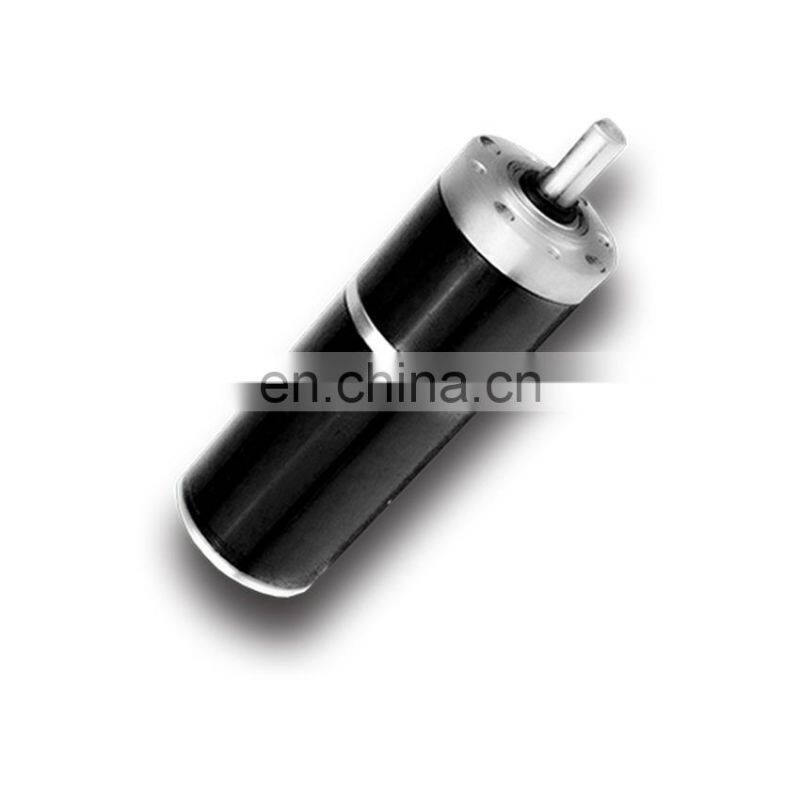

OD 56MM 12V 24V DC Gear Motor 50W Planetary Gearbox Motor BMM536M
US$ 39 - 65
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Mcmaster
Place of Origin:
Jiangsu, China
Model Number:
BMM536M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V Spur Geared Motor 5W DC Gear Motor BMM238MUS$ 4.5 - 17.5MOQ: 2 Pieces -
24V 1820W BLDC Motor 5000rpm High Speed Brushless DC Motor for Electric Skateboard Propeller Surfboard BMM750MUS$ 22.94 - 29.12MOQ: 2 Pieces
-
12V 24v OD 92mm 170 Rpm High Quality High Torque Low Speed DC Planetary Reduction Gear Motor for Solar Tracker EMM537EUS$ 186 - 325MOQ: 2 Pieces
-
24V 65W DC Reducer Motor With Gearbox Low Rpm DC Gear Motor BMM227MUS$ 53 - 75MOQ: 2 Pieces
-
24V High Torque Low RPM Brushless DC Worm Gear Motor for Cultivator E207MUS$ 110 - 160MOQ: 2 Pieces
Brand Name
Mcmaster
Place of Origin
Jiangsu, China
Model Number
BMM536M
Type
Gear Motor
Certification
CCC, ROHS
Torque
0.2N.m - 50N.m, 50NM (can be customized according to your request)
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 2
Protect Feature
Totally Enclosed
Continuous Current(A)
4.03A
Speed(RPM)
7rpm-200rpm
Commutation
Brush
| VOLTAGE (V DC) |
NO LOAD | RATED LOAD | TORQUE (Nm) |
STAGE | RATIO | Power (W) |
LENGTH (mm) |
||
| CURRENT (A) |
SPEED (r/min) |
CURRENT (A) |
SPEED (r/min) |
||||||
| 24 | 0.67 | 842 | 4.03 | 699 | 0.8 | 1 | 4.29 | 57 | 145 |
| 24 | 0.67 | 698 | 4.03 | 579 | 0.9 | 1 | 5.18 | 145 | |
| 24 | 0.67 | 535 | 4.03 | 444 | 1.2 | 1 | 6.75 | 145 | |
| 24 | 0.75 | 201 | 4.03 | 167 | 2.9 | 2 | 18 | 51 | 164 |
| 24 | 0.75 | 125 | 4.03 | 103 | 4.7 | 2 | 29 | 164 | |
| 24 | 0.75 | 103 | 4.03 | 83 | 5.8 | 2 | 35 | 164 | |
| 24 | 0.83 | 46 | 4.03 | 38 | 11.5 | 3 | 79 | 46 | 164 |
| 24 | 0.83 | 24 | 4.03 | 20 | 21.5 | 3 | 150 | 164 | |
| 24 | 0.83 | 15 | 4.03 | 13 | 34.5 | 3 | 236 | 164 | |
| 24 | 0.93 | 9 | 4.03 | 7 | 53 | 4 | 531 | 41 | 177 |
| 24 | 0.93 | 7 | 4.03 | 6 | 69 | 4 | 836 | 177 | |
| 24 | 0.93 | 4 | 4.03 | 4 | 108.8 | 4 | 836 | 177 | |
The motor can be customized by your request.
For example:
12V 4.7N.m 100RPM
24V 50N.m 8RPM
12V 10N.m 40RPM
For more information, you can visit our website
