Home > Electrical & Electronics > Electric Motor > DC Motor > 12V Spur Geared Motor 5W DC Gear Motor BMM238M

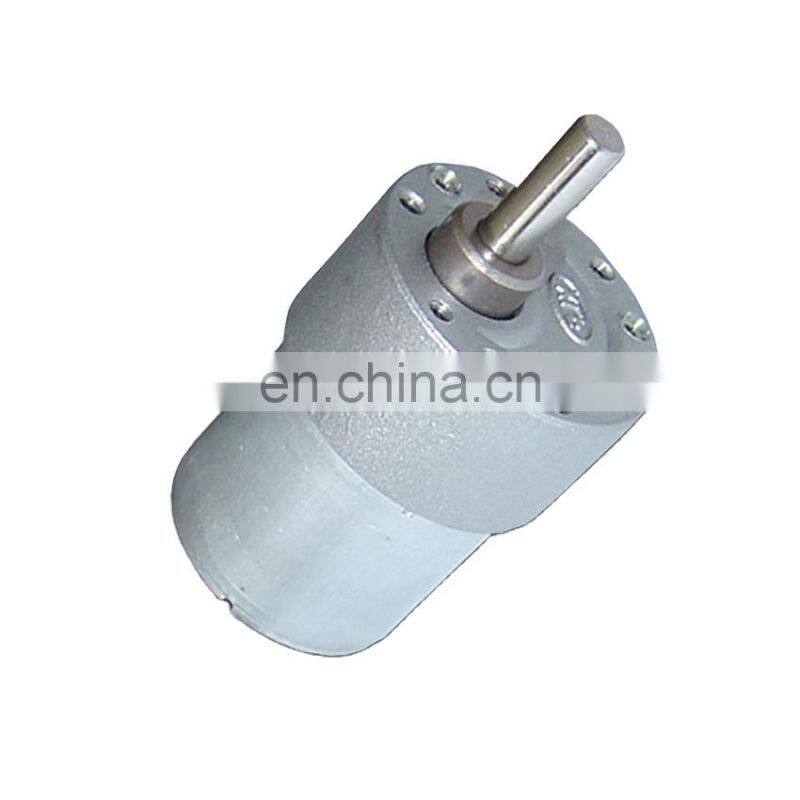

12V Spur Geared Motor 5W DC Gear Motor BMM238M
US$ 4.5 - 17.5
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Mcmaster
Place of Origin:
Jiangsu, China
Model Number:
BMM238M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24V 1820W BLDC Motor 5000rpm High Speed Brushless DC Motor for Electric Skateboard Propeller Surfboard BMM750MUS$ 22.94 - 29.12MOQ: 2 Pieces -
12V 24v OD 92mm 170 Rpm High Quality High Torque Low Speed DC Planetary Reduction Gear Motor for Solar Tracker EMM537EUS$ 186 - 325MOQ: 2 Pieces
-
24V 65W DC Reducer Motor With Gearbox Low Rpm DC Gear Motor BMM227MUS$ 53 - 75MOQ: 2 Pieces
-
24V High Torque Low RPM Brushless DC Worm Gear Motor for Cultivator E207MUS$ 110 - 160MOQ: 2 Pieces
-
OD 27mm 2W DC Motor With Gearbox 3V 12V 24V High Torque Low Rpm DC Gear Motor BMM426MUS$ 3 - 5MOQ: 2 Pieces
Brand Name
Mcmaster
Place of Origin
Jiangsu, China
Model Number
BMM238M
Type
Gear Motor
Certification
CCC, ROHS
Torque
0.025 N.m - 2 N.m
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 2
Protect Feature
Totally Enclosed
Output Power
5W
Continuous Current(A)
0.4A
Speed(RPM)
5.5 rpm- 750 rpm
Commutation
Brush
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
|
RATIO TORQUE(Nm) SPEED(r/min) |
1/6 | 1/10 | 1/17.5 | 1/30 | 1/50 | 1/90 | 1/160 | 1/270 | 1/470 | 1/810 |
VOLTAGE (VDC) |
CURRENT (A) |
Power (W) |
|
| 0.025 | 0.04 | 0.06 | 0.1 | 0.2 | 0.3 | 0.5 | 0.8 | 1.4 | 2 | NO LOAD | RATED LOAD | |||
| BMM238M | 750 | 450 | 250 | 150 | 90 | 50 | 28 | 16 | 9 | 5.5 | 12 | ≤0.09 | ≤0.4 | 4.8 |

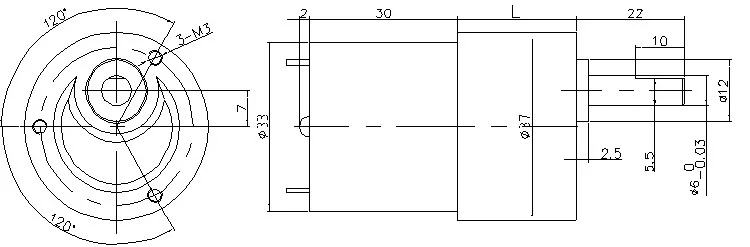

| Reduction Ratio | LENGTH(mm) |
| 1/6 ~ 1/30 | 19.6 |
| 1/50 ~ 1/100 | 22.6 |
| 1/120 ~ 1/300 | 25.9 |
| 1/360 ~ 1/900 | 29 |
