Home > Electrical & Electronics > Electric Motor > DC Motor > 12V 24v OD 92mm 170 Rpm High Quality High Torque Low Speed DC Planetary Reduction Gear Motor for Solar Tracker EMM537E

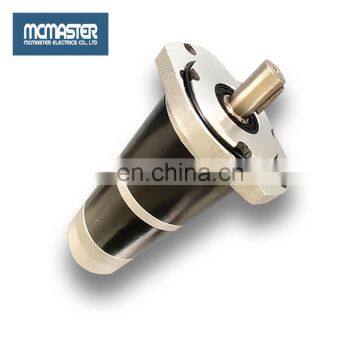

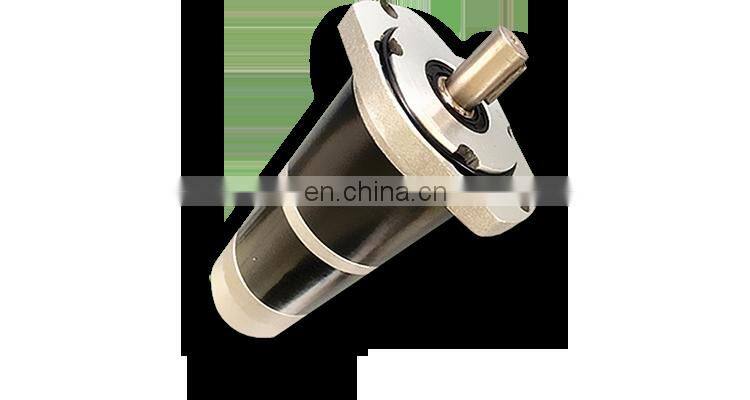

12V 24v OD 92mm 170 Rpm High Quality High Torque Low Speed DC Planetary Reduction Gear Motor for Solar Tracker EMM537E
US$ 186 - 325
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
McMaster
Place of Origin:
Jiangsu, China
Model Number:
EMM537E
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24V 65W DC Reducer Motor With Gearbox Low Rpm DC Gear Motor BMM227MUS$ 53 - 75MOQ: 2 Pieces -
24V High Torque Low RPM Brushless DC Worm Gear Motor for Cultivator E207MUS$ 110 - 160MOQ: 2 Pieces
-
OD 27mm 2W DC Motor With Gearbox 3V 12V 24V High Torque Low Rpm DC Gear Motor BMM426MUS$ 3 - 5MOQ: 2 Pieces
-
24V 200W High Torque Geared DC Motor With Gearbox Low Rpm DC Gear Motor for Ball Collector E216MUS$ 14 - 22MOQ: 2 Pieces
-
24V 16W Reducer Motor With Gearbox Low Rpm DC Gear Motor BMM217MUS$ 14 - 22MOQ: 2 Pieces
Brand Name
McMaster
Place of Origin
Jiangsu, China
Model Number
EMM537E
Type
Gear Motor
Certification
CCC, ROHS
Torque
7.3 N.m
Usage
Boat, Car, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 2
Protect Feature
Totally Enclosed
Continuous Current(A)
9 A
Speed(RPM)
170 rpm
Commutation
Brush
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
|
VOLTAGE (V) |
NO LOAD |
RATED LOAD |
Torque (N.m) |
RATIO |
STAGE |
Power (W) |
LENGTH (mm) |
|||
|
CURRENT (A) |
SPEED (r/min) |
CURRENT (A) |
SPEED (r/min) |
|||||||
|
EMM537 |
24 |
1.73 |
201 |
9.35 |
167 |
7.3 |
18 |
2 |
127 |
200 |
|
Voltage (VDC) |
No Load |
Rated Load |
Moment of Inertia (Kg.cm2) |
EMF constant (V/rpm) |
torque constant (N.m/A) |
Length (mm) |
||
|
Current(A) |
Speed(r/min) |
Current(A) |
Speed(r/min) |
|||||
|
24 |
1.40 |
3614 |
9.35 |
3000 |
0.116 | 0.0065887 | 0.0629 | 124 |
