Water Pressure Test Ductile Iron Pipe

Water Pressure Test Ductile Iron Pipe photo-1
US$ 500 - 1,000 MOQ: 5 Tons
Key Specifications
Get Latest Price
Brand Name:
SYI
Place of Origin:
Shanxi, China
Model Number:
Tyton
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang/Lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Brand Name SYI
Place of Origin Shanxi, China
Model Number Tyton
Shape Round
Diameter DN80-1800mm
Length 6M or as per your requirements
Application Industrial Pipeline
Standard ISO2531/EN545/EN598, ISO2531/EN545/EN598
Hardness 230HB
Pull Strength 420Mpa
Pipe Wall Thickness K7/K8/K9/C40/C30/C25

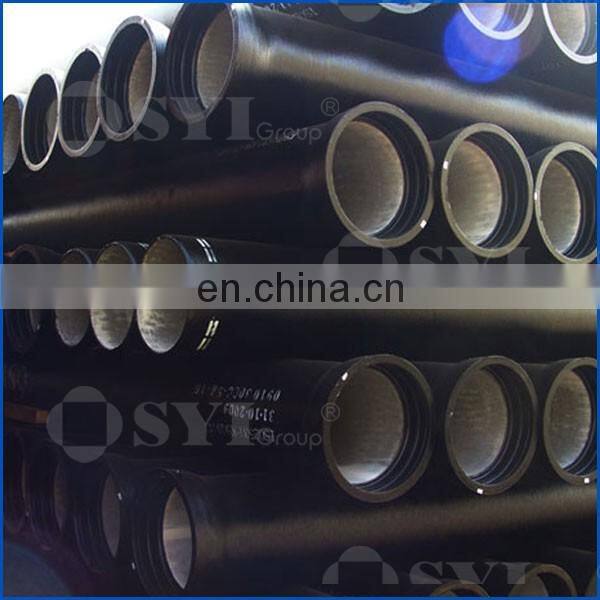

Product Description of Ductile Iron Pipe



water pressure test ductile iron pipe

                                                                                  ductile iron pipe

Ductile iron pipes are widely used for drinking water supply/transmission both government and privates sectors.The product detailed informations are as following:



a.Ductile iron pipes standard: ISO2531-1998,BSEN545-2006



b.Effective length: 6M for 40' container, 5.7M for 20' container.



c.Pipe ends: Spigot and socket ends, with 100% SBR gaskets.



d.Internal coating: cement mortar lining comply with ISO4179.



e.External coating: sprayed metallic Zinc coating (min.130g/m2)according to ISO8179 + bitumen painting (min.70micron).

                           water pressure test ductile iron pipe







water pressure test ductile iron pipe

DN DE1 Iron wall thickness,e, K9
 80  98  6
 100 118 6
125  144  6
150  170   6
 200  222  6.3
 250  274  6.8
 300  326  7.2
 350  378  7.7
 400  429  8.1
 450  480  8.6
 500  532  9
 600  635  9.9
 700  738  10.8
 800  842  11.7
 900  945  12.6
 1000  1048  13.5
 1100  1152  14.4
 1200  1255  15.3
 1400  1462  17.1
 1500  1565  18
 1600  1668  18.9
 1800  1875  20.7
 2000  2082  22.5
 2200  2288  24.3
 2400  2495  26.1
 2600  2702  27.9



  1) A tolerance of + 1 mm applies.

  For Other Class (K7,K8,K10,K12) and Other Joint Type (Restrained Joint), please consult us.

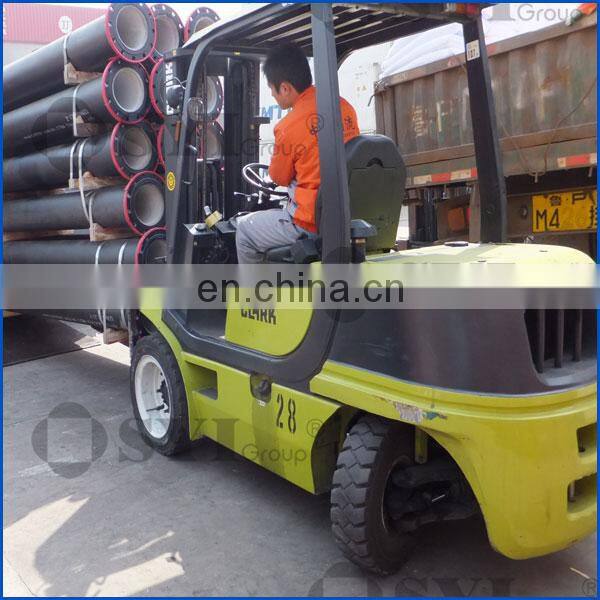

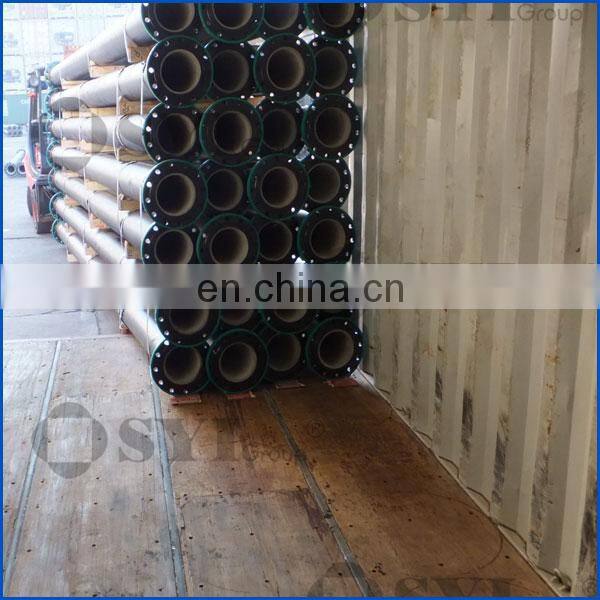

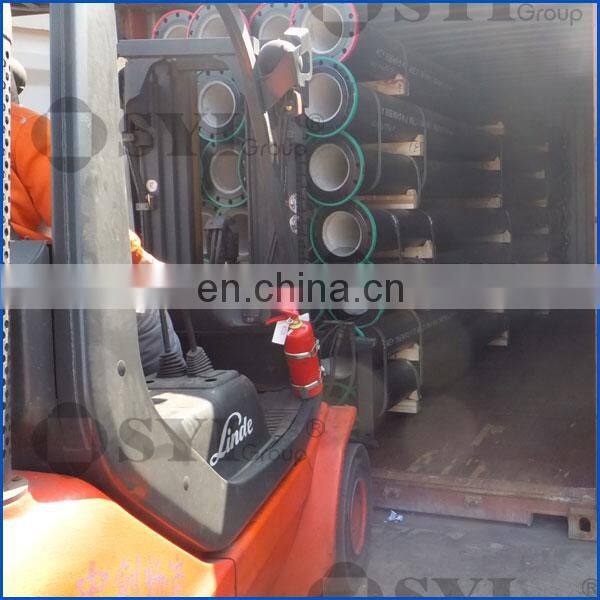

Packaging and Shipping of Our Ductile Iron Pipe

Packaging:Bunches with steel belt/in bulk or as per clients' requirements

Shipping:25-30 days, depends on actual quantity

  water pressure test ductile iron pipewater pressure test ductile iron pipewater pressure test ductile iron pipe




Factory Show

water pressure test ductile iron pipe

Ductile Iron Pipe

water pressure test ductile iron pipe

water pressure test ductile iron pipe

Ductile Iron Pipe

water pressure test ductile iron pipe

Ductile Iron Pipe

water pressure test ductile iron pipe

Ductile Iron Pipe

water pressure test ductile iron pipe

Ductile Iron Pipe



Certification



More certification ... (Contact us!)

 If you need to know more about  Ductile Iron Pipe, please contact us.
