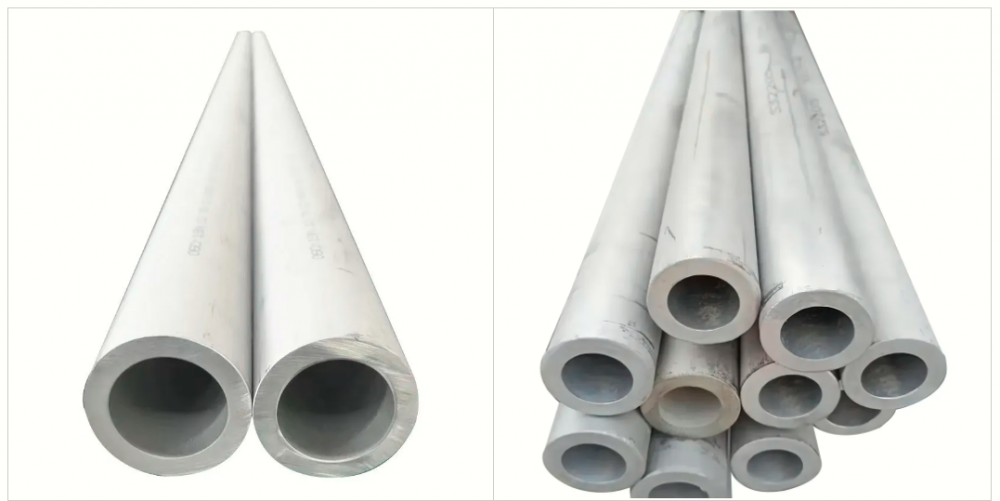

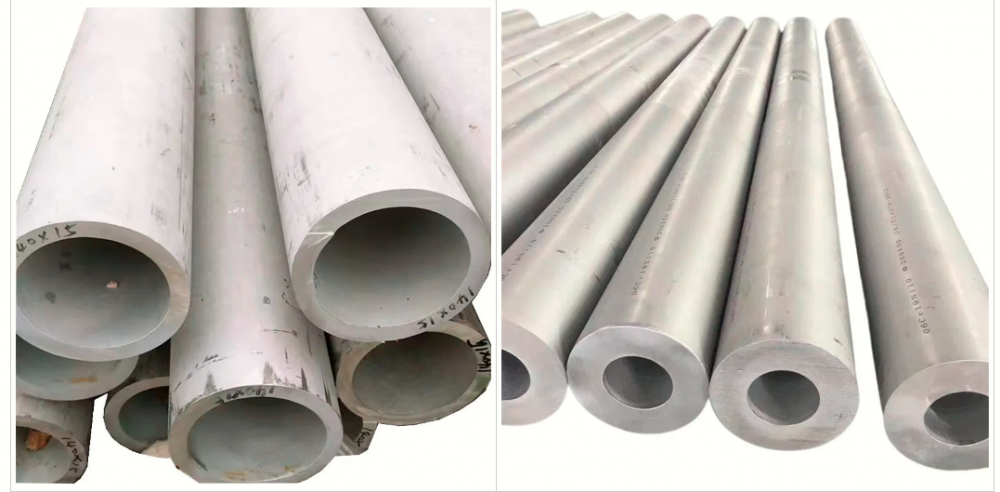

630 Stainless Steel Seamless Tubing - Product Information

*(UNS S17400 / 17-4PH Precipitation-Hardening Stainless Steel)*

630 Seamless Tubing is a martensitic precipitation-hardening stainless steel offering exceptional strength, corrosion resistance, and machinability. The "630" designation (per AMS/UNS) is synonymous with 17-4PH. Supplied in solution-annealed Condition A, it achieves high mechanical properties via low-temperature aging heat treatment (e.g., H900, H1150). Ideal for high-stress, corrosive, and moderate-temperature applications where standard austenitic steels (304/316) lack sufficient strength.

• Density: 0.282 lb/in³ (7.80 g/cm³)

• Melting Point: 2560-2625°F (1400-1440°C)

• Magnetic Response: Yes (martensitic structure)

• Thermal Conductivity: 14.4 BTU·ft/hr·ft²·°F (24.9 W/m·K)

• Corrosion Resistance: Comparable to 304 stainless; resistant to acids, freshwater, steam, and petroleum.

• Standard: Bundled with plastic/corrugated wrapping, wood-crated or palletized.

• Protection: PVC end caps, VCI (vapor corrosion inhibitor) paper for long-term storage.

• Labeling: Heat number, size, temper, quantity, and compliance marks (RoHS/REACH).

• Cutting: Precision saw, abrasive waterjet, or laser cutting.

• Heat Treatment: Custom aging (H900 to H1150M) for target strength/toughness.

• Machining: CNC turning, milling, threading, grooving.

• Surface Treatment: Passivation, electropolishing, bead blasting.

• Testing: Eddy current (ECT), hydrostatic, ultrasonic (UT), PMI (positive material identification).

• Welding: TIG/GTAW with ER630 filler wire.

630 seamless tubing is critical in high-performance sectors:

• Aerospace: Landing gear, actuator cylinders, hydraulic lines.

• Oil & Gas: Downhole tools, valve stems, chemical injection tubing.

• Medical: Surgical instruments, implantable device components (biocompatible grades available).

• Power Generation: Turbine blades, heat exchanger tubes.

• Industrial: Hydraulic/pneumatic cylinders, bearings, nuclear waste containers.

• Marine: Propeller shafts, subsea fittings.

• Mill Test Reports (MTRs) per EN 10204 3.1/3.2.

• Compliance: NACE MR0175, ASTM A262, AMS 5643.

• Certifications: ISO 9001, AS9100, PED 2014/68/EU (upon request).
