Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Best Price PVC Cover Stranded /Flex Copper Ininsulated Electric Conductor for Home
Best Price PVC Cover Stranded /Flex Copper Ininsulated Electric Conductor for Home
US$ 0.1 - 0.1
MOQ: 100 Meters
Key Specifications
Get Latest Price
Brand Name:
JZD
Place of Origin:
Guangdong, China
Model Number:
BVR
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Earth Yellow Green Wire 35mm2 35mm 50mm2 50mm Copper Ground Earth CableUS$ 0.35 - 5MOQ: 100 Meters -
China Factory Electrical Cable Flexible Wire Cyky Cable 2.5mm 4mmUS$ 0.3 - 5MOQ: 100 Meters
-
Wholesale Flexible 1.5mm/2.5mm Solid and Stranlectrical Wire PVC Insulated Wire and CableUS$ 0.3 - 5MOQ: 100 Meters
-
2mm Thickness Single Copper Wire /soild WireUS$ 0.24 - 0.24MOQ: 100 Meters
-
2mm Thickness Single Copper Wire /soild WireUS$ 0.24 - 0.24MOQ: 100 Meters
Brand Name
JZD
Place of Origin
Guangdong, China
Model Number
BVR
Type
Insulated
Application
Other
Insulation Material
PVC
Conductor Material
Copper
Product Description
- Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012 - Main of cables features
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
- Application:
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, householdelectrical applance,insurment and telecommunication equipment.
| Nominal section(mm²) | Number of conductors | Toplimit of overall diameter(mm) | Maximum DC resistance(20℃)(Ω/km) | Minimum insulation resistance(70℃)(MΩ.km) | Recommended value of carrying capacity(A) | Reference weight(kg/kmm) |
| 2.5 | 19 | 4.1 | 7.41 | 0.011 | 34 | 32 |
| 4 | 19 | 4.8 | 4.61 | 0.009 | 44 | 48 |
| 6 | 19 | 5.3 | 3.08 | 0.0084 | 58 | 67 |
| 10 | 49 | 7.3 | 1.83 | 0.0072 | 79 | 117 |
| 16 | 49 | 8.6 | 1.15 | 0.0062 | 111 | 173 |
| 25 | 98 | 10.2 | 0.727 | 0.0058 | 146 | 272 |
| 35 | 133 | 11.7 | 0.524 | 0.0052 | 180 | 363 |
| 50 | 133 | 13.9 | 0.387 | 0.0051 | 228 | 488 |
| 70 | 189 | 16.0 | 0.268 | 0.0045 | 281 | 682 |
| 95 | 259 | 1.6 | 18.2 | 0.193 | 344 | 944 |
| 120 | 259 | 1.6 | 19.8 | 0.153 | 397 | 1167 |
| 150 | 336 | 1.8 | 22.2 | 0.124 | 456 | 1453 |
| 135 | 427 | 2.0 | 24.6 | 0.0991 | 519 | 1809 |

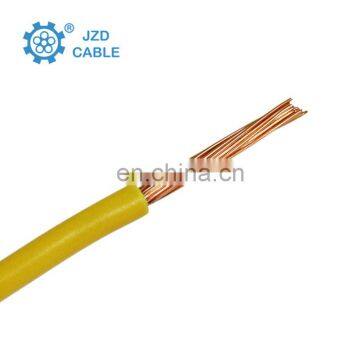

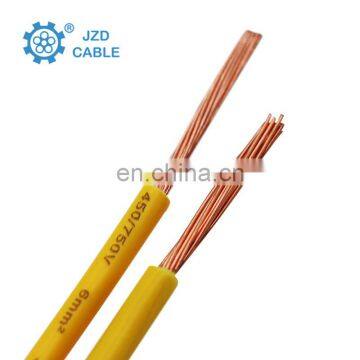

Product Pictures
