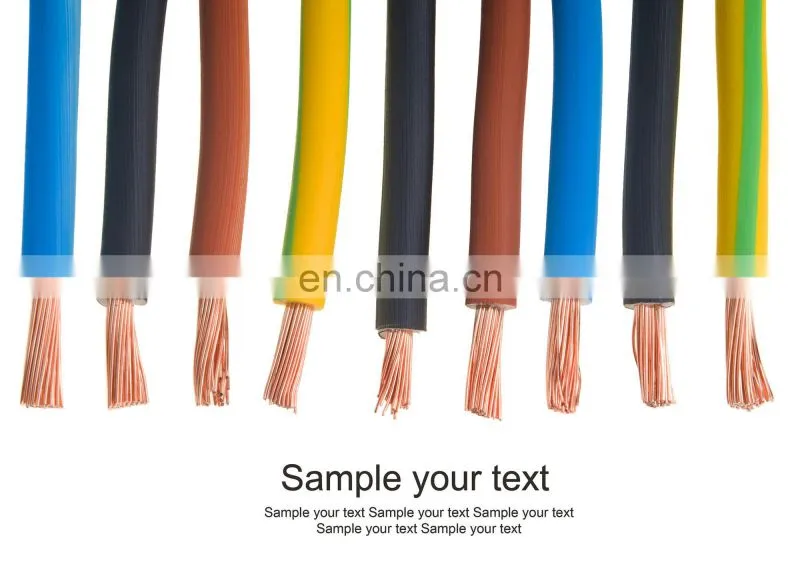

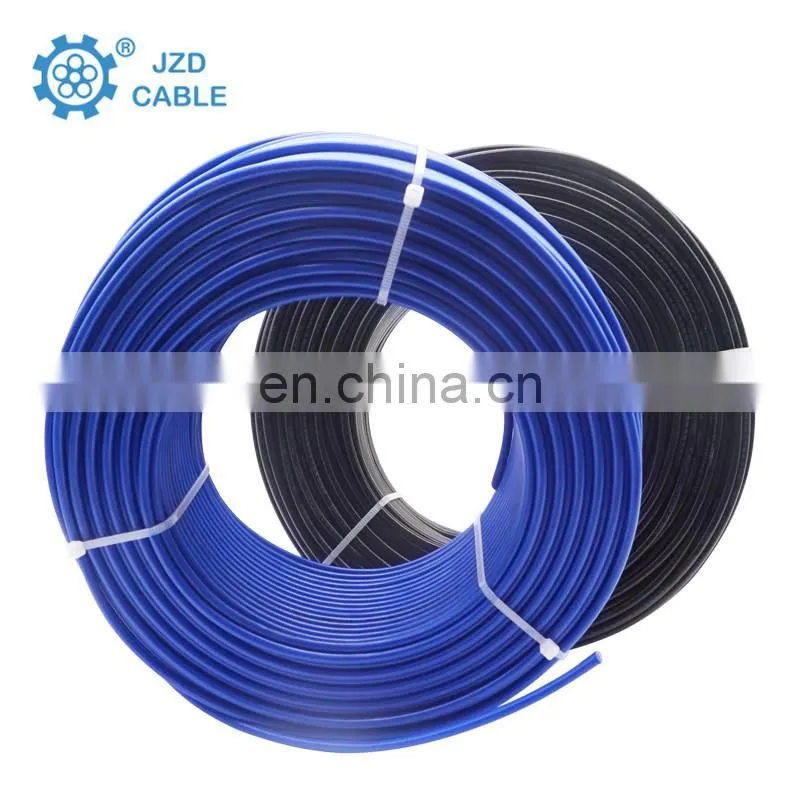

Earth Yellow Green Wire 35mm2 35mm 50mm2 50mm Copper Ground Earth Cable
US$ 0.35 - 5
MOQ: 100 Meters
Key Specifications
Get Latest Price
Brand Name:
JZD
Place of Origin:
China
Model Number:
BV BVV BVR
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Factory Electrical Cable Flexible Wire Cyky Cable 2.5mm 4mmUS$ 0.3 - 5MOQ: 100 Meters -
Wholesale Flexible 1.5mm/2.5mm Solid and Stranlectrical Wire PVC Insulated Wire and CableUS$ 0.3 - 5MOQ: 100 Meters
-
2mm Thickness Single Copper Wire /soild WireUS$ 0.24 - 0.24MOQ: 100 Meters
-
2mm Thickness Single Copper Wire /soild WireUS$ 0.24 - 0.24MOQ: 100 Meters
-
1.5 mm Solid Single Copper Wire With Pvc Cable With Best Quality and Low PriceUS$ 0.3 - 5MOQ: 100 Meters
Brand Name
JZD
Place of Origin
China
Model Number
BV BVV BVR
Type
Insulated
Insulation Material
PVC
Conductor Material
Copper
Conductor Type
Stranded
Product Description
Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
Main of cables features
1. Uo/U is 450/750V,300/500,
2. Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃;the
allowable temperature of other models should not exceed 70℃.
Application: Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power plant,household electrical applance,insurment
and telecommunication equipment.
| Nominal section | Number/diameter of core | Maximum outer diameter | Reference weight | Conductor resistance at 20°C | ||
| (mm2) | (mm) | (mm2) | (Kg/km) | ≤(Ω/km) | ||
| copper | aluminum | aluminum | copper | |||
| 1.5(A) | 1/1.38 | 3.3 | 20.3 | ----- | ----- | 12.1 |
| 1.5(B) | 7/0.52 | 3.5 | 21.6 | ----- | ----- | 12.1 |
| 2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.8 | 7.41 |
| 2.5(B) | 7/0.68 | 4.2 | 34.8 | ----- | ----- | 7.41 |
| 4(A) | 1/2.25 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
| 4(B) | 7/0.85 | 4.8 | 50.3 | ------ | ----- | 4.61 |
| 6(A) | 1/2.76 | 4.9 | 65 | 29 | 4.91 | 3.08 |
| 6(B) | 7/1.04 | 5.4 | 71.2 | ---- | ---- | 3.08 |
| 10 | 7/1.35 | 7 | 119 | 62 | 3.08 | 1.83 |
| 16 | 7/1.70 | 8 | 179 | 78 | 1.91 | 1.15 |
| 25 | 7/2.04 | 10 | 281 | 118 | 1.2 | 0.727 |
| 35 | 7/2.52 | 11.5 | 381 | 156 | 0.868 | 0.524 |
| 50 | 19/1.78 | 13 | 521 | 215 | 0.641 | 0.387 |
| 70 | 19/2.14 | 15 | 734 | 282 | 0.443 | 0.268 |
| 95 | 19/2.52 | 17.5 | 962 | 385 | 0.32 | 0.193 |
| 120 | 37/2.03 | 19 | 1180 | 431 | 0.253 | 0.153 |
| 150 | 37/2.25 | 21 | 1470 | 539 | 0.206 | 0.124 |
| 185 | 37/2.52 | 23.5 | 1810 | 666 | 0.164 | 0.0991 |
| 240 | 61/2.25 | 26.5 | 2350 | 857 | 0.125 | 0.0754 |
