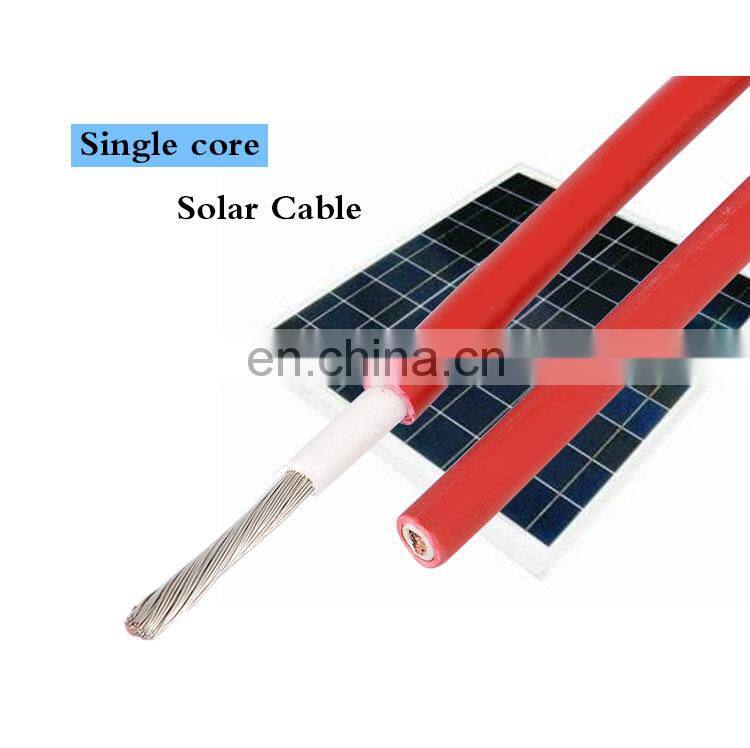

Professional 4mm 6mm pv Solar Cable With Great Price
US$ 0.5 - 0.6
/ Meter
1000 Meters(Min. Order)
- SHEN ZHEN
- T/T Credit Card
You May Like
-
Battery dc Tuv Red 4mm2 6mm2 Solar Panel Cable
-
Battery dc Tuv Red 4mm2 6mm2 8mm2 10mm2 Flexible Solar Cable for Solar Panel
-
High Quality 1.5mm2 2 Awg Xlpe Insulated Electrical Power Cable Wire dc Solar Cable for Solar Panel
-
2 Core 1.5 2.5 sq mm Cable ac Flexible Solar Cable
-
2core 1.5mm 4mm 6mm 10mm 16mm Xlpe Insulated Copper Solar Cable Price per Meter
-

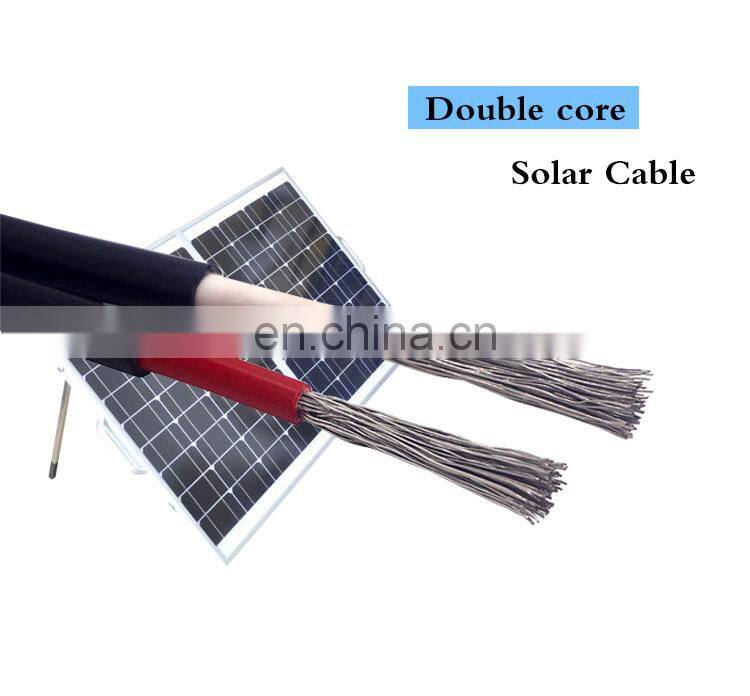

PV1-F 1000V Twin Single Core 4mm2 DC Flexible Solar Cable
Product Details
| Brand Name | JZD | Place of Origin | China | |
| Model Number | solar cable | Type | Low Voltage | |
| Application | Power Station | Insulation Material | XLPE | |
| Jacket | PVC | Conductor Material | Copper |
Product Description
Product Description
Product features
Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical
1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.

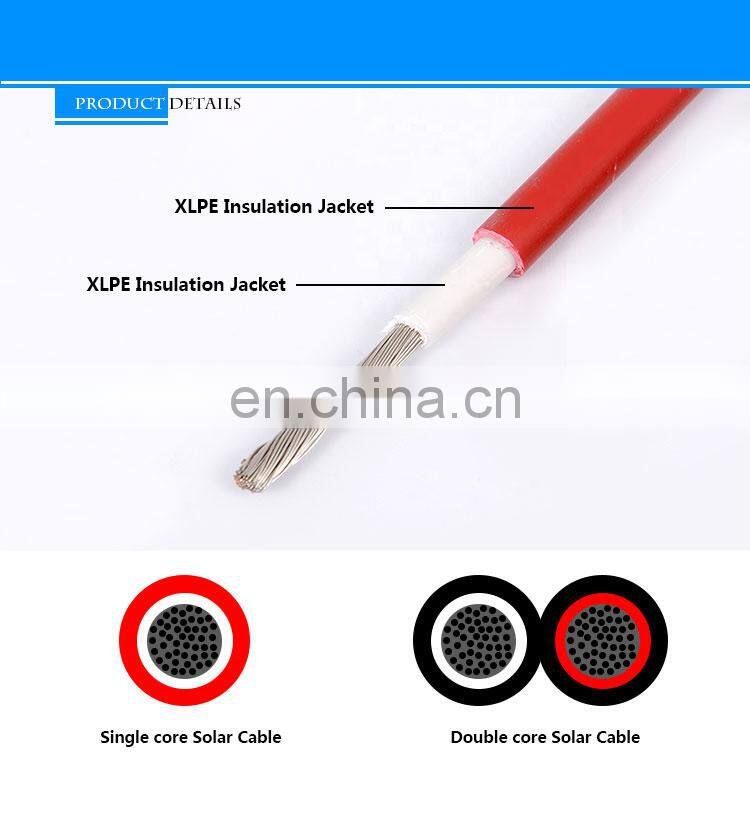

Cable structure
Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² 2 PV1 - F
18, 16 and 14, 12, 10, 8, 6, 4, 2 mm² PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
parameters
Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.
| TYPE | Cross section | Wire struct | Conductor diameter | Outer diameter | Conductor resistance | Rated voltage | Rated current |
| mm2 | No.OD(mm) | mm | mm | Ω/Km | V AC/DC | A | |
| 1x2.5mm² | 2.5 | 48x0.25 | 2.0 | 5.2 | 8.06 | 1000/1800 | 30 |
| 1x4.0mm² | 4.0 | 56x0.30 | 2.6 | 6.4 | 4.97 | 1000/1800 | 50 |
| 1x6.0mm² | 6.0 | 81x0.30 | 3.3 | 7.2 | 3.52 | 1000/1800 | 70 |
| 1x10mm² | 10 | 74x0.40 | 4.4 | 8.3 | 2.12 | 1000/1800 | 95 |
| 2x2.5mm² | 2.5 | 48x0.25 | 2.0 | 6.2x9.9 | 8.06 | 1000/1800 | 30 |
| 2x4.0mm² | 4 | 56x0.30 | 2.6 | 6.9x11.30 | 4.79 | 1000/1800 | 50 |
| 2x6.0mm² | 6.0 | 81x0.30 | 3.3 | 7.1x14.50 | 3.52 | 1000/1800 | 70 |

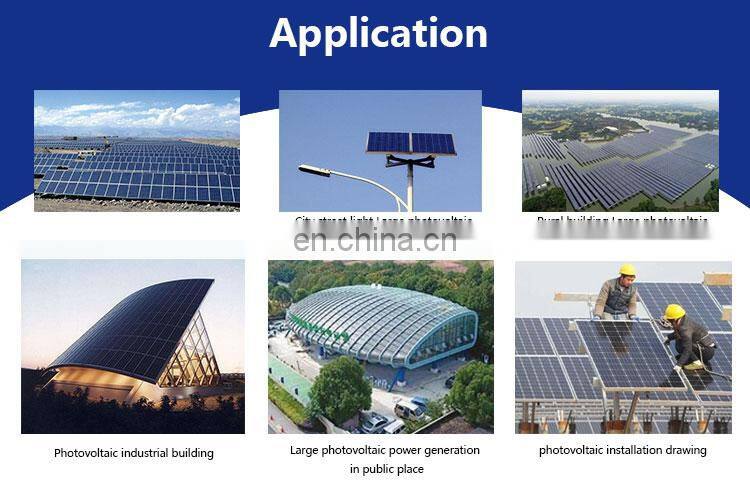

Application
More products
Packaging & Shipping
Company Information
Certifications
Our customers are located all over the world including China, Singapore, Malaysia, Indonesia, Korea, India, USA and many countries in Europe as well as Africa and South America.
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
