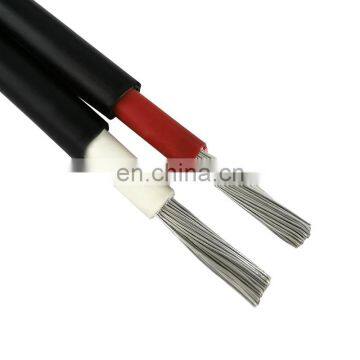

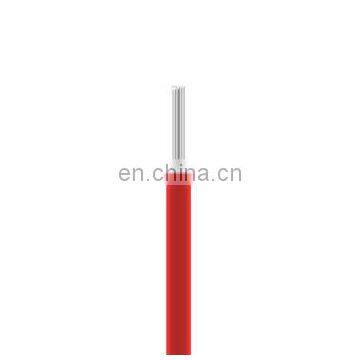

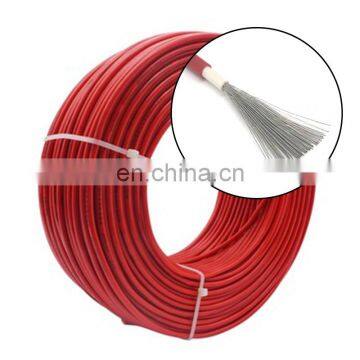

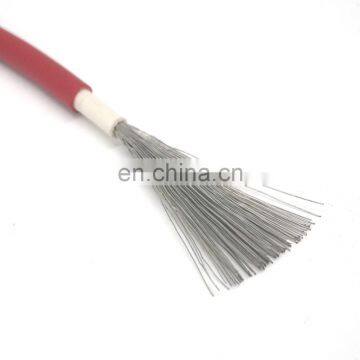

High Quality Standard 1000V DC TUV Waterproof XLPE Double Insulation 4mm 12AWG Solar PV Cable
US$ 0.4 - 1
MOQ: 100 Meters
Key Specifications
Get Latest Price
Brand Name:
JZD
Place of Origin:
Guangdong, China
Model Number:
solar cable
Payment & Shipping
Payment Methods:
Port of Shipment:
SHEN ZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multi Tinned Copper Core Pvc Cable Wire Solar Cable 6mm Electrical Cable WireUS$ 0.3 - 0.5MOQ: 100 Meters -
DC System PV Solar Cable 4mm 6mm Twin Core Xlpe Insulated Tinned Copper Solar Cable Price Per MeterUS$ 0.7 - 0.7MOQ: 1000 Meters
-
High Quality TUV dc Power Cable Pv1 f Solar Cable 4mm for Solar PanelUS$ 0.4 - 1MOQ: 100 Meters
-
Shenzhen Manufacture Solar dc Wire & Cable pv Solar Cable 10MM2 Dual CoreUS$ 0.4 - 1MOQ: 100 Meters
-
1000V 1500V DC Single Twin Core Solar Panel Extension Cable TUV PV Solar Cable 6mm 1000mUS$ 0.4 - 1MOQ: 100 Meters
Brand Name
JZD
Place of Origin
Guangdong, China
Model Number
solar cable
Type
Low Voltage
Insulation Material
XLPE
Jacket
PVC
Conductor Material
Copper
Product Description
Product features
Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical
1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure
Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² 2 PV1 - F
18, 16 and 14, 12, 10, 8, 6, 4, 2 mm² PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
parameters
Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.
