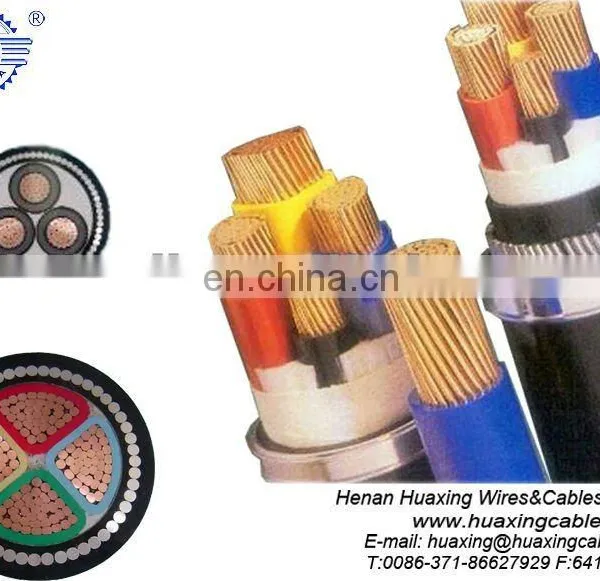

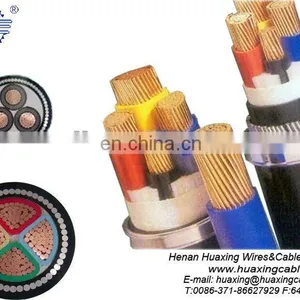

copper armoured cable with competitive price
1) Copper (aluminium) conductor PVC insulated wires (BV)
2) Copper conductor PVC insulated flexible wires (BVR)
3) Copper (aluminium) conductor PVC insulated PVC sheathed round wires
4) Copper (aluminium) conductor PVC insulated PVC sheathed flat wires
5) Copper conductor PVC insulated flat and flexible connectors
6) Copper conductor PVC insulated PVC sheathed round and flexible connectors
Size: 0.5-185 mm2
Usage:
This prodcut is widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects.
The product is produced against IEC60502 and IEC60331, . And the product can be produced against the standard of BS, DN, and the standard required by the clients.
1. The long-term permissible operation temperature of the conductor shall not be higher than 70
2. The max temperature of the conductor of cable should less then 160 when short circuit. (less then 5 second)
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance
5. Light weight, perfect bending properties, installed and maintained easily and conveniently
6 Rated voltage: 0.6/1kV, 3.6/6kV
Type | Name | Usage |
VV | PVC insulated PVC sheathed power cable | Can be laid at indoor, tunnel and tube .Cable cannot under take mechanism outside force |
VLV | ||
VY | PVC insulated and PE sheathed power cable | Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
VLY | ||
| PVC insulated steel belt armored and PVC sheathed power cable | Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force |
VLV22 | ||
VV23 | PVC insulated steel belt armored and PE sheathed power cable | Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
VLV23 | ||
VV32 | PVC insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground and mining well .Cable can undertake mechanism outside force |
VLV32 | ||
VV33 | PVC insulated fine steel wire armored PE sheathed power cable | Can be laid at indoor, underground .Cable can under take mechanism outside force |
VLV33 | ||
VV42 | PVC insulated thick steel wire armored PE sheathed power cable | Can be laid at indoor, underground,mining well .Cable can under take mechanism outside force |
VLV42 | ||
VV43 | PVC insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground ,mining well and the places of be terrible polluted. Cable can under take mechanism outside force |
MOQ, Capacity& Payment method
For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.
Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight
If you are interested in our products, you may contact with me at any time. TKS!
